AZ31B AZ61 AZ80 AZ91 AM60 magnesium alloy slab 360x1100x2500mm cut to size good strength
Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium alloy block, magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm

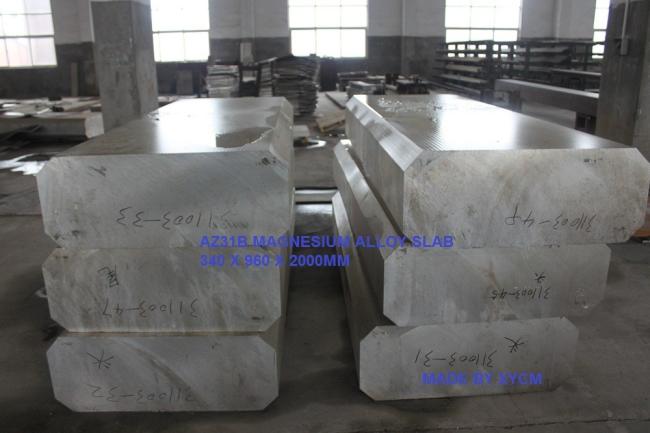

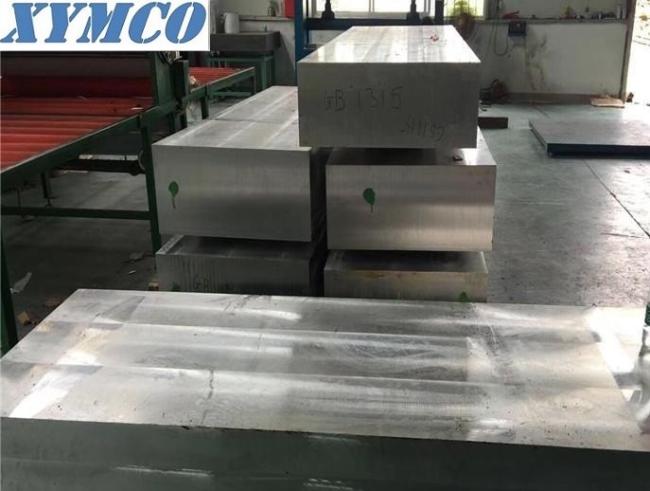

2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
The specifications and alloy grades which XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can be complied with are as following Table:
| DESCRIPTION |
ASTM Alloy Designation & Temper |
ASTM | FEDERAL | AMS | ||
| AZ31B | Sheet - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | |
| Sheet - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | ||
| Plate - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate- three quarters hard | AZ31B-H26 | B90 | QQ-M-44B | 4376 | ||
| Plate - Extra flat | AZ31B-O | -- | 4382 | |||
| Extruded bars & sections | AZ31B-F | B107 | QQ-M-31B | - | ||
| AZ61A | Extruded bas & sections & forging stock | AZ61A-F | B107 | QQ-M-31B | 4350 | |
| Extruded tube | AZ61A-F | B107 | WW-T-825B | - | ||
| Forgings | AZ61A-F | B91 | QQ-M-40B | - | ||
| AZ80A |
Extruded bars & sections |
precipitation treated | AZ80A-T5 | B107 | QQ-M-31B | - |
| As-extruded | AZ80A-F | B91 | QQ-M-31B | - | ||
| Forgings | precipitation treated | AZ80A-T5 | B91 | QQ-M-40B | 4360 | |
| As-extruded | AZ80A-F | B91 | QQ-M-40B | |||
| ZK60A |
Extruded bars & sections |
precipitation treated | ZK60A-T5 | B107 | QQ-M-31B | 4352 |
| As-extruded | ZK60A-F | B107 | QQ-M-31B | - | ||
| Forgings | precipitation treated | ZK60A-T5 | B91 | QQ-M-40B | 4362 | |
| As-extruded | ZK60A-F | B91 | QQ-M-40B | - | ||
| Magnesium Alloy Castings | AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41 | |||||
Magnesium-Rare Earth Master Alloy (Mg-RE alloy)
| Item Code | Product | Formula | Typical Type |
| Mg-RE10 | Magnesium-Scandium | Mg-Sc | Mg-2%Sc,Mg-5%Sc, Mg-10%Sc |
| Mg-RE20 | Magnesium-Yttrium | Mg-Y | Mg-5%Y, Mg-10%Y, Mg-15%Y, Mg-20%Y, Mg-25%Y, Mg-30%Y,Mg-35%Y |
| Mg-RE21 | Magnesium-Lanthanum | Mg-La | Mg-5%La, Mg-10%La, Mg-15%La, Mg-20%La, Mg-25%La, Mg-30%La |
| Mg-RE30 | Magnesium-Cerium | Mg-Ce | Mg-5%Ce, Mg-10%Ce, Mg-15%Ce, Mg-20%Ce, Mg-25%Ce, Mg-30%Ce |
| Mg-RE35 | Magnesium-Praseodymium | Mg-Pr | Mg-5%Pr, Mg-10%Pr, Mg-15%Pr, Mg-20%Pr, Mg-25%Pr, Mg-30%Pr |
| Mg-RE41 | Magnesium-Neodymium | Mg-Nd | Mg-15%Nd,Mg-25%Nd, Mg-30%Nd,Mg-35%Nd |
| Mg-RE50 | Magnesium-Samarium | Mg-Sm | Mg-5%Sm, Mg-10%Sm, Mg-15%Sm, Mg-20%Sm, Mg-25%Sm, Mg-30%Sm |
|
Mg-RE60
|
Magnesium-Europium | Mg-Eu | Mg-5%Eu, Mg-10%Eu, Mg-15%Eu, Mg-20%Eu, Mg-25%Eu, Mg-30%Eu |
|
Mg-RE61
|
Magnesium-Gadolinium | Mg-Gd | Mg-5%Gd, Mg-10%Gd, Mg-15%Gd, Mg-20%Gd, Mg-25%Gd, Mg-30%Gd |
|
Mg-RE62
|
Magnesium-Terbium | Mg-Tb | Mg-5%Tb, Mg-10%Tb, Mg-15%Tb, Mg-20%Tb, Mg-25%Tb, Mg-30%Tb |
|
Mg-RE80
|
Magnesium-Dysprosium | Mg-Dy | Mg-5%Dy, Mg-10%Dy, Mg-15%Dy, Mg-20%Dy, Mg-25%Dy, Mg-30%Dy |
|
Mg-RE81
|
Magnesium-Holmium | Mg-Ho | Mg-5%Ho, Mg-10%Ho, Mg-15%Ho, Mg-20%Ho, Mg-25%Ho, Mg-30%Ho |
|
Mg-RE91
|
Magnesium-Erbium | Mg-Er | Mg-5%Er, Mg-10%Er, Mg-15%Er, Mg-20%Er, Mg-25%Er, Mg-30%Er |
|
Mg-RE92
|
Magnesium-Thulium | Mg-Tm | Mg-5%Tm, Mg-10%Tm, Mg-15%Tm, Mg-20%Tm, Mg-25%Tm, Mg-30%Tm |
|
Mg-RE93
|
Magnesium-Ytterbium | Mg-Yb | Mg-5%Yb, Mg-10%Yb, Mg-15%Yb, Mg-20%Yb, Mg-25%Yb, Mg-30%Yb |
|
Mg-RE94
|
Magnesium-Lutetium | Mg-Lu | Mg-5%Lu, Mg-10%Lu, Mg-15%Lu, Mg-20%Lu, Mg-25%Lu, Mg-30%Lu |
Magnesium Master Alloy Ingot
Application: As the master alloy, magnesium alloy can be used in the Automobile, Electronics, Aerospace and Military industry.
| Item Code | Product | Formula | Typical Type |
| Mg-Ca | Magnesium-Calcium | Mg-Ca | Mg-10%Ca, Mg-20%Ca |
| Mg-Mn | Magnesium-Manganese | Mg-Mn | Mg-5%Mn, Mg-10%Mn |
| Mg-Zr | Magnesium-Zirconium | Mg-Zr | Mg-25%Zr, Mg-30%Zr, Mg-35%Zr |
| Mg-Ti | Magnesium-Titanium | Mg-Ti | Mg-10%Ti, Mg-20%Ti |
| Mg-Co | Magnesium-Cobalt | Mg-Co | Mg-5% Co, Mg-15%Co |
| Mg-Si | Magnesium-Silicon | Mg-Si | Mg-10%Si, Mg-25%Si |
| Mg-V | Magnesium-Vanadium | Mg-V | Mg-10%V, Mg-20%V |
| Mg-Fe | Magnesium-Iron | Mg-Fe | Mg-25%Fe, Mg-35%Fe |
| Mg-Zn | Magnesium-Zinc | Mg-Zn | Mg-15%Zn, Mg-25%Zn, Mg-35%Zn |
| Mg-Ni | Magnesium-Nickel | Mg-Ni | Mg-10%Ni, Mg-15%Ni, Mg-25%Ni |
| Mg-Al-Sc | Mag-Al-Scandium | Mg-Al-Sc | Mg-15%Al-20Sc |
| Mg-Cu | Magnesium-Copper | Mg-Cu | Mg-15%Cu, Mg-25%Cu |
| Mg-Y-Ni | Mag-Yttrium-nickel | Mg-Y-Ni | Mg-8%Y-15%Ni |
| Mg-Al-Zn | Mg-Al-Zn | Mg-Al-Zn | Mg-10%Al-3%Zn |
| Mg-Li | Magnesium-Lithium | Mg-Li | Mg-10%Li, Mg-25%Li |
