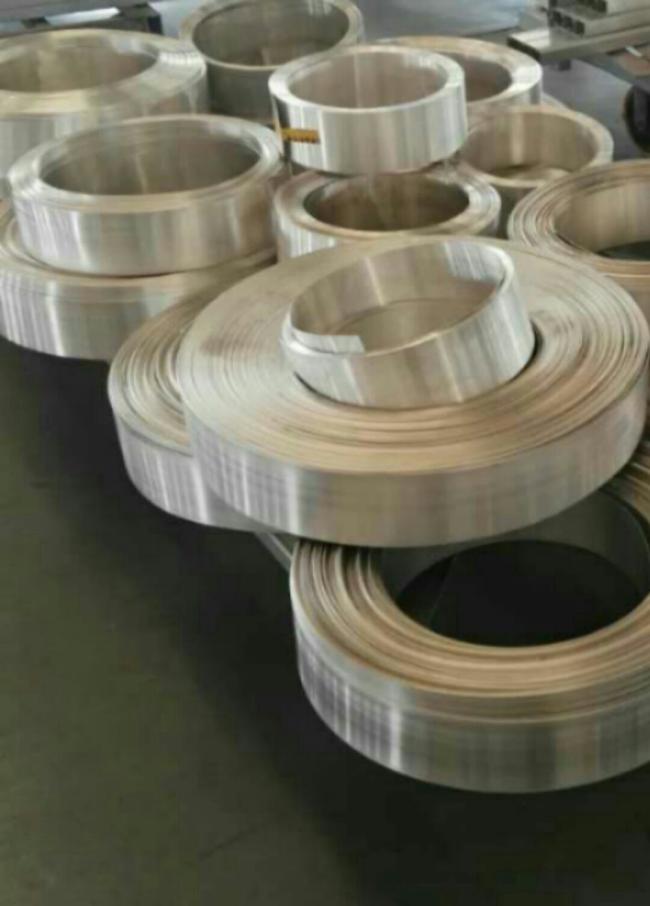

AZ61 AZ61A AZ61A-F Magnesium Metal Ribbon Extruding
AZ61 AZ61A AZ61A-F Magnesium Metal Ribbon Extruding
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
MECHANICAL PROPERTIES
| Alloy and Temper | Thickness (mm) |
Yield Strength 0.2% offset (MPa) |
Tensile strength (MPa) |
Elongation In 5.65 √A (%) |
| AZ31B-O | 0.5 – 1.5 | 125 | 221 | 10 |
| 1.5 – 6.3 | 105 | 221 | 9 | |
| 6.3 - 75 | 105 | 221 | 8 | |
| AZ31B-H24 | 0.5 – 6.3 | 200 | 269 | 5 |
| 6.3 -9.5 | 179 | 262 | 7 | |
| 9.5 – 12.7 | 165 | 255 | 8 | |
| 12.7 - 25 | 152 | 248 | 8 | |
| 25- 50 | 138 | 234 | 6 | |
| 50 - 80 | 124 | 234 | 7 | |
| AZ31B-H26 | 6.3 - 10 | 186 | 269 | 6 |
| 10 – 12.5 | 179 | 262 | 6 | |
| 12.5 - 20 | 172 | 255 | 5 | |
| 20 – 25 | 159 | 255 | 5 | |
| 25 - 40 | 152 | 241 | 5 | |
| 40 - 50 | 148 | 241 | 5 |
Magnesium plate has good carving processing performance.
Because of its outstanding characteristics of magnesium plate engraving of low density, high specific stiffness, good damping property, environment friendly and no pollution, Recyclable good performance, known as the twenty-first Century green metal structure material. The magnesium plate engraving and mechanical processing of parts, in national defense, aerospace, electronic communication, rail transportation, medical equipment, printing plate, magnesium board carving mold and other fields, and has wide application prospect.
Our Advantage
The feed speed engraving cutter can be improved more than 6 times; material removal rate can be increased by 5-6 times;
Magnesium aluminum plate surface roughness is greatly increased, up to 10 μ m;
Generally, carving cutting resistance magnesium plate to reduce the 1/3;
Magnesium plate engraving after hot deformation is low, can limit the work hardening;
Engraving tool durability increased nearly one times;
Magnesium plate engraving processing time can be significantly reduced, directly led to reduced processing cost;
Advantage
Full range of product types, Ensure production capacity:
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage:
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
The benefits of magnesium alloy materials
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
-
Magnesium is a lightest structural metal, about the two third of the density of aluminum, one fourth of steel, copper and brass.
-
Magnesium has high reflectivity and can be used for decorative applications
-
Magnesium can be utilized in structural application due to the high strength Vs weight ratio
-
Magnesium is with excellent thermal conductivity
-
Magnesium is with better acoustical deadening (damping) than that of aluminium
-
Magnesium is with good EMI and RF shielding characteristics
-
Magnesium can be 100% recyclable (environmentally friendly)
-
Magnesium has longer tool life than aluminium (for die casting and extursion)
-
Magnesium alloys materials (per unit) price is amost equal to aluminium
-
Magnesium is a non-toxic material that human-being need it, it is Bio-compatibility material
