0.3~10mm 2.5W/m·K blue color LED light insulation silicone sheet

Product features/Applications:

• Heating power devices for computers, notebooks, electronic equipment, automobiles, solar energy, LED and other products.

PRODUCT PARAMETERS



Test item	Test method	Unit	PF200 Test value	PF250 Test value
Color			Blue	Blue
Thickness	ASTM D374	MM	0.3 ~ 10	0.3 ~ 10
Hardness	ASTM D2240	Shore 00	40 ~ 80	40 ~ 80
Proportion	ASTM D792	g/cm³	2.5	2.8
Tensile strength	ASTM D412	Map	0.29	0.25
Elongation at break	ASTM D412	%	45	60
Tear strength	GBT529-2008	KN/m	0.9	0.6
Breakdown voltage	ASTM D149	KV/mm	≥ 10	≥ 10
Mass resistivity	ASTM D257	Ω·cm	1×1012	1×1013
Temperature range	EN344	℃	-40 ~ 200	-40 ~ 200
Flame retardant rate	UL 94		V - 0	V - 0
Rate of weight loss	@150℃240H	%	≤ 0.3%	≤ 0.3%
Dielectric constant	ASTM D150	@1MHz	5.69	6.79
Teat conductivity coefficient	ISO 22007-2	W/m·K	2.0	2.5

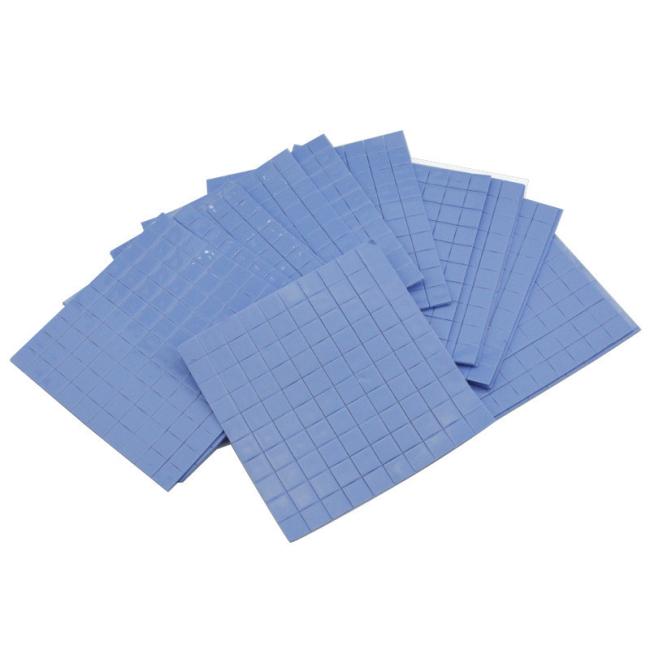

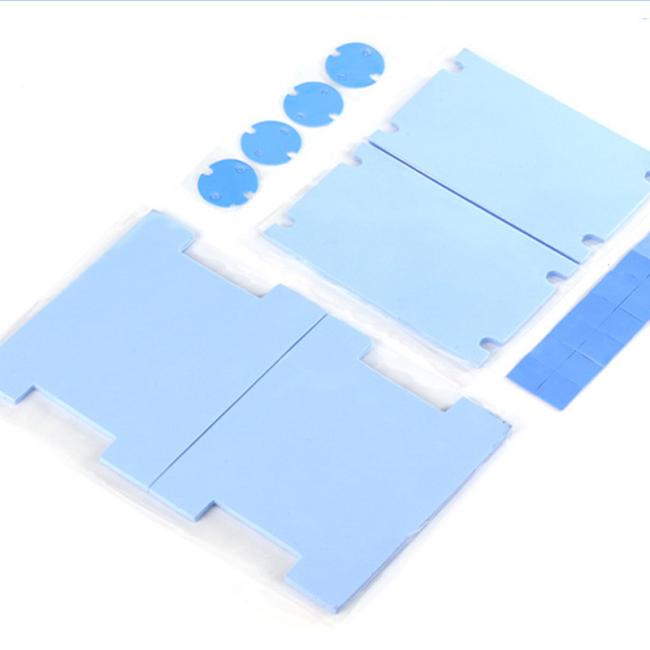

PRODUCT DISPLAY







PACKING OF TRANSPORT
