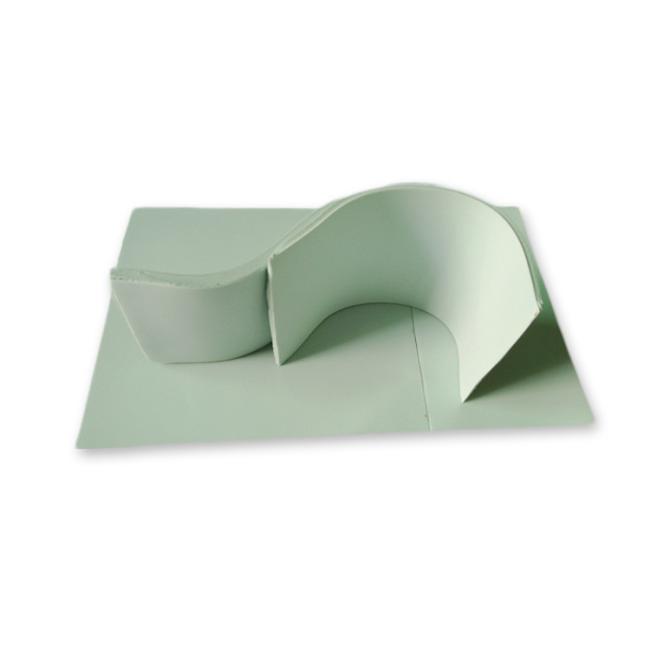

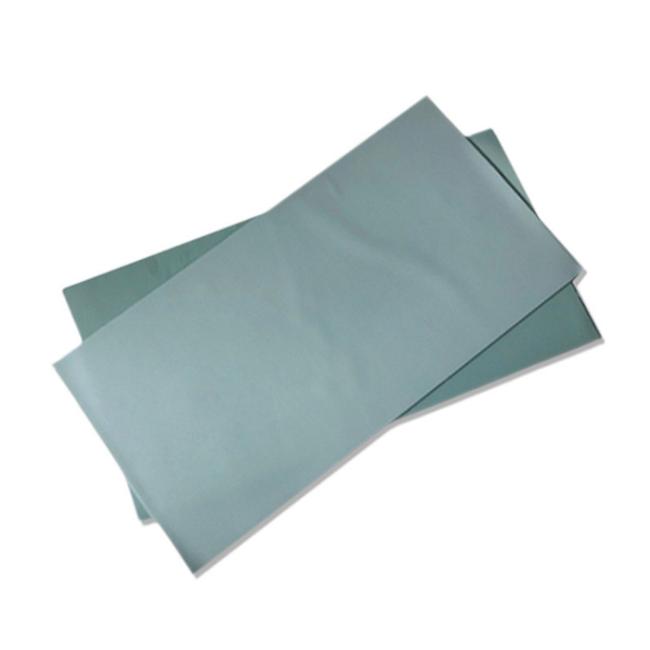

BERGQUIST GAP PAD TGP 5000 High thermal conductivity silicone pad
BERGQUIST GAP PAD TGP 5000 High thermal conductivity silicone pad
Product features/Applications:
- Thermal conductivity: 5.0 W/m-K.
- Soft, flexible and compliant, easy to process and die cut；Enhanced puncture, shear and tear resistance, conformable gap filling material；excellent thermal conductivity under low pressure.
- Used in automobile, computer, motherboard, communication hardware, storage, high-power switching power supply, etc.
| Test method | Unit | Meteic value |
| Visual | - | Light green |
| - | - | Fiberglass |
| ASTM D374 | MM | 0.508 ~ 3.175 |
| - | 1 sided | 2 |
| ASTM D792 | g/cc | 3.6 |
| ASTM E1269 | J/g-K | 1.0 |
| ASTM D2240 | Shore 00 | 35 |
| ASTM D575 | psi / kPa | 121 |
| ASTM D149 | Vac | ＞5000 |
| ASTM D257 | Ohm-meter | 1×109 |
| - | °F / ℃ | -60 ~ 200 |
| UL 94 | - | V - 0 |
| ASTM D150 | 1000 MHz | 7.5 |
| ASTM D5470 | W/m·K | 5.0 |
THERMAL PERFORMANCE vs. STRAIN
Deflection (% strain) | 10 | 20 | 30 |
Thermal Impedance (°C-in2/W) 0.040" | 0.41 | 0.34 | 0.3 |
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.shock-proof, shading, etc.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
Just send us an email or call us.
Yes, we provide samples free of charge.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
