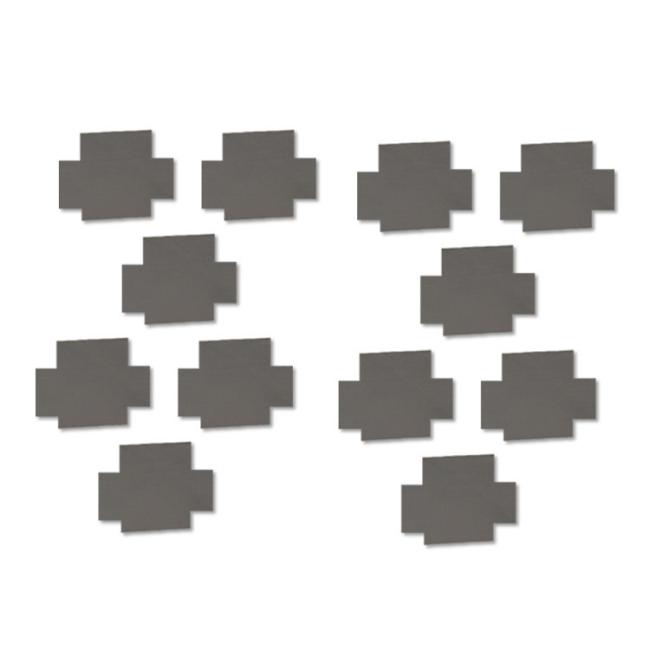

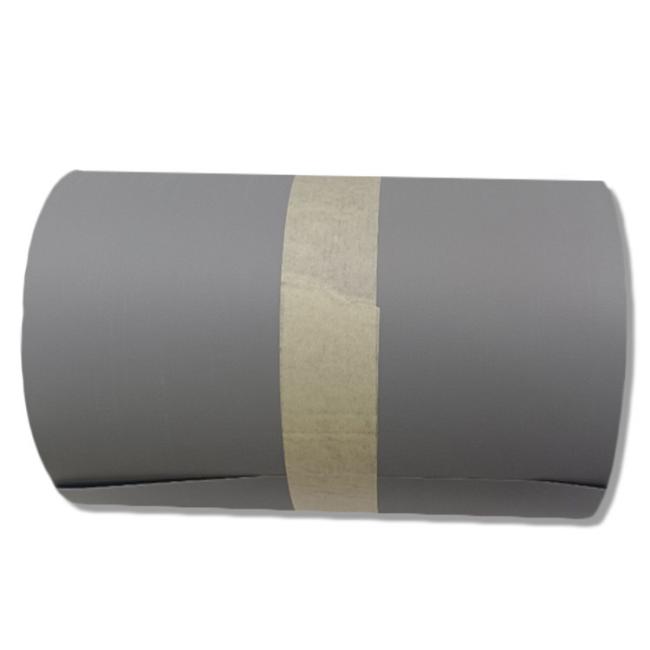

Bergquist Sil-Pad 400/TSP900 Heat Conduction Insulating Silicone Pad
Bergquist Sil-Pad 400/TSP900 heat conduction insulating silicone pad
Product overview:
- Is a composite of silicone rubber and glass fiber, the material is fire retardant, especially suitable for thermal insulation material, the material is non-toxic and resistant to clean corrosion; It is the most primary Sil-Pad material.
Product features/Applications :
- Thermal impedance: 1.13°C-in2/W(@50 psi)
- Excellent mechanical and physical properties, fire retardant.
- Used in computer CPU radiator, chassis power conversion equipment, router equipment, automotive, motherboard components, communication equipment.
|
|
Test method | Unit | Meteic value |
Color |
Visual | - | Gary |
|
|
- | - | Silicone |
Reinforcement Carrier |
- | - | Fiberglass |
Thickness |
ASTM D374 | MM | 0.18 / 0.23 |
Hardness |
ASTM D2240 | Shore A | 85 |
|
|
ASTM D 1458 | kN / m | 5 |
|
|
ASTM D412 | % | 54 |
|
|
ASTM D412 | MPa | 20 |
|
|
ASTM D149 | Vac | 3500 ~ 4500 |
Volume Resistivity |
ASTM D257 | Ohm-meter | 1×1011 |
Continuous Use Temp |
- | ℃ | - 60 ~ 180 |
Flame retardant rate |
UL 94 | - | V - 0 |
Dielectric constant |
ASTM D150 | 1000 MHz | 5.5 |
Teat conductivity coefficient |
ASTM D5470 | W/m·K | 0.9 |
THERMAL PERFORMANCEvs PRESSURE
| Pressure (psi) |
10 | 25 | 50 | 100 | 200 |
|
TO-220 Thermal Performance (°C/W) |
6.62 | 5.93 | 5.14 | 4.38 | 3.61 |
|
Thermal Impedance (°C-in2/W) |
1.82 | 1.42 | 1.13 | 0.82 | 0.54 |
