Bergquist Gap Pad 2500S20/TGP2400 Thermal Conductive Silicone Pad

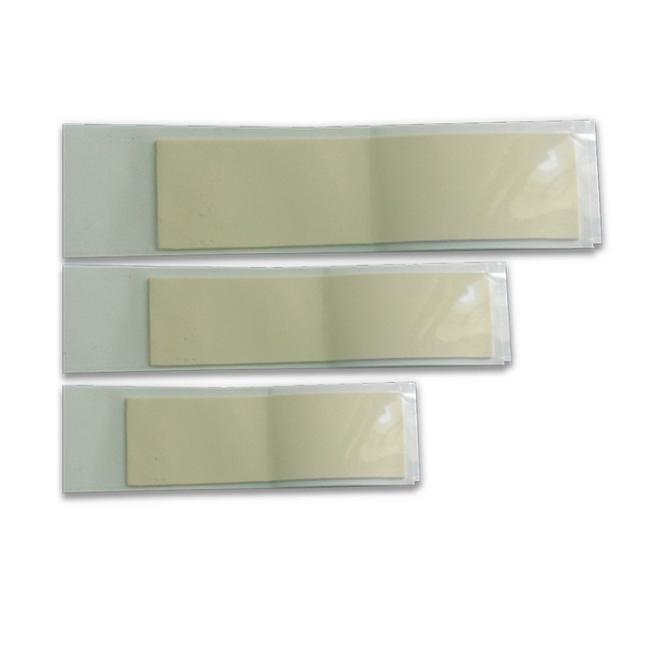

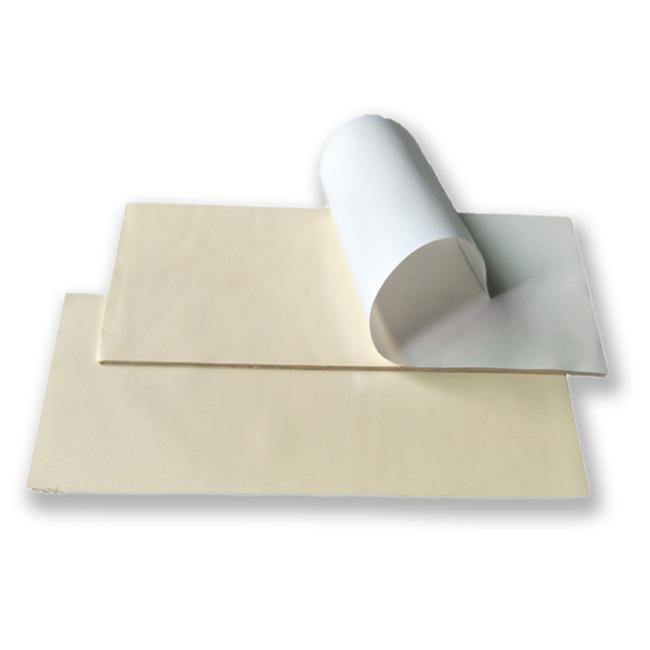

Bergquist Gap Pad 2500S20/TGP2400 Thermal conductive silicone pad
- Gap Pad 2500S20 is a glass fiber based thermal conductive material with a thermal conductivity of 2.4W/m.K. The polymer material has unusual softness and elasticity. The use of glass fiber substrate is easier to process and die cutting, and the insulation effect and tear resistance are better.
Product features/Applications:
- Thermal conductivity: 2.4 W/m-K.
- Super fit, gel-like material; Reinforced glass fiber with puncture resistance, shear resistance and tear resistanc;Low 'S-Class" thermal resistance at ultra-low pressures.
- Between processors and heat sinks,Between graphics chips and heat sinks,DVD and CDROM electronics cooling,Areas where heat needs to be transferred to a frame, chassis or other type of heat spreader.
|
|
Test method | Unit |
Imperial value |
Meteic value |
|
|
Visual | - | Light Yellow | Light Yellow |
|
|
- | - | Fiberglass | Fiberglass |
|
|
ASTM D374 | inch / MM | 0.010 ~ 0.250 | 0.254 ~ 6.350 |
|
|
- | 1 sided | 2 | 2 |
|
|
ASTM D792 | g/cc | 3.1 | 3.1 |
|
|
ASTM E1269 | J/g-K | 1.0 | 1.0 |
|
|
ASTM D2240 | Shore 00 | 20 | 20 |
|
|
ASTM D575 | psi / kPa | 5 | 35 |
|
|
ASTM D149 | Vac | ＞ 3000 | ＞ 3000 |
|
|
ASTM D257 | Ohm-meter | 1×1011 | 1×1011 |
|
|
- | °F / ℃ | -76 ~ 392 | -60 ~ 200 |
|
|
UL 94 | - | V - 0 | V - 0 |
|
|
ASTM D150 | 1000 MHz | 6.6 | 6.6 |
|
|
ASTM D5470 | W/m·K | 2.4 | 2.4 |
THERMAL PERFORMANCE vs. STRAIN
|
Deflection (% strain) |
10 | 20 | 30 |
|
Thermal Impedance (°C-in2/W) 0.040" (3) |
0.75 | 0.68 | 0.61 |
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.shock-proof, shading, etc.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
Just send us an email or call us.
Yes, we provide samples free of charge.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
