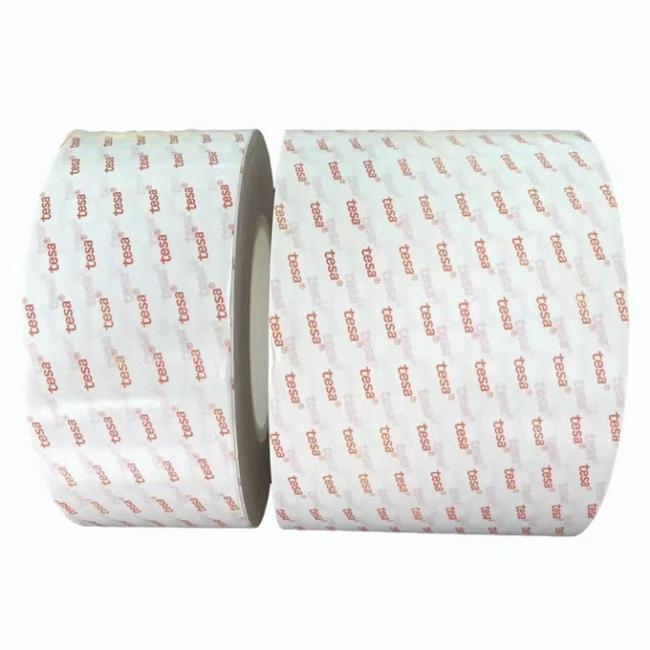

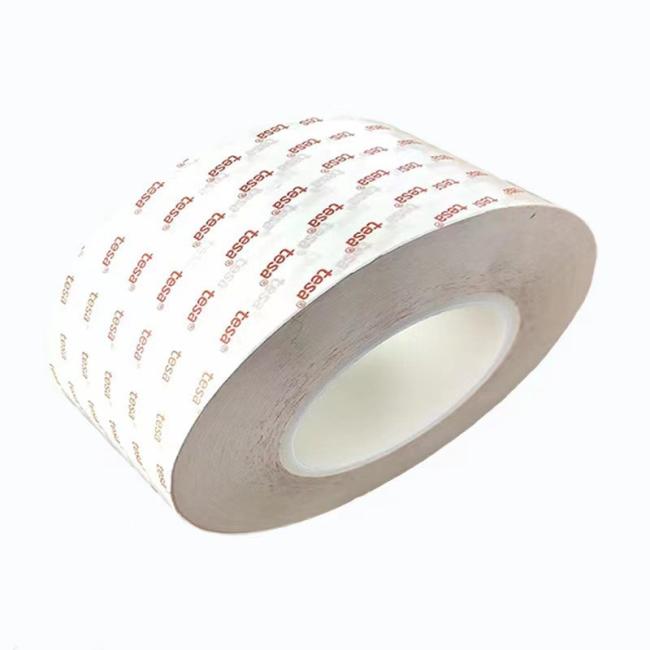

TESA 61370 Transparent PET Double Sided Tape battery for high-temperature applications
TESA 61370 transparent PET high performance double-sided tape
Product Features :
- Total thickness:125 μm
- It has superior processing properties and temperature resistance
Product Applications :
- Electronic die-cutting: Mobile accessory materials (such as camera pads, FPC reinforcements), touch screen frame bonding, OLED module fixation
- High-precision assembly: Lens brackets, sensor positioning, film switch back adhesive
- Industrial bonding: Sign plates, temporary positioning of rubber/sponge parts, internal buffer bonding of IT equipment
PRODUCT PARAMETERS
|
|
TESA | Model | 61370 |
|
|
PET (polyester) film | Backing | All-glass paper |
|
|
Transparent | Adhesive | Modified acrylic |
|
Total thickness (μm) |
125 μm | Specification |
1240mm × 100m (Customizable) |
PROPERTY / PERFORMMANCE VALUE :
|
Tensile strength ( N / CM ) |
20 n/cm |
Ageing resistance (UV) |
|
|
Elongation at break (%) |
50 % |
Short-term temperature (℃) |
200 ℃ |
| 40℃ static shear resistance | Good |
Long-term temperature (℃) |
100 ℃ |
|
|
Ordinary | moisture resistance | Very good |
PEEL STRENGTH FOR DIFFERENT SURFACES :
| Material |
Initial peeling strength |
Peel strength after 14 days |
| Steel plates | 13.9 | 16.7 |
| ABS | 8.7 | 12.8 |
| Glass | 12.8 | 15.2 |
| PC | 11.2 | 17.9 |
| PMMA | 13.0 | 16.8 |
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.shock-proof, shading, etc.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
Just send us an email or call us.
Yes, we provide samples free of charge.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
