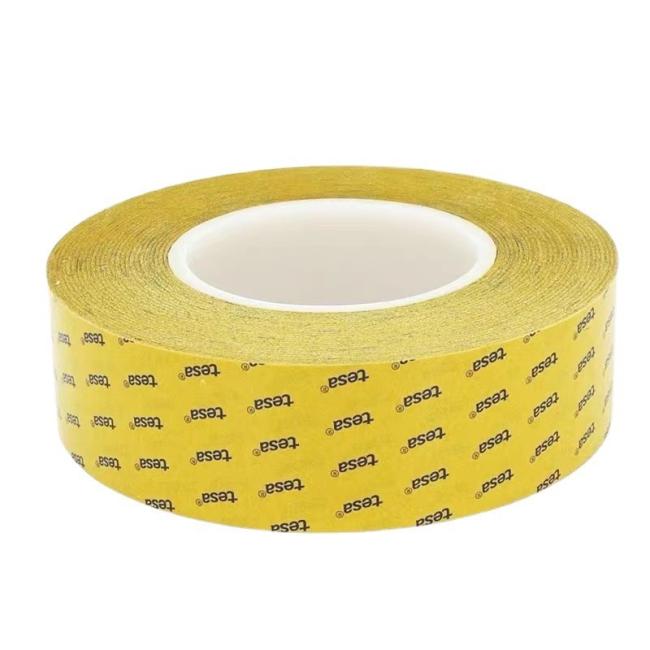

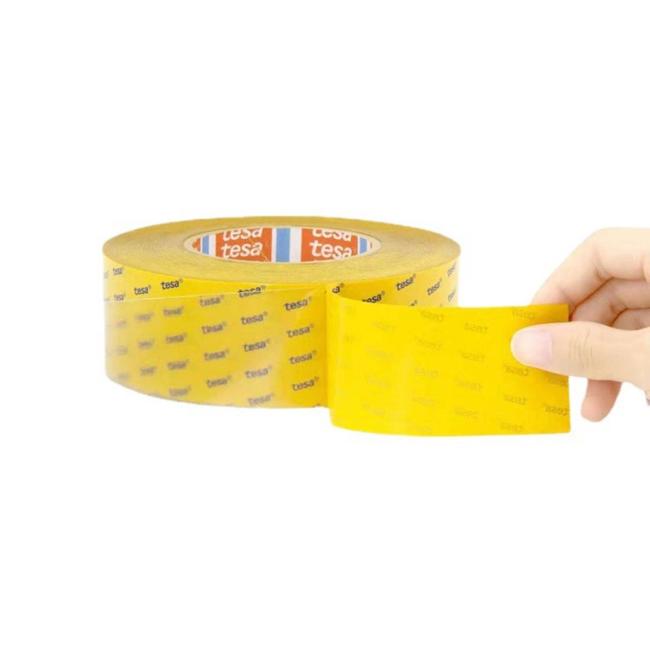

TESA 68548 Transparent PET High Adhesive Double-sided Tape 10μm Thick Strong
TESA 68548 transparent PET 10μm thick strong high adhesive double-sided tape
Product features/Applications :
- Base material thickness : 2μm
- It has good bonding properties.
- Excellent performance, suitable for curved surfaces; Excellent weather resistance.
- Suitable for soft circuit board, cooling parts paste.
PRODUCT PARAMETERS
|
|
TESA | Model | 68548 |
|
|
PET film | Backing | Release paper |
|
|
Transparent | Adhesive | Acrylic |
|
Total thickness (μm) |
10 μm | Specification |
1250mm × 100m (Customizable) |
|
Base material thickness (μm) |
2 μm | - | - |
PROPERTY / PERFORMMANCE VALUE :
|
moisture resistance |
Very good |
Ageing resistance (UV) |
Very good |
|
23℃ static shear resistance |
Good |
Short-term temperature (℃) |
200 ℃ |
| 40℃ static shear resistance | Good |
Long-term temperature (℃) |
100 ℃ |
Initial adhesion |
Low | Chemical resistance | Good |
PEEL STRENGTH FOR DIFFERENT SURFACES :
| Material | Initial peeling strength (N/CM) |
Peel strength after 14 days (N/CM) |
| ABS | 5.5 | 5.7 |
| Steel plates | 5.9 | 7.3 |
| PC | 5.9 | 6.8 |
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.shock-proof, shading, etc.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
Just send us an email or call us.
Yes, we provide samples free of charge.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
