TESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering
TESA 8853 translucent non-woven high temperature resistant double-sided tape
Product Description

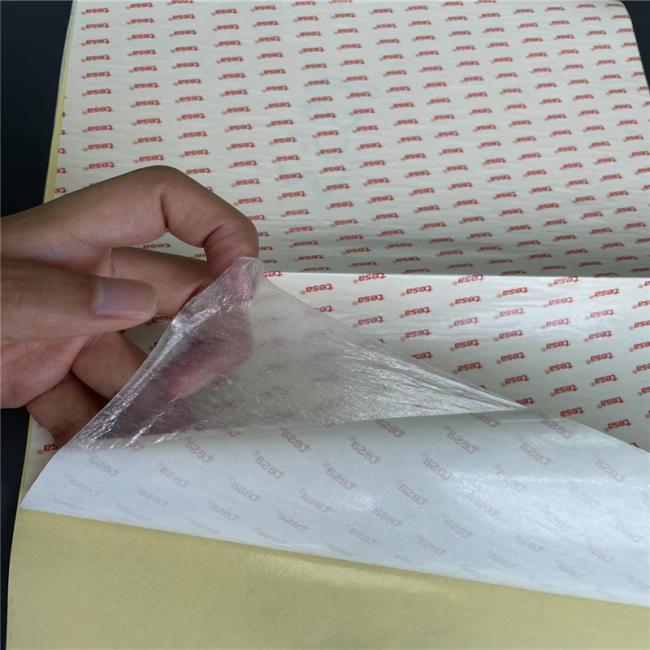

Tesa® 8853 is a double-sided semi-transparent ultra-thin non-woven fabric tape with a total thickness of 50 µm. It is made with a specially modified acrylic adhesive system and is combined with a high-temperature-resistant Graflex release paper (glass fiber paper)
Product features:
- The acrylic adhesive gives this product an excellent temperature resistance up to 260°C.
- The highly comfortable ultra thin non-woven backing offers excellent converting performance with limited edge picking
- The temperature resistant glassine liner ensures it can be easily released without adhesive residue left after solder reflow process
- Sufficient holding power and peel strength even after solder reflow process
- Excellent die-cutting properties and very low oozing due to special backing
- High tensile strength
- High aging resistance
- Conforming to RoHS
- High conformability for uneven surfaces
Product Application :
- FPC mounting application of electronic components, subjected to high temperature processing and operating environments
PRODUCT PARAMETERS
|
|
TESA | Model | 8853 |
|
|
Non-woven | Backing | Release paper |
|
|
Translucent | Adhesive | Modified acrylic |
|
Total thickness (μm) |
50 μm | Specification |
1250mm × 100m (Customizable) |
PROPERTY / PERFORMMANCE VALUE :
|
Humidity resistance |
Chemical resistance | Anti-aging (UV) | Initial viscosity | Anti-plasticizer |
|
Very good |
Good | Very good | Good | Good |
PEEL STRENGTH FOR DIFFERENT SURFACES :
| Material | Initial peeling strength ( N/cm ) |
Peel strength after 14 days |
| ABS | 4.8 | 6.0 |
| Aluminum | 4.5 | 5.9 |
| PC | 5.8 |
6.9 |
| PET | 5.0 | 5.4 |
| PI | 5.9 | 6.0 |
| Steel plate | 5.3 | 6.5 |
