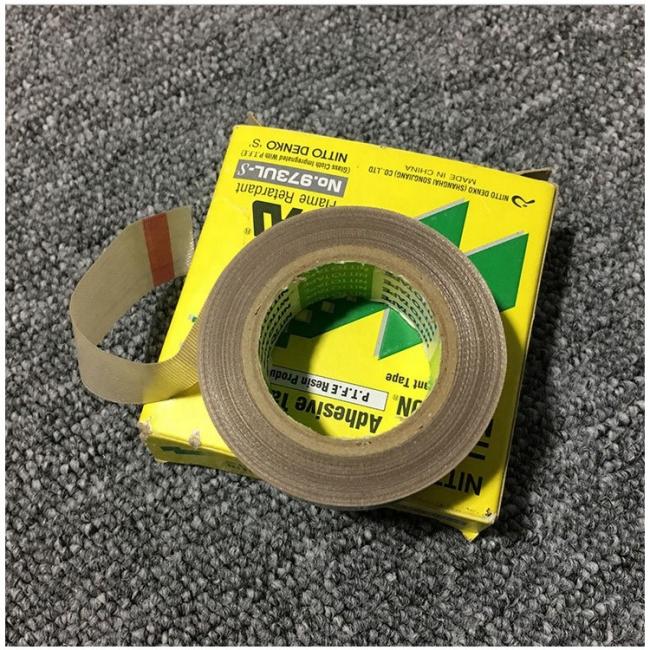

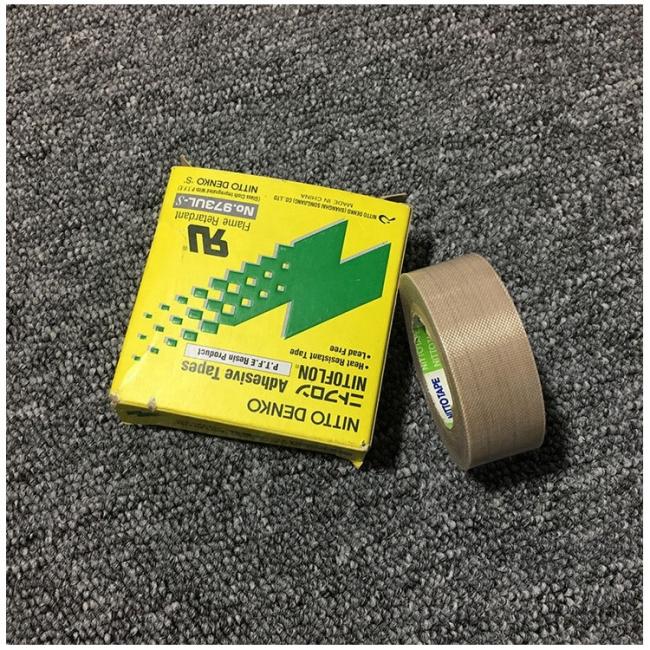

Nitto 973UL-S PTFE Electrical Tape 0.13mm Thick For Sealing Machines
Product Description:
- Single surface treated polytetrafluoroethylene (PTFE) film-base tape coated with silicone adhesive with excellent heat-resistance.
Product Features:
- Heat resistance, chemical resistance
- Low friction coefficient and non-adhesiveness
- Insulating properties
- Resuable ,easy to replace
Product Applications :
- Heat sealing
- Heat resistant masking
- Heat resistant electrical insulation
- Electrical insulating parts, capacitor dielectric, conductor insulation, electrical instrumentation insulation, etc.
|
Brand
|
NITTO |
|
Model
|
973UL-S |
|
Colour
|
Brown |
|
Adhesive
|
Silicone |
|
Total Thickness (mm) |
0.13
|
|
Material
|
PTFE film |
|
Specification
|
13mm × 10m (Customizable) |
PHYSICAL PARAMETER VALUE
| Items | Unit |
Characteristic value
|
|
|
Tensile strength |
|
240 | |
|
Peeling strength (stainless steel) |
25℃
|
N/19mm
|
6.8 |
|
100℃
|
N/19mm
|
3.2 | |
| 150 |
N/19mm
|
2.2 | |
| Unwinding force |
N/19mm
|
5.9 | |
| Adhesive residue test | - |
Good
|
|
|
Flame Retardant
|
- | UL510 Flame Retardant(E34833) | |
Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
Just send us an email or call us.
Yes, we provide samples free of charge.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
