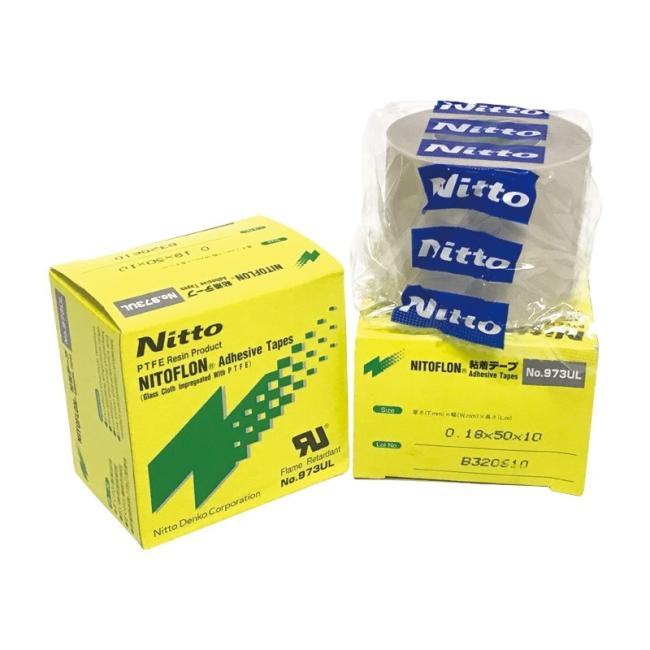

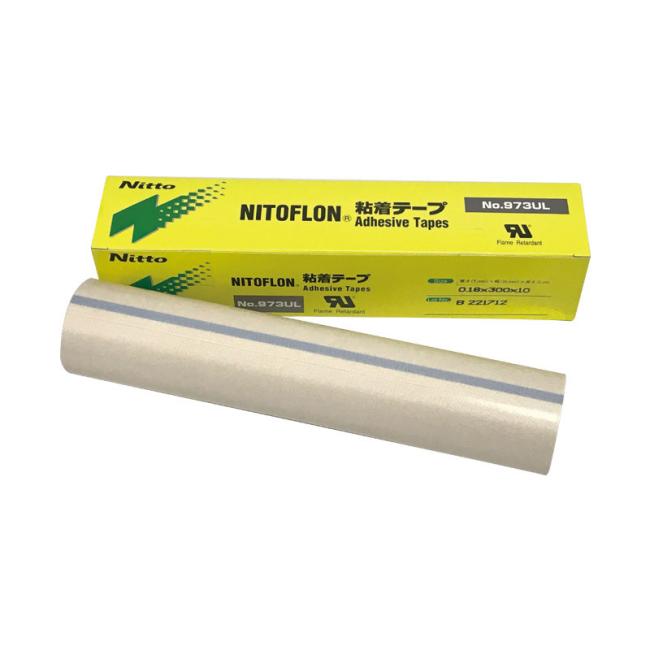

Nitto Heat Resistant Tape NO.973UL T0.18mm X W15/19/25/50/300mm
Product Description:
- Glass cloth base material impregnated with polytetrafluoroethylene (PTFE) dispersion then sintered. Single surface treated and coated with a silicone adhesive
Product Features:
- Superior mold-releasing and sliding properties.
- Good holding property at elevated temperatures and dimensional stability.
- The non-adhesive side exhibits excellent characteristics of polytetrafluoroethylene such as electrical properties, resistance to heat, weather, chemical, and water (water-shedding), and non-adhesiveness.
Product Applications :
- Heat-resistant insulation
- Heat-resistant lubricants for heat sealing
- Chute and hopper linings
- Surface coating of sizing rolls for dying and resin treatment
|
Brand
|
NITTO |
|
Model
|
973UL |
|
Colour
|
Beige |
|
Adhesive
|
Silicone |
|
Total Thickness (mm) |
0.18
|
|
Material
|
PTFE film |
|
Specification
|
300mm × 10m (Customizable) |
PHYSICAL PARAMETER VALUE
| Items | Unit |
Characteristic value
|
|
|
Tensile strength |
|
670 | |
|
Peeling strength (stainless steel) |
25℃
|
N/19mm
|
9.7 |
|
100℃
|
N/19mm
|
4.7 | |
| 150 |
N/19mm
|
3.0 | |
| Unwinding force |
N/19mm
|
5.9 | |
|
Flame Retardant
|
- | UL510 Flame Retardant(E34833) | |
Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
Just send us an email or call us.
Yes, we provide samples free of charge.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
