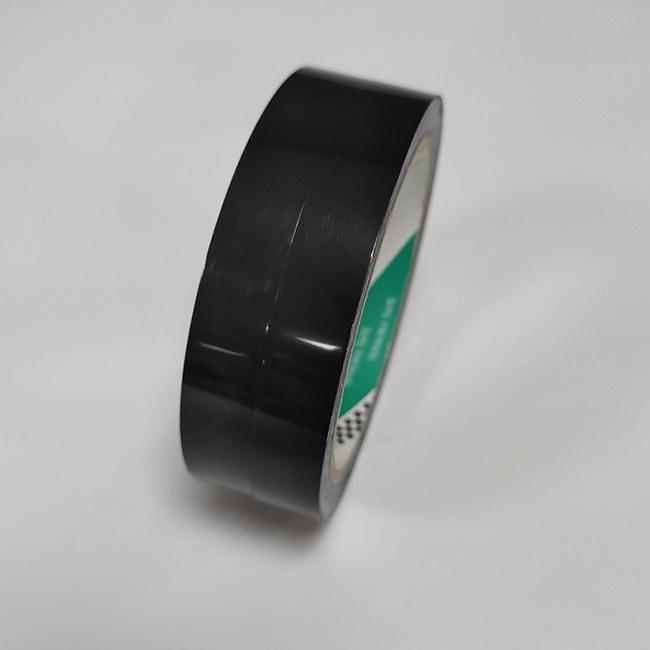

Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Teraoka 631S #12 #25 #100 Polyethylene film tape Electrical insulation tape
Product Description:
- The 631S series is an insulating tape that has acrylic adhesive coated on a polyester film.
Product Features:
- Heat resistance
- Electrical insulation property
- Chemical resistance
- High adhesion
- Soft and comfortable
- Remove without leaving any remaining adhesive residue
Product Applications:
- The outer and inner insulation of the transformer
- Insulation and fixation of electronic components: LCD liquid crystal display, lithium-ion televisions, computers, copiers, fax machines, telephones, DVDs, instruments and meters
|
#12
|
#25 | #100 | |
| Thickness(MM) | 0.03 | 0.05 | 0.15 |
| Color | Transparent, White, Blue, Green | White, Black, Blue, Red, Yellow, Green, Transparent | Transparent |
| Width(MM) | 1000 | 1200 | 1200 |
| Length(M) | 50 | 30 , 50 | 20 |
| Peel adhesion (N/25mm) | 8.58 | 12.26 | 23.29 |
| Tensile strength(N/25m) | 39.2 | 95.6 | 343 |
| Elongatio(%) | 80 | 80 | 80 |
| Breakdown voltage(KV) | 4 | 6 | 14.6 |
| Standards and Certifications | UL temperature class 130°C |
UL temperature class 130°C UL746A CTI≧600V |
- |
Note:
The #12 and #25 are also ideal for use in winding as it is hard for the terminal to peel off
#100 is suitable for insulating spacers

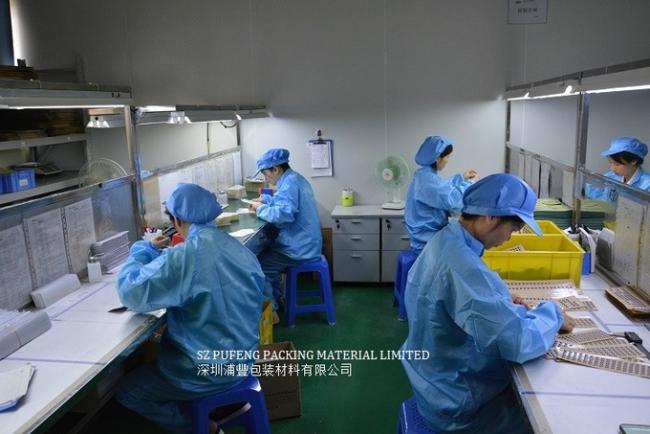

PUFENG is a professional die-cutting processing company, established in 2014.We have professional die-cutting materials and affiliated factories. We will do our best to solve all your bonding problems and provide you with professional solutions and suitable products.
Main products: viscose products, protective films, insulating products, foam and sponge. There are various brand partners: 3M, TESA, NITTON, SONY, TERAOKA, INOAC, ROGERS, etc.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.shock-proof, shading, etc.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
Just send us an email or call us.
Yes, we provide samples free of charge.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
