Die-cutting Acetate cloth tape flame-retardant insulating material, for cable bundling
Acetate fabric cloth tape is widely used in automotive cable harnesses to wrap the cables. It can be cut into different shapes for different parts' uses. When assembling the cable harnesses, workers can easily pick up a piece of tape without having to cut it themselves, thus avoiding unnecessary waste.

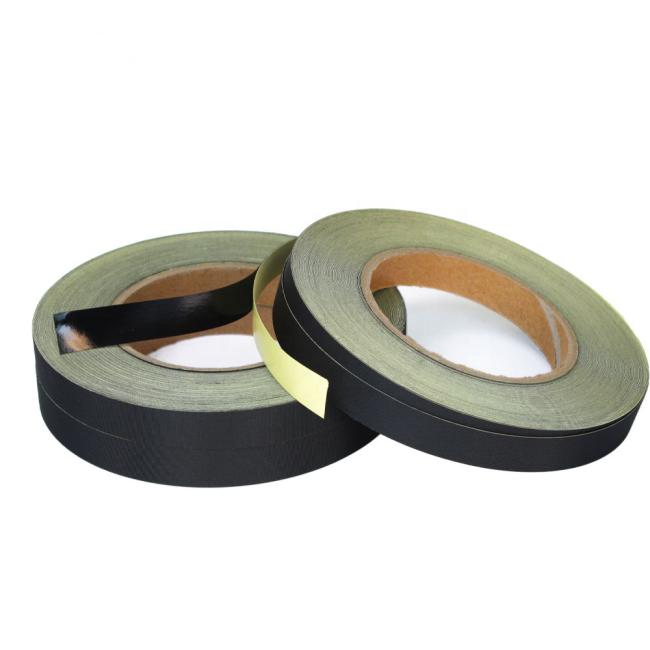

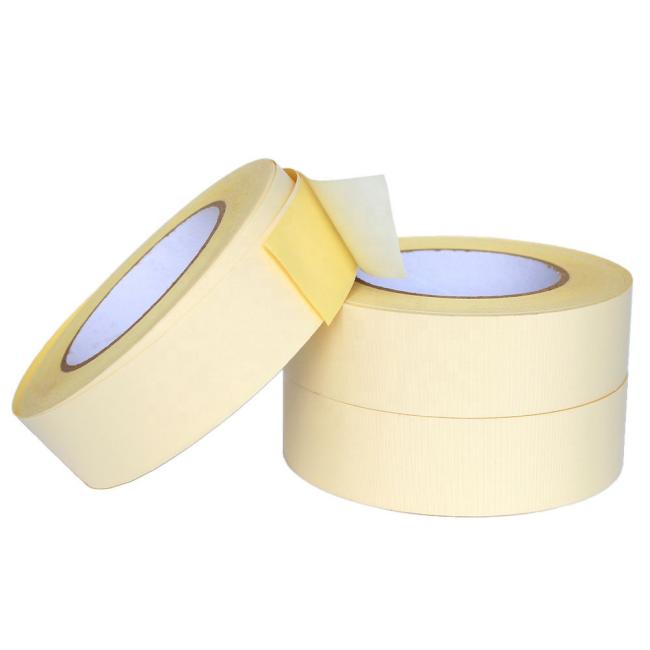

Tape comes in white and black colors. Black is the most widely used. There are tapes with a thickness of 0.12MM and 0.2MM. The 0.2MM tape has thicker lines.
Total thickness: 0.12mm, 0.2mm
Peel force: 1.0 ~ 1.5KG/25mm (180° reverse peel force test)
Temperature resistance: -10 ~ 120℃ Short-term temperature: 150℃
Tensile strength: 90 ~ 110 N/25mm
Initial adhesion: ≥ 10 # balls
Adhesion: ≥ 24 hours

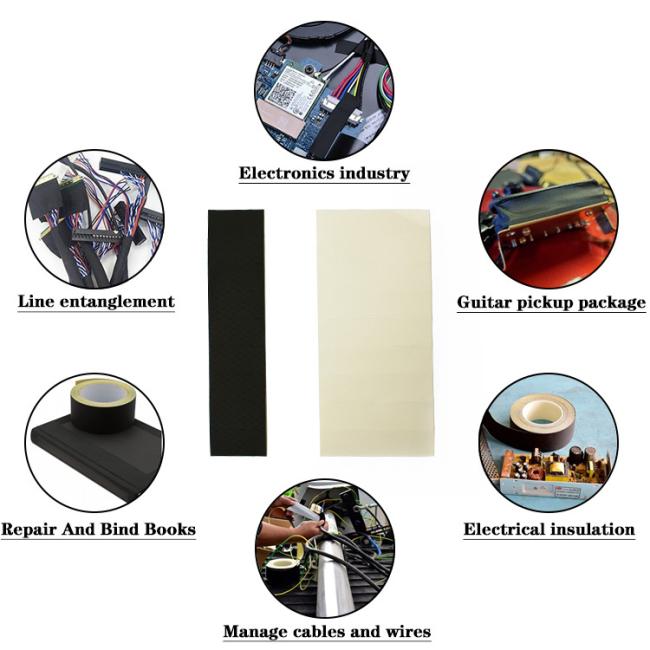

Used in industries such as transformers, motors, and flexible wires as insulation, wrapping, etc. It can also be used for wire cables, bundling, and fixing products.
| Brand | PUFENG |
|---|---|
| Model | PF2012 |
| Colour | Black / White |
| Adhesive | Acrylic acid |
| Material | Acetate fabric cloth |
| Thickness (mm) | 0.12, 0.2mm, Customizable |
| Specification | 1200mm × 50m (Customizable) |

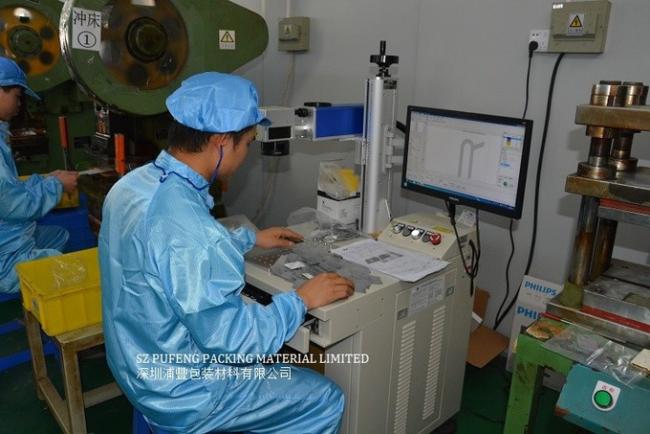

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
Our export range is extensive, including viscose products, insulating products, foam and sponge and other industrial raw materials. We can also perform die-cutting according to your requirements.
We will do our best to solve all your bonding problems and provide you with professional solutions and suitable products.
- Your enquiries about our products will be answered within 12 hours.
- OEM or ODM projects are very welcome.
- We can die cut or design products according to your requirements.
- Provide perfect after-sales service, if you have questions, please contact us.
- Pack according to your requirement and deliver on time.
Just send us an email or call us.
Yes, we provide samples free of charge.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
If the tape you ordered is in stock, we can deliver it within 1~3 days. If die cutting is required, delivery time shall be determined by quantity.
