Rogers Bisco HT-870 Soft Cellular Silicone foam, Density is 240kg/m³
Price:
USD1~USD50
MOQ:
1roll
Delivery Time:
3~5working days normally
Brand:
Rogers
Product Description
Rogers Bisco HT-870 Soft Cellular Silicone Foam
Density: 240kg/m³
Product Description
Rogers BISCO HT-870 Soft Cellular Silicone is a firmer, denser version of our BF-1000 Silicone and offers the ability to seal and cushion within a wide range of applications.
Product Features
- Low gas release performance
- Good sealing property
- Ultraviolet resistance
- Inflaming retarding
- Mechanical properties: High compressibility enables adaptation to different gap widths. Slow rebound performance reduces the risk of gasket failure. Low stress relaxation lowers maintenance costs
Product Applications
| Application fields | Specific use | Core values |
|---|---|---|
| Outdoor electronic equipment | Lighting enclosure, HVAC device, electronic cabinet sealing | Dust-proof, water-proof, and light-proof |
| Automobiles and Electrical | Shock Absorbers, Gaskets, Safety Airbag Components | Absorb shock and reduce vibration noise |
| Batteries and energy equipment | Battery pack fireproof and waterproof sealing strips, vibration isolation pads | Flame retardant and heat insulation, enhanced air tightness |
Product Parameters
| Brand | Rogers |
|---|---|
| Series | BISCO |
| Model | HT-870 |
| Color | Red / Black |
| Adhesive | With or without |
| Material | Cellular Silicone |
| Total Thickness | 1.59mm ~ 12.7mm (0.063 ~ 0.500 inches) |
| Processing | Customization based on the provided CAD and PDF format drawings |
| Temperature range | -55 ~ 200℃ (-67 ~ 392℉) |
Performance Parameters
| PROPERTY | TEST METHOD | TYPICAL VALUE |
|---|---|---|
| Density, kg/m³ (lb./ft³) | Internal | 240 (15) |
| Compression Force Deflection, kPa (psi) | ASTM D1056 | 26 (3.8) |
| Compression Set, % | ASTM D1056 100°C (212°F) / 22 hrs / 50% | 1.6 |
| Water Absorption, % | Internal 2" below water surface / 24 hrs / change in weight | 0.5 |
| Thermal Conductivity, W/m °K | ASTM D518 | 0.06 |
| Low Temperature Flex | ASTM D1056 -55°C (-67°F) / 5 hrs | Pass |
| Low Temperature Brittleness | ASTM D746 -55°C (-67°F) / 3 min | Pass |

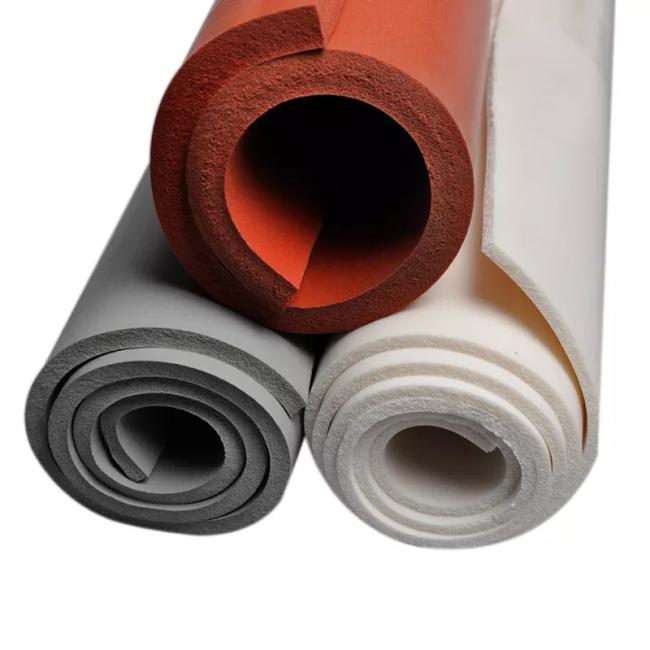

Product Display
Packing & Transport
Company Profile
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
Our export products are diverse, including adhesive products, insulating products, foam and sponge, as well as other industrial raw materials. They are composed of multiple brands: 3M, Nitto, Sony, TESA, Teraoka, Bergquist, Rogers, INOAC, and our domestic brand, etc.
Welcome to come for consultation! We will do our best to solve all your connection problems and provide you with professional solutions and applicable products.
Our Services
- Your enquiries about our products will be answered within 12 hours.
- OEM or ODM projects are very welcome.
- We can die cut or design products according to your requirements (shock-proof, shading, etc.).
- Provide perfect after-sales service, if you have questions, please contact us.
- Pack according to your requirement and deliver on time.
Common Questions
How to order from Pufeng?
Just send us an email or call us.
Just send us an email or call us.
Do you provide free samples for testing?
Yes, we provide samples free of charge.
Yes, we provide samples free of charge.
How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
What payment does Pufeng accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days. If die cutting is required, delivery time shall be determined by quantity.
If the tape you ordered is in stock, we can deliver it within 1~3 days. If die cutting is required, delivery time shall be determined by quantity.
