SGS 0.25mm Kapton Polyimide Tape Heat Resistant Electrical Insulation Tape
Insulation PI film black polyimide tape heat resistant electrical insulation tape
Polymide silicone adhesive tape is using polymide film as base material and coating silicone adhesive on one side which can resist high temperature in application. This tape is also called "kapton tape".
Thermostable Polyimide film for Generator details:
Polyimide film is synthesized by polymerizing PMDA and ODA in strong polar solvents through the
process of film forming and imine treatment at high temperature, which possesses excellent
physical, chemical, and electrical properties; it is also radiation resistant, solvent resistant,
low & high temperature resistant, It can be applied successfully in a wide range of temperature
as low as -452F (-269c) and as high as +500F (+260c). Thanks to its unique excellent properties,
it is the ideal candidate in many applications.
Thermostable Polyimide film for Generator features:
High temperature electrical insulation
Cut-through resistant
High dielectric strength
High bond strength
Good chemical stability. It resists most organic solvents.
Excellent flame retardant property
Good radian-resistant property
| No. | Item Name | Unit | Standard |
| 1 | Tensile Strength | MPa | 78 |
| 2 | Elongation Ratio | % | 30 |
| 3 | Peel Force | N/ 2.5mm | |
| Tape-Tape | 4 | ||
| Tape-Copper | 4 | ||
| 4 | Dielectric Strength | MV/m | 90 |
| 5 | Surface Resistivity | Ω | 1.0 × 1012 |
| 6 | Volume Resistivity | Ω . m | 1.0 × 1013 |
| 7 | Dielectric Constant 50Hz | 2 — 3 | |
| 8 | Dielectric Loss Tangent 50Hz | 0.01 |

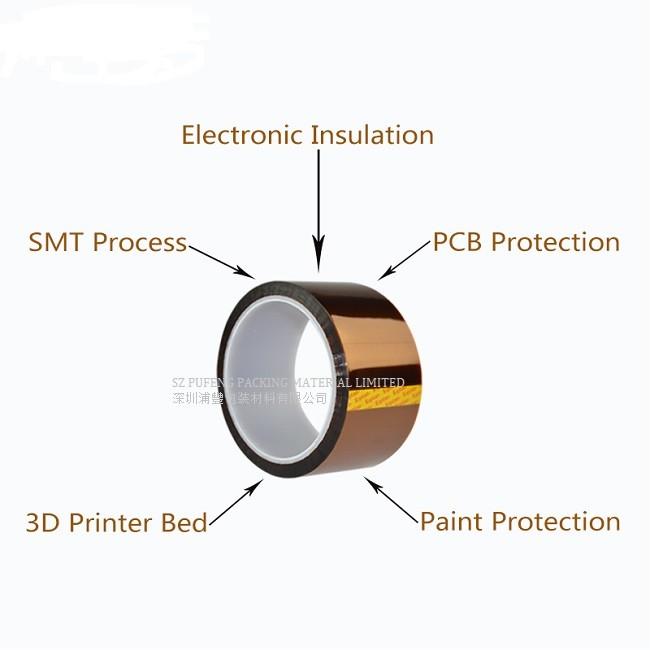

Application
This product can be used in flexible prinyed circuits and as insulating materials of flat electric cables, electromagnetic wires and motors.
Pictures:
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods with strech film and pe foam for inner package ,then outer package using carton one roll
Q2. What is your terms of payment?
A: T/T etc.
Q3. What is your terms of delivery?
A: FOB, EXW, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 days when we received the first payment.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have random inspection before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
