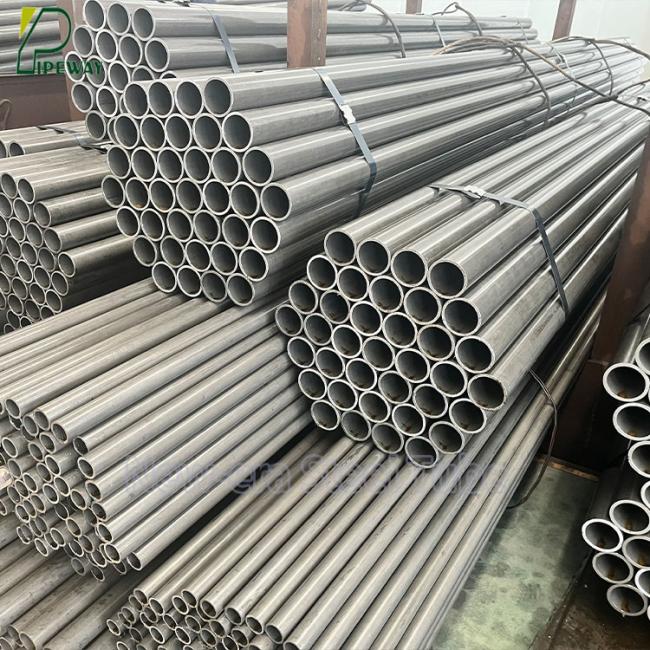

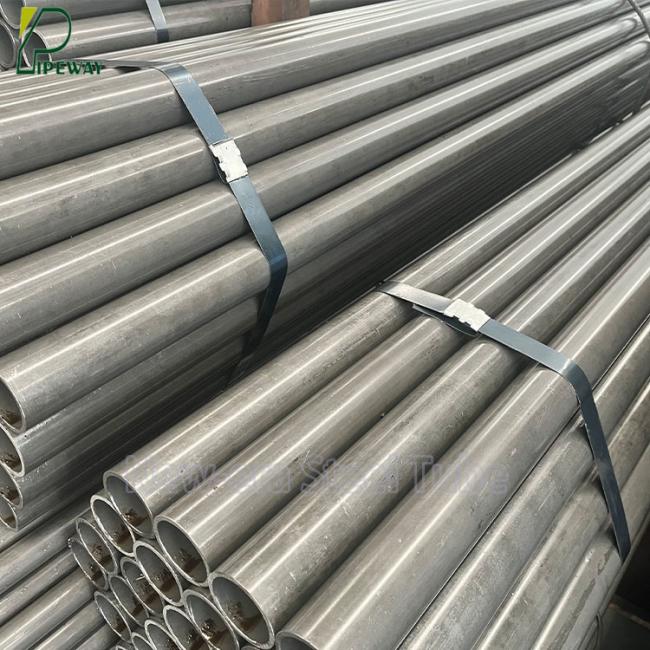

Round Cold Drawn Alloy Seamless Steel Pipe 20Cr 40Cr
10Mn2 / 20Cr / 40Cr Seamless Cold Drawn Alloy Fluid Steel Pipe
Material: 10, 20, 35, 45, 10Mn2, 15Cr5Mo, 12Cr8, 20Cr, 40Cr
Size Range: OD: 6-114mm, WT: 1-20mm, Length: 5.8m/6m, maximal 11.8m
Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.
100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.
| Product Name | Seamless Alloy Steel Tube for Liquid Transportation |
| Material | 10, 20, 35, 45, 10Mn2, 15Cr5Mo, 12Cr8, 20Cr, 40Cr |
| Standard | GOST8733 / GOST8734 |
| Size Range | OD: 6-114mm, WT: 1-20mm |
| Application | Structural and mechanical purpose |
| Round Billet | Bao Steel, Xingcheng Steel, Zhongtian Steel |
| Keyword | Seamless Steel Pipe |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Pakcing | Bundles or Woodern Boxes |
| Mechanical composition | ||||
| Steel grade | Tensile strength, N/mm2 (min) | Yield strength, N/mm2 (min) | Elongation, % (min) | Hardness HB (≤) |
| 10 | 333 | 206 | 26 | 137 |
| 20 | 412 | 245 | 23 | 156 |
| 15Cr5Mo | 392 | 216 | 22 | 170 |
| 12Cr8 | 392 | 216 | 22 | 170 |
| 10Mn2 | 412 | 245 | 21 | 197 |
