SA192 Boiler Tube Seamless Cold Drawn Steel Tube GOST8733 / ASTM SAME SA192
ASTM SAME SA192 Seamlesss Steel Tube for Boilers
Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions
Manufacture:
Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
seamless boiler steel tube
Size:
OD 12.7-177.8mm
WT 2.2-25.4mm
alloy steel boiler tube
Heat treatment:
Hot finished tubes need not be heat treated.Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher
Steel grade SA192 Chemical Composition & Mechanical properties
| C | Mn | P | S | Si | Tensile Strength | Yeild point | Elongation |
| 0.06-0.18 | 0.27-0.63 | 0.035Max | 0.035Max | 0.25Max | min ksi[Mpa] 47[325] | min ksi[Mpa] 26[180] | ≥35% |
Hardness

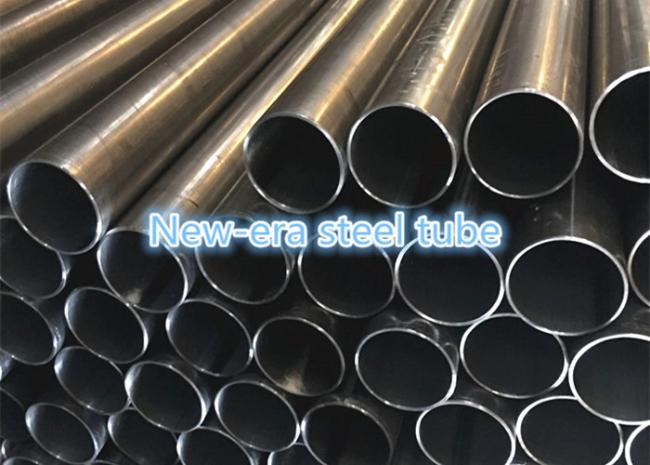

ASTM A192 Boiler Tube Photos
