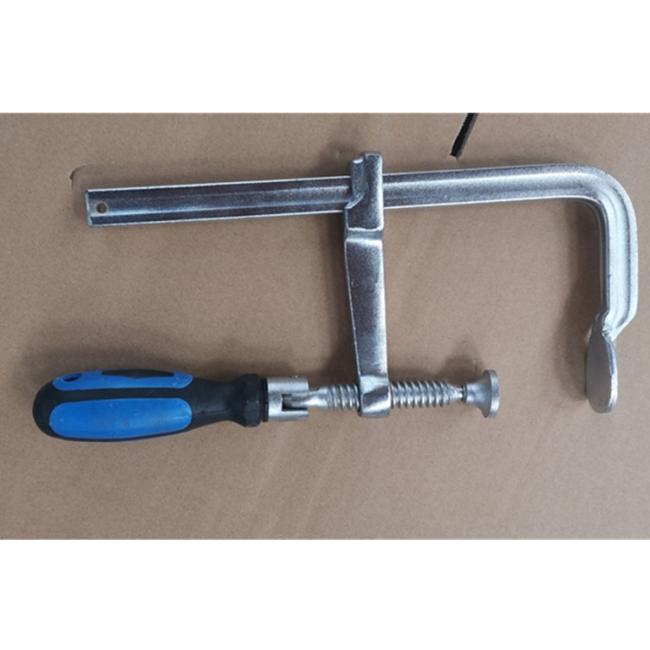

Plastic Pivot Handle Forged Rail Bar Steel F Clamps L Clamps for Woodworking Metalworking F Clamps
Price:
US$ 7.8--8.5 per piece
MOQ:
500pcs
Delivery Time:
30 days
Brand:
Chiree
Product Description
- For all variable uses requiring sensivity and force

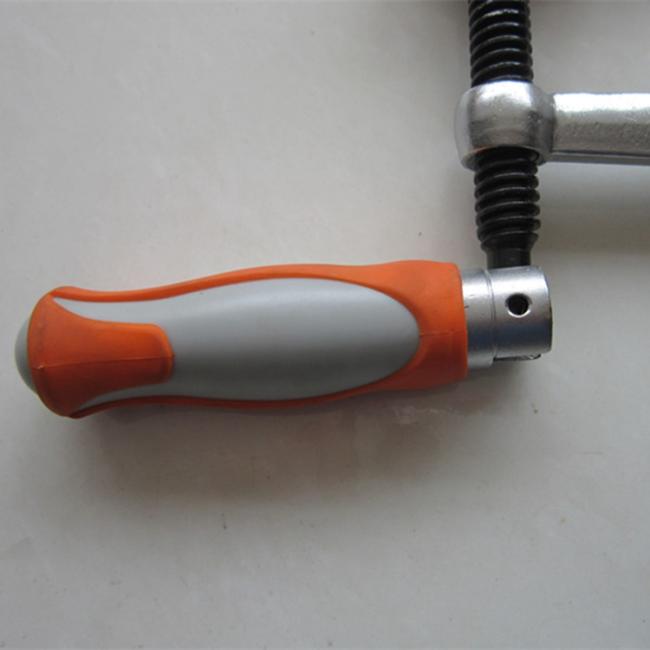

- The variable handle position permits a sensible combination of handle and tommy bar With hollow-section bar and integral clamping arm
- In cold-drawn profile-section steel, hot-forged to shape and with optimum heat treatment guarantees torsion-free transference of the clamping force
- With forged clamping arm - fitted to slide perfectly
- Movable pressure plate with protective cap
- Deep trapezoidal thread for optimum transfer of force
- In special steel, hardened, bright zinc-plated - for good protection against corrosion and non-dirtying surface
| Povit Handle F Clamps Specifications | |||
| Throat Depth (mm) | Jaw Opening (mm) | Bar Size (mm) |
Weight (kgs) |
| 100 | 200 | 19.5x9.5 | 1.11 |
| 300 | 1.24 | ||
| 400 | 1.38 | ||
| 500 | 1.50 | ||
| 600 | 1.69 | ||
| 800 | 1.90 | ||
| 1000 | 2.15 | ||
| 1200 | 2.44 | ||
| 120 | 200 | 22x10.5 | 1.34 |
| 300 | 1.52 | ||
| 400 | 1.68 | ||
| 500 | 1.85 | ||
| 600 | 2.05 | ||
| 800 | 2.36 | ||
| 1000 | 2.70 | ||
| 1200 | 3.05 |
||
