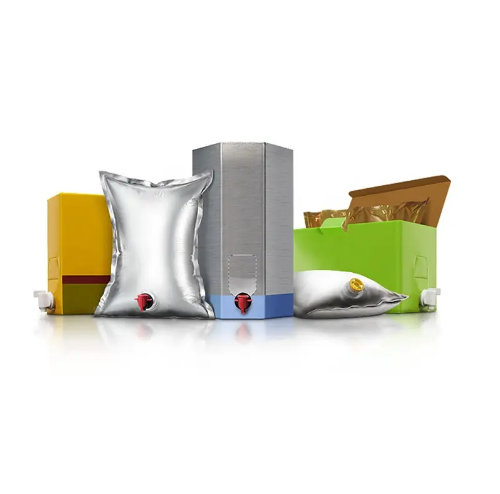

Leakproof Food Grade Aluminized Transparent Bag In Box For Liquid Packing

Price Negotiable

Price: USD1-1.5/PC

MOQ: 5000

Delivery Time: 15-20Days

Brand: DINUO

Product Description

Leakproof Food Grade Aluminized Transparent Bag In Box For Liquid Packing

Product Type	Bag in Box
Material Structure	Aluminum foil/metallized PE/PA/VMPET bag in box
Core Features	Anti-oxidation, moisture resistance, light blocking, leak-proof, easy dispensing
Customization	Size/thickness customization, valve position adjustment, logo printing
Application	Beverage, liquid chemical, edible oil, pharmaceutical liquid packaging
Barrier Performance	Oxygen Permeability ≤1.0 cm³/(m²·24h), Water Vapor Permeability ≤0.5 g/(m²·24h), Light Transmittance ≤0.2%

No	Inspection item	Standard requirement
No	Inspection item	Aluminized PET bag	Aluminium foil bag	Nylon bag	Normal PE bag	Aluminized PE bag	High barrier transparent PE bag
1	Oxygen permeability cm³/(m²·24 h)	≤1.0	≤0.5	≤100	-	≤1.0	≤0.5
2	Water vapor permeabilityg/(m²·24 h)	≤0.5	≤0.5	≤10	≤15	≤0.5	≤0.5
3	Light transmittance%	≤0.2	≤0.2	-	-	≤0.2	-
4	Tensile strength (vertical/horizontal)MPa	≥30	≥30	≥30	≥20	≥20	≥20
5	Breakage nominal strain(vertical/horizontal) %	≥45	≥45	≥45	≥200	≥200	≥200
6	Oxygen permeability cm³/(m²·24 h)	≥3.0	≥3.0	≥3.0	-	≥3.0	≥3.0
7	Thermal bonding strength of bag body N/15 mm	≥40	≥40	≥40	≥15	≥15	≥15
8	Thermal bonding strength of bag mouth and body N/15 mm	≥40	≥40	≥40	≥30	≥30	≥30
Remark: The numbers 1 to 6 are the indicators of the outer film.

1. Exceptional Barrier Performance
This bag-in-box uses aluminized VMPET, PE, PA and Aluminum foil, achieving oxygen permeability ≤1.0 cm³/(m²·24h) and water vapor permeability ≤0.5 g/(m²·24h). It also blocks over 99.8% of light, effectively preventing liquid oxidation and spoilage, and extending the shelf life of wine, edible oil and other liquids by up to 18 months.

2. Reliable Leakproof Design
Equipped with professional food-grade spout valves and butterfly valves, the bag forms an airtight seal after closing. The reinforced thermal bonding at the valve and bag body connection ensures no liquid leakage during transportation, handling or repeated dispensing, suitable for bulk liquid storage and use.

3. Versatile Material & Structure
It offers dual material options of aluminized foil and transparent PE, with multi-layer composite structures like VMPET/PE and PA/PE. The aluminized type excels in light blocking, while the transparent type allows visual inspection of liquid volume, meeting diverse packaging needs for food, industrial and daily chemical liquids.

4. Strong Mechanical Durability
With a tensile strength of ≥30MPa and elongation at break of ≥45%, the bag resists tearing and puncturing during handling. The thermal bonding strength of the bag body and mouth reaches ≥40N/15mm, ensuring structural stability even under heavy load or long-distance transportation.

5. Fully Customizable Solutions
We provide customization of bag size, thickness, valve type and position, as well as logo/pattern printing on the bag and outer box. It also supports personalized design of single-material recyclable structures, adapting to the packaging standards and brand needs of different regions and industries.

6. Eco-Friendly & Recyclable
The single-material PE structure is fully recyclable, and the aluminized composite material reduces plastic waste compared with traditional glass and plastic bottles. It complies with global low-carbon environmental protection requirements and helps reduce the carbon footprint of liquid packaging.
