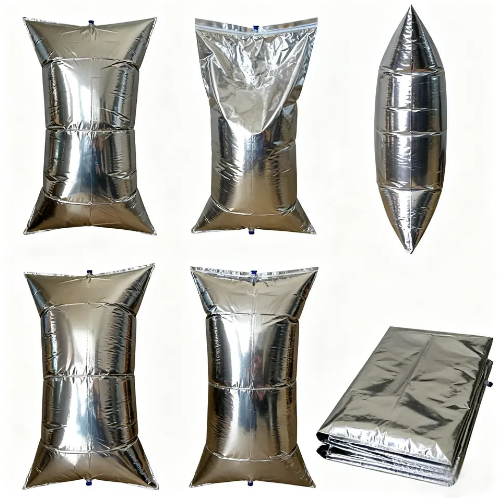

Pin Cushion Type Liquid Ton Bag Aluminum Foil High Barrier For Liquid Packaging With PE PA VMPET Material
Pin Cushion Type Liquid Ton Bag Aluminum Foil High Barrier for Liquid Packaging With PE PA VMPET Material
We independently research and development of domestic automatic ton bag machine line, the width of the machine is 2.5 meters, and has the patent of single and double mouth and large diameter filling mouth cover, the ton bag has advantages of high tensile strength, puncture resistance, clean storage and transportation, low cost, it mainly used for packing and storing syrup, dairy products, daily chemicals, non-hazardous chemicals, it can effectively reduce the costs of product packaging and transportation.
| Product Type | Liquid Ton Bag/Pin-Cushion Type Ton Bag |
| Material Structure | PA/PE/PE; VMPET/PE/PE; PE/PE/PE; VMPE/PE/PE |
| Core Features | High tensile strength, anti-abrasion, high barrier, leakproof, clean storage, oxygen/moisture/chemical resistance, recyclable, radiation sterilization ≥15kGy, heat resistant ≤80℃ |
| Structural Patent | Single port design, large-caliber filling port cover patent, stable structure |
| Application | Syrup, dairy products, daily chemicals, non-hazardous chemicals, liquid sugar, jam, egg liquid, concentrated juice, lubricant, binder, latex, detergent, wine, mineral water, engine oil, glue |
| Capacity Advantage | Large-volume liquid storage (customizable capacity), reduce packaging & transportation costs, low cost, efficient storage & transportation, easy operation, long service life |
| No | Inspection item | Standard requirement | |||||
| Aluminized PET bag | Aluminium foil bag | Nylon bag | Normal PE bag | Aluminized PE bag | High barrier transparent PE bag | ||
| 1 |
Oxygen permeability |
≤1.0 | ≤0.5 | ≤100 | - | ≤1.0 | ≤0.5 |
| 2 | Water vapor permeabilityg/(m²·24 h) | ≤0.5 | ≤0.5 | ≤10 | ≤15 | ≤0.5 | ≤0.5 |
| 3 | Light transmittance% | ≤0.2 | ≤0.2 | - | - | ≤0.2 | - |
| 4 | Tensile strength (vertical/horizontal)MPa | ≥30 | ≥30 | ≥30 | ≥20 | ≥20 | ≥20 |
| 5 |
Breakage nominal strain(vertical/horizontal) |
≥45 | ≥45 | ≥45 | ≥200 | ≥200 | ≥200 |
| 6 | Peel strength N/15 mm | ≥3.0 | ≥3.0 | ≥3.0 | - | ≥3.0 | ≥3.0 |
| 7 | Thermal bonding strength N/15 mm | ≥40 | ≥40 | ≥40 | ≥15 | ≥15 | ≥15 |
1. High Barrier Performance
This pin-cushion type liquid ton bag is made of PA, PE and VMPET composite materials, which has excellent barrier properties against oxygen, moisture and light. It can effectively prevent the packaged liquid from being oxidized and deteriorated, and maintain the original quality of the liquid for a long time.
2. Strong Mechanical Strength
With high tensile strength (≥30MPa) and excellent puncture and abrasion resistance, the bag can withstand the extrusion and collision during transportation and handling. It is not easy to break or leak, ensuring the safe transportation of liquid products.
3. Good Temperature Adaptability
The bag is resistant to high temperature up to 80℃ during filling, and can undergo radiation sterilization of ≥15kGy. It is suitable for the packaging of high-temperature filled liquids and food-grade liquids that require sterilization.
4. Diversified Customization
We support customized services such as different sizes, thicknesses and logo printing according to customers' needs. The structural design can also be adjusted to match different filling equipment and storage scenarios.
5. Wide Industrial Application
It is widely used in packaging food liquids like syrup, dairy products and wine, as well as industrial chemicals such as lubricants, detergents and engine oil. It meets the packaging requirements of various non-hazardous liquid products.
6. Cost-Effective Advantages
The bag adopts a lightweight and durable design, which reduces the cost of packaging materials and transportation. Meanwhile, it can be recycled properly, further lowering the comprehensive use cost for enterprises.
Our advantages are as below:
1,We Manufacture the full process, from Raw materials to finished products, no outsourcing, minimize your cost
2,Our factories have more than 100 advanced machines, for high efficiency
3,Over 10 years experience, offering you more professional service.
4,ISO, SGS, ROHS FSC certified company, National CNAS certified laboratory, for quality guaranteed
5,Partner from worldwide famous brands.
6,Wide range of products available,one-step service, and saving shipping costs.
