The main application fields of Plastic PVC pelletizer are as follows:

Features Specifications:
Plastic PVC pelletizer making machine is mainly used to produce CPVC granules, PVC granules, soft PVC granules, transparent PVC granules. This PVC compounding granulating line adopts advanced design concept to ensure the efficient extrusion of PVC material, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

Components of PVC extruder pelletizer machine:
A1. Conical twin screw extruder:Using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.
For CPVC material, the extruder adopt hollow screw, which has oil temperature control system for both screw.
A2. Extrusion Mould:Special mould for PVC and CPVC material, which ensure the pressure of extrusion.

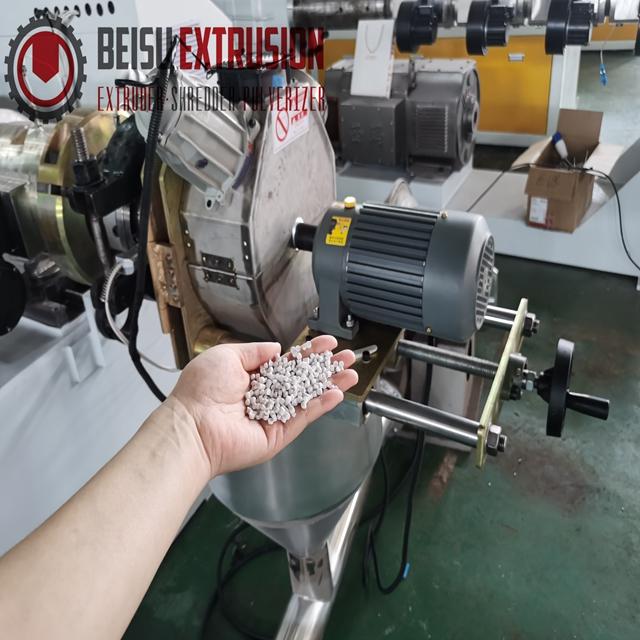

A3. Pelletizer:With hot die face cutter. Pelletizer adopt 4P motor which ensure the pelletizing speed. The pelletizing speed is controlled by inverter
A4. Air blowing system:Two stage air blowing system. The granules will be cooled during the air tranportation.
A5. vibrator:To select the good granules.

Process flow:

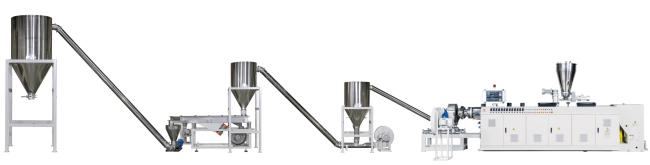

Raw material+ additive → Mixing → Conveying feeding → Force feeding → Conical twin screw extruder → Blowing hot-cutting mould → Cyclone separator → Vibrating screener → Blowing system → Storage hopper → Finished product packing

Technical datas of Plastic PVC pelletizing line:

Features of PVC pellet machine:
A1. PVC pellet making machines are specifically designed to convert PVC resin into small, uniform pellets.
A2. These machines typically consist of a feeding system, extruder, pelletizing system, and cooling system.
A3. The feeding system of a PVC pellet making machine ensures a steady supply of PVC resin into the extruder.
A4. The extruder then melts and homogenizes the PVC resin, creating a molten PVC mixture.
A5. The molten PVC mixture is then forced through a die, which shapes it into cylindrical strands.
A6. These strands are then cut into small, uniform pellets by the pelletizing system of the machine.
A7. The pellets are then cooled down to solidify and stabilize their shape and size.
A8. PVC pellet making machines are widely used in industries such as plastics manufacturing, construction, and packaging.
A9. The pellets produced by these machines can be used for various applications, including injection molding, extrusion, and compounding.
A10. PVC pellet making machines are known for their efficiency, reliability, and ability to produce high-quality pellets consistently.





Zhangjiagang Beisu Machinery Co,Ltd is a certified manufacturer, exporter and supplier of

plastic PVC/PE/PP/PET/EVA/ABS processing machinery. Due to our constant commitment to

extrusion technology, we have emerged as a leading manufacturer of Plastic Extrusion

Machinery for PVC pipes Extrusion Line, HDPE pipes Extrusion Line, PVC compounding

Extruder, PPR Pipes Extrusion Line, PVC profiles Extrusion Line.

Especially High speed Plastic mixer, PVC compounding mixer, SPC mixer.WPC mixer,Plastic Granulating and Pelletizing Line,Plastic pvc pelletizing machine,Soft PVC shoes granulator, PVC compounding pelletizer and Plastic PVC pulverizer, PVC miller,SPC milling machine, WPC pulverizer, SPC pulverizer, PE pulverizer,LDPE pulverizer,PET pulverizer,ABS pulverizer,HDPE pulverizer,Plastic pulverizer, Plastic milling machine, Plastic miller machine,Plastic Crusher,PVC crusher,PE crusher,PP shredder, Plastic PVC Shredder etc for a wide range of extrusion processes.

Installation Instructions

1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.

Our Advantages

1.Reliable

• Most popular design with years' verification.

• Mature supply chain for raw materials with strict quality assurance.

• International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.

2. Economy

• BEISU Stable technology commercialized in China.

• High efficiency mixing performance.

• Cost effective solutions.

After Sales Service

Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
