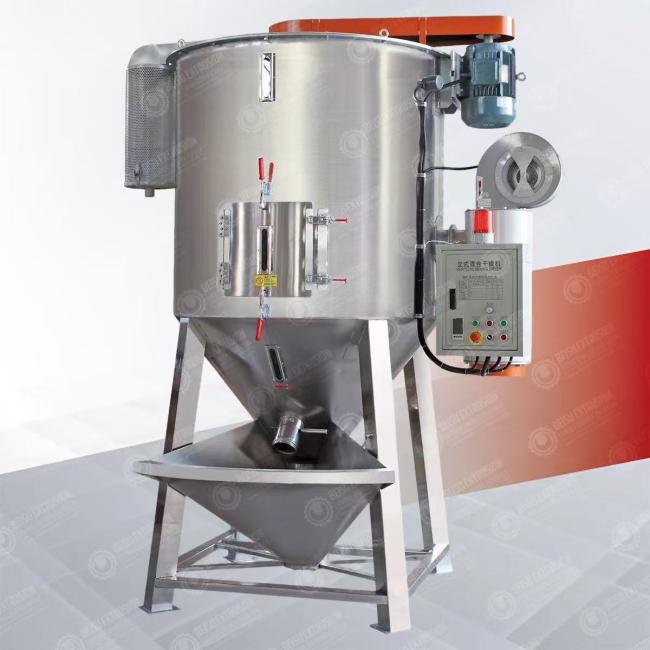

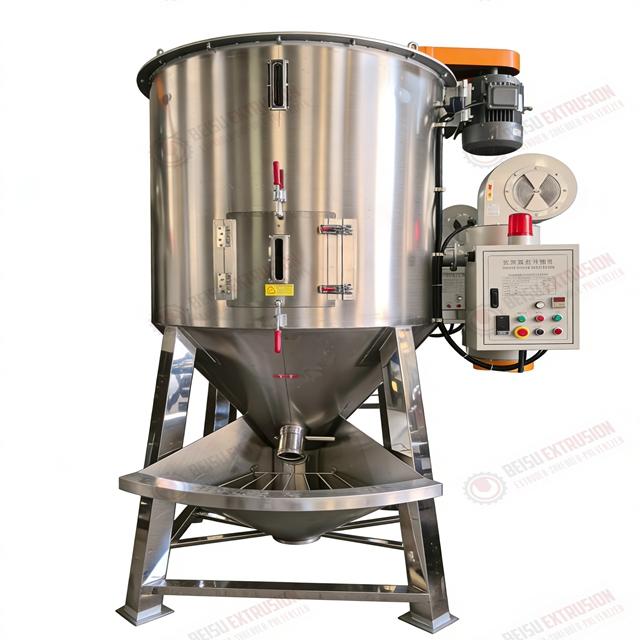

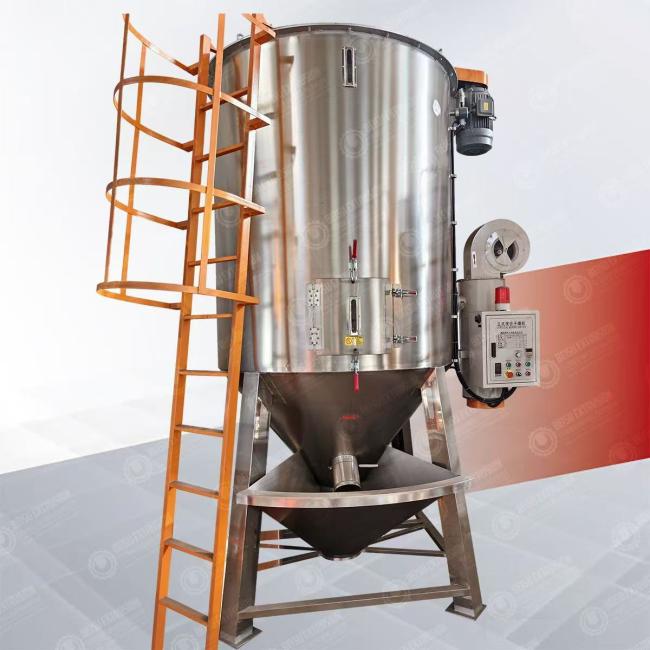

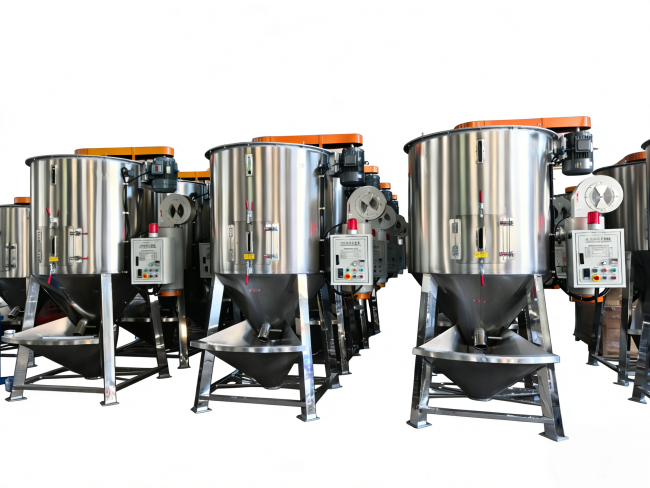

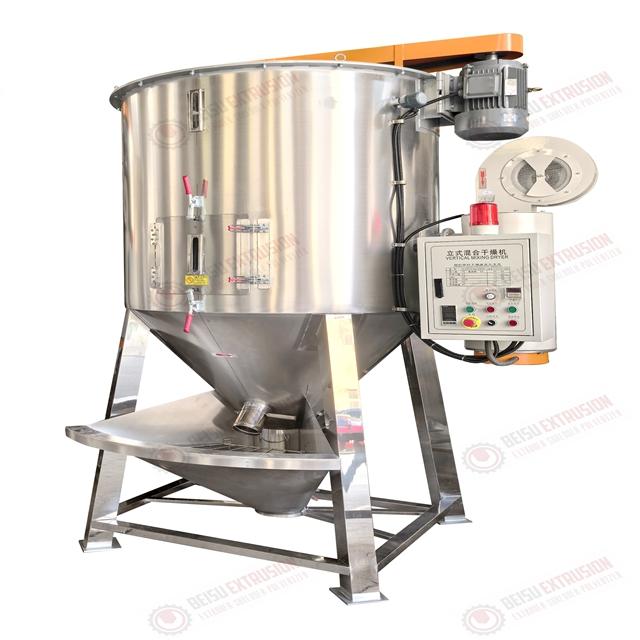

304 Stainless Steel Vertical Drying Mixer with 3KW Motor Power for Dual Function Drying and Mixing Plastic Granules

Vertical drying and mixing machines (also commonly called lifting and stirring dryers, plastic granule mixers) are core auxiliary equipment in the plastic processing industry, primarily performing two functions: drying and mixing/coloring of plastic granules. They are mainly used in conjunction with extruders, injection molding machines, and granulators, processing crushed materials, plastic granules, PET flakes, and other plastic raw materials. They are an important auxiliary machine in plastic processing production lines.



Key features of the vertical drying and mixing machine:

A1. Two-in-one function: It can simultaneously perform hot air drying of plastic particles and uniform mixing with functional masterbatches and fillers, eliminating the need for separate drying and mixing equipment.

A2. High working efficiency: The material is repeatedly lifted, scattered, and circulated by spiral blades, resulting in uniform mixing and short drying time, and preventing material clumping.

A3. Practical design: The parts in contact with the material are mostly made of stainless steel, which is corrosion-resistant and easy to clean; the vertical structure occupies a small footprint, and some models have casters for easy movement.


BS-1000 Model Key Parameters:
--Motor Power: 3KW
--Fan Power: 1.5KW
--Heating Power: 36KW
--Volume: 2000L
--Barrel: 2mm 304 Stainless Steel
--Main Shaft: 60×4mm Stainless Steel Seamless Pipe
--Center Lifting Pipe: 219mm Stainless Steel Pipe
--Center Support: 32mm Stainless Steel Pipe
--Blades: 3mm Stainless Steel
--Frame: 100x100x2mm Stainless Steel Square Tube
--Bearings: LK
--Electrical Components: Tianzheng, Omron temperature controller
--Equipped with drying time setting and over-temperature controller
--Rotation Speed: 350 rpm
--Equipped with rotary level alarm
--Safety guard
--Dust collection system
--Dimensions: 1600mm×1900mm×2750mm



• For the loose cargo we will packing by wooden box.
• For the full container loading we are packing the machine by film and some on pallet accordingly.
• We can ship the goods by air or by sea.
• We will send pictures of cargo loading to our client to check and keep recording.
• We can send cargo to client's warehouse to loading.

• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
