Plastic UPVC/PVC/WPC Resin Powder Mixer/Dry Blender/Ribbon/Turbo Mixing /High Filler Hot Speed Vertical/ Horizontal Cooling/Color Mixer
The PVC high-speed mixer is primarily used for blending PVC powder, calcium carbonate (CaCO3), and various additives. It is widely utilized in the raw material preparation stages for applications such as PVC pipes and profiles, SPC flooring, and cable manufacturing.

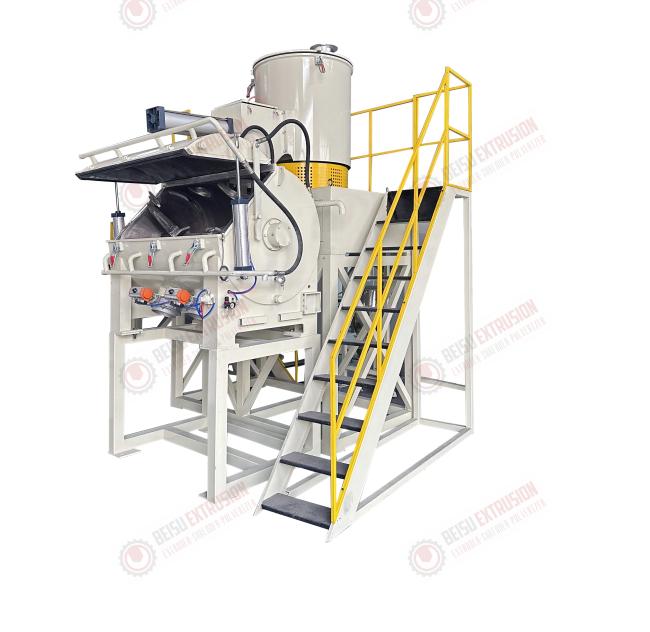

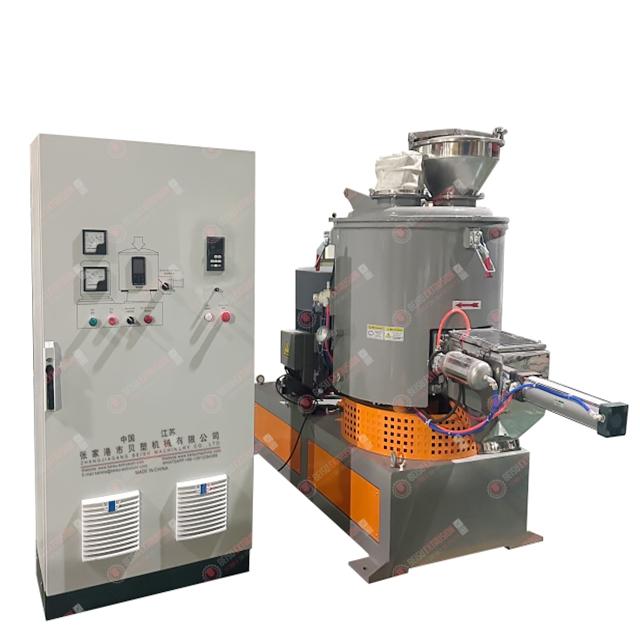

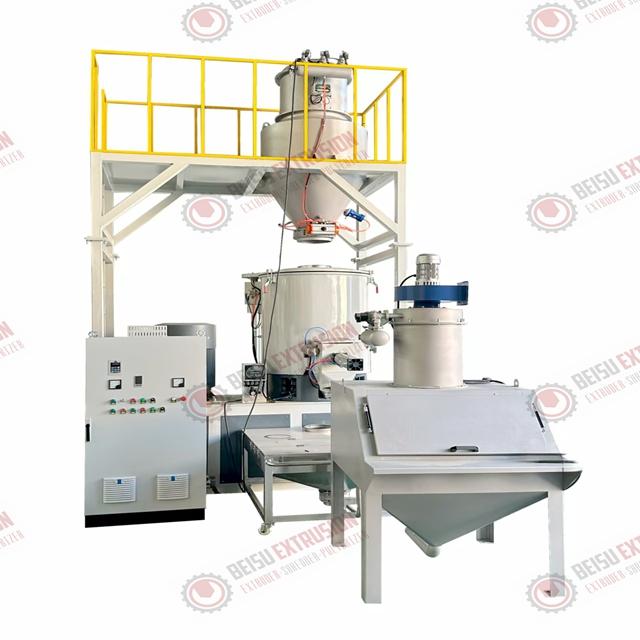

The complete PVC mixing unit consists of a high-speed mixer (hot mixer), a cooling mixer, and an electrical control cabinet.
The control system incorporates electrical components from internationally renowned brands—such as Internationally renowned brand, ABB, and Omron—and is equipped with high-quality pneumatic components. Furthermore, we can provide intelligent control solutions based on Internationally renowned brand touch screen and PLC technology, tailored to your specific requirements.
| Hot Mixer | |
| Total Volume | 500L |
| Effective Volume | 375L |
| Batch Weight | 125~150kg/batch |
| Mixing Time | 8~12min |
| Throughput(PVC) | 750~900kg/hr (Varies as per processing and formula) |
| Heating Method | Self-friction(optional with external heating) |
| Measure of Temperature | Thermocouple |
| Material of Mixing Tool | Stainless steel, SS304 |
| Configuration of Mixing Tool | 3-layer design |
| Rotation Speed of Mixing Tool | 430/860RPM |
| Material of Main Shaft | 40CrHRC28-32 |
| Sealing Method | Quadruple framework sealing configuration |
| Lubrication Method | Grease |
| Lid Open | Air cylinder |
| Lid Close | Clip |
| Lid Protection | Limit switch |
| Lid Material | Cast aluminum |
| Inner Wall Layer of Pot | Stainless steel, SS304, thickness 6mm |
| Inner Bottom Layer of Pot | Stainless steel, SS304, thickness 8mm |
| Outer Layer of Pot | Carbon steel, thickness 5mm |
| Pot Jacket | Filled with insulation cotton(optional with oil circulation) |
| Discharge Outlet | Equipped with jet cleaner and flow back nozzle |
| Motor Power | 75kW |
| Speed Control | Inverter, ABB |
| Cold Mixer | |
| Total Volume | 1000L |
| Effective Volume | 640L |
| Cooling Method | Cold water circulation |
| Measure of Temperature | Thermocouple |
| Material of Mixing Tool | Stainless steel, SS304 |
| Rotation Speed of Mixing Tool | 60RPM |
| Configuration of Mixing Tool | 1-layer design |
| Material of Main Shaft | 40CrHRC28-32 |
| Sealing Method | Quadruple framework sealing configuration |
| Lubrication Method | Grease |
| Lid Open | Air cylinder |
| Lid Close | Clip |
| Lid Protection | Limit switch |
| Lid Material | Cast aluminum |
| Inner Wall Layer of Pot | Stainless steel, SS304, thickness 6mm |
| Inner Bottom Layer of Pot | Stainless steel, SS304, thickness 8mm |
| Outer Layer of Pot | Carbon steel, thickness 5mm |
| Pot Jacket | Water circulation |
| Discharge Outlet | Equipped with jet cleaner and flow back nozzle |
| Motor Power | 18.5kW |
| Electrical&Control Component | |
| Power Supply | 380V, 50Hz or custom |
| Control | Electrical control cabinet |
| Motor | SIMA(top Chinese brand) |
| Inverter | ABB |
| Temperature Meter | OMRON |
| Other Main Component | Internationally renowned brand |
Features of Mixers:
A1: All important parts (bow, mixing tool, control) are manufactured in our company, which ensure the quality of machine.
A2: All material in contact with product is SUS304 or aluminum alloy and the product will not be contaminated.
A3: High cooling efficiency, short mixing time, easy and convenient to clean high output.
A4: Mixing tool can be designed according to different application.
A5: Mixing tool coated with wear-resistant material, which can increase service life and past dynamic and balance test, running smoothly.
Details capacity mixers for choose :
| Model | Capacity (L) | Effective capacity (L) | Motor power (kw) | Heating cooling method | Discharge method | Water consumption(t/h) | Main shaft speed | Weight (kg) |
| SRLW 200/500 | 200/500 | 150/375 | 30/42/7.5 | electricity, self-friction/water cooling | pneumatic | 3 | 500/1000/100 | 2500 |
| SRLW 300/600 | 300/600 | 225/420 | 40/55/11 | electricity, self-friction/water cooling | pneumatic | 4 | 500/1000/100 | 2900 |
| SRLW 300/1000 | 300/1000 | 225/640 | 40/55/11 | electricity, self-friction/water cooling | pneumatic | 5 | 500/1000/100 | 3200 |
| SRLW 500/1000 | 500/1000 | 375/640 | 55/75/15 | electricity, self-friction/water cooling | pneumatic | 6 | 430/860/100 | 3600 |
| SRLW 500/1600 | 500/1600 | 375/1000 | 55/75/18.5 | electricity, self-friction/water cooling | pneumatic | 7 | 430/860/80 | 4000 |
| SRLW 800/2000 | 800/2000 | 520/1200 | 83/110/22 | electricity, self-friction/water cooling | pneumatic | 8 | 375/750/80 | 4800 |
| SRLW 800/2500 | 800/2500 | 520/1500 | 83/110/22 | electricity, self-friction/water cooling | pneumatic | 9 | 375/750/80 | 5000 |
| SRLW 1000/3000 | 1000/3000 | 1650/1950 | 90/132/30 | electricity, self-friction/water cooling | pneumatic | 11 | 300/600/65 | 6000 |
| SRLW 1600/4000 | 1600/4000 | 1040/2700 | 2-8/110/37 | electricity, self-friction/water cooling | pneumatic | 13 | 375/750/80 | 6500 |
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1. How many electric, water, air need for the machines?
BEISU: technical department supply the whole layout for workshop details.
2. Can I operate machine if don't have experienced engineers?
BEISU: (1) short-time engineers to customer company (5-15 days)
(2) Year-time working as requirements
3. Any quality checking before shipment?
BEISU: 100% confirm, run and test machines before shipment with quality certificate.
4. How long is the guarantee?
BEISU: 12 months since the first day customer operates (except wear parts)
5. How can u help us when face some technical problem?
BEISU: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
6. Where can we get spare part?
BEISU: we choose International Brand that customer can find it in everywhere, such as Internationally renowned brand,Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
