PET HDPE PP PE Flakes Bottle Plastic Bottle Recycling Machine Scrap Drying Dewatering
Waste Plastic PET HDPE PP PE Flakes Bottle Scrap Drying Dewatering Recycling Washing Line

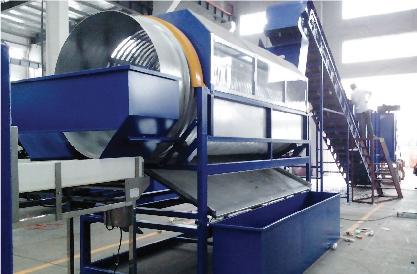

PET bottle washing and recycling line
PET bottle chip crushing and cleaning equipment, fully automatic production line, is specially used for crushing and cleaning PET plastics such as waste mineral water bottles. This equipment unit meets the national energy-saving awareness, promotes environmental protection, and effectively improves resource recycling. .
Main features of PET bottle washing and recycling line:
Low energy consumption, high output, practical and reliable. The new rinsing device can be used with the washing, which greatly improves the production efficiency and cleans the washing material.
Process Flowchart:
Feeding Conveyor---Plastic label remover----Plastic Crusher machine--- Flakes washing system(such as hot washer, friction washer, floating washer, high speed friction washer, horizontal spray washer etc.)---Dewatering machinery ---Hot air drying system --- Packing system
Main Technical Parameter for your reference:
| Specifications | 300KG/hour | 500KG/hour |
| Belt conveyor | power: 1.5 KW | power: 1.5 KW |
Strong crusher |
power: 37KW The sword: 6 Fixed knife: 4 |
power: 55KW The sword: 8 Fixed knife: 4 |
| High-speed friction cleaner | power: 5.5 KW | power: 7.5 KW |
| Precipitation rinse pool | needle wheel motor 3KW: line | Dial the line pin wheel motor 3KWx2 |
| Spiral feeder | power: 1.5 KW | power: 2.2 KW |
| steam | power: 7.5 KW | power: 11KW |
| High-speed friction cleaner | power: 5.5 KW | power: 7.5 KW |
| Precipitation rinse pool | needle wheel motor 3KW: line | Dial the line pin wheel motor 3KWx2 |
| Centrifugal dehydrator | power: 30KW | power: 45KW |
| Pipelines dry drying system | power: 30KW | power: 45KW |
| Storage bin | Cubage: 1M3 | Cubage: 1M3 |
