PET PP Bottles Plastic Recycling Washing Machine Scrap Plastic Compactor
Scrap Plastic Compactor PET PP Bottles Recycling Machine Hot Washing Line
PP/PE washing line parameter specifications
The output of this set of equipment: 300-1000kg/h (can be customized according to customer requirements)
PP/PE washing line application range
This set mainly deals with PP/PE waste plastic film, PP/PE plastic garbage mixture, waste PP woven bag (cement bag, space bag, snake skin bag), PP/PE plastic bag, household garbage plastic, PE plastic garbage bag, Waste agricultural film mulch film, PVC agricultural film.
PP/PE washing line works

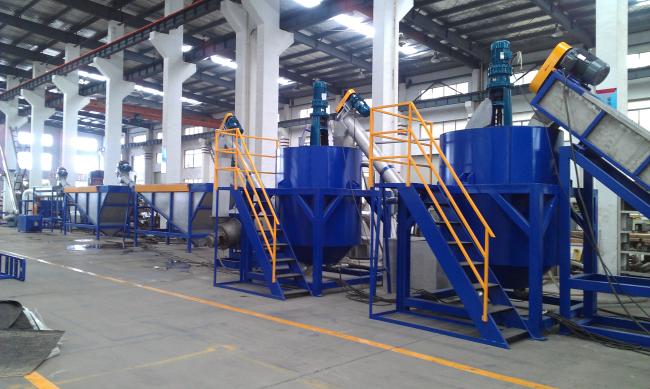

This set of equipment mainly consists of: conveyor belt, crusher (pulverizer), friction cleaning machine, sedimentation rinsing tank, chain material excavator, plastic squeeze dry dewatering machine, control cabinet and so on. The waste plastics are sorted (sorted), crushed (with water crushing), friction cleaning, rinsing, squeezing and dewatering, etc., and the entire production line starts from waste to finished product, and the waste plastic products are cleaned very efficiently. Dirty agricultural film, waste packaging materials. Easy to operate, high efficiency, environmental protection and energy saving.
Production Line List for your reference:
| Item | Components | Qty | |
| 1 | Belt conveyor | 1 set | Equipped with anti-slide device on the belt surface Auto remove metal and alloy steel, aluminum and so on |
| 2 | Label Remover | 1 set | |
| 3 | Manual sorting machine | 1 set | |
| 4 | Belt conveyor | 1 set | 1.Height of conveyor can be adjusted. 2.Equipped with wheels. |
| 5 | Crusher | 1 set | 1. hopper of crusher open ways : by motor drive: 1.5kw 2.Material of blade:SKD-11 |
| 6 | Screw feeder | 1 set | |
| 7 | Float washing tank | 1 set | 1.Washing roller motor: 2.2kw×4+3KW 2.Qty of pushing roller : 5set |
| 8 | Hot washing machine | 1 set | Steam heating or electric heating(heat power:60kw) |
| 9 | Screw feeder | 1 set | |
| 10 | Hot washing machine | 1 set | |
| 11 | Screw feeder | 1 set | 1. Parts contact with material are made of stainless steel |
| 12 | High speed friction washer | 1 set | 1. Rotary speed of screw: 1220rpm |
| 13 | Screw feeder | 1 set | |
| 14 | Float washing tank | 1 set | |
| 15 | Float washing tank | 1 set | |
| 16 | Vertical dewatering machine | 1 set | The dewatering rate: more than 93% |
| 17 | Heating pipe system(with blower) | 1 set | Pipeline length :18 m Rate of including water : less than 3 % |
| 18 | Zig Zag Label separator | 1 set | |
| 19 | Blower and storage silo | 1 set | Usage : for temporary storage for flakes. Made of SUS304. |
| 20 | Electrical control panel | 1 set | |
| Total | 20 sets | ||
