SPC Flooring Extrusion Production Line 360 Kw Conical Twin Screw 28*5*3.5M
Price:
NEGOTIATION
MOQ:
1SET
Delivery Time:
45 WORKING DAYS
Brand:
Acemien
Product Description
SPC Flooring Extrusion Machinery Production Line

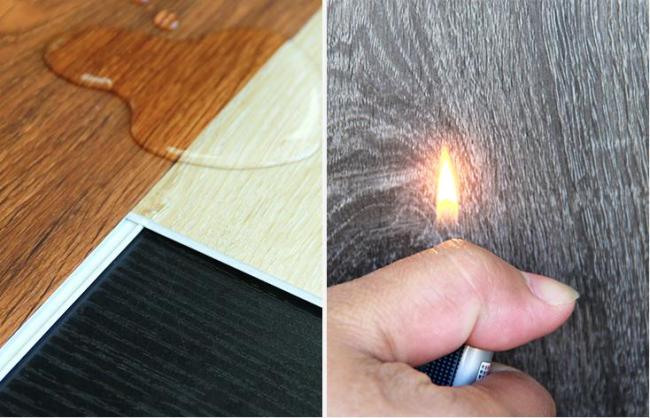

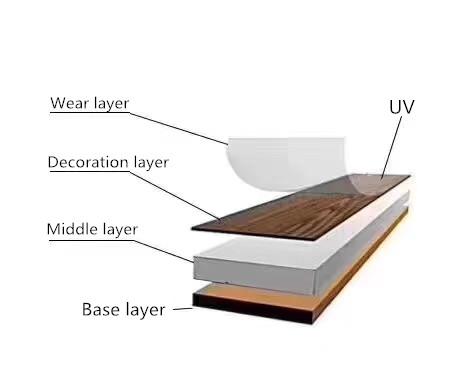

SPC stone plastic flooring production line is PVC and calcium powder as the main raw material to produce SPC stone plastic floor equipment. The raw material is produced by plasticizing extrusion sheet, four-roll calendering hot-dipping color film decoration layer and wear-resistant layer, doing various relief wood patterns and various patterns, directly hot-dipping the bottom cushion muffler layer, and then by UV wear-resistant treatment, cutting and grooving. The biggest difference between it and traditional flooring is environmental protection, wear resistance and fire prevention. Stone-plastic floor is made of PVC powder, additives and other high-temperature calendering, surface wear-resistant layer, can not contain formaldehyde and other harmful substances, is 100% formaldehyde-free environmental protection floor. At the same time, stone flooring does not need to cut down trees, destroying the ecology, so it has won the title of "new environmental protection materials", which is also a great advantage of stone flooring compared with traditional paving.

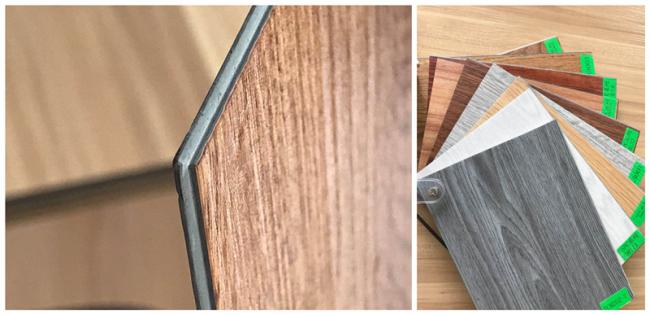

SPC flooring(also called rigid vinyl plank) is very popular among developed countries such as: Europe and the United States. With its excellent stability and durability, SPC flooring not only solves the problem of damp deformation and mildew of solid wood flooring, but also solves the formaldehyde problem of other decoration materials. It is suitable for indoor decoration, hotel, hospital, shopping mall and other public places.
finished floor width:970mm or 1220mm,thikness:2-8mm;
raw material:PVC/CACO3/addtive;
max capacity:800kgs/hour;
average power:120kw
finished floor width:970mm or 1220mm,thikness:2-8mm;
raw material:PVC/CACO3/addtive;
max capacity:800kgs/hour;
average power:120kw
SPC floor tile extrusion machine
| NO. | Machine Name | Qty. |
| 1 | SJSZ92/188 Conical twin screw extruder | 1 set |
| 2 | Hanger plate mold | 1 set |
| 3 | Four-roll calender | 1 set |
| 4 | Cooling bracket + trimming device | 1 set |
| 5 | Four-site coating + correction device | 1 set |
| 6 | Traction machine | 1 set |
| 7 | Precision cutting plate machine | 1 set |
| 8 | Feeding device | 1 set |
Specifications for SPC floor machines
| 1 | Use raw materials | PVC plus accessories |
| 2 | Production line speed | 0-6m / min |
| 3 | Maximum yield | 700-800kg / h |
| 4 | Total installed power | 278kw |
| 5 | Actual energy consumption | 140kw |
| 6 | Air consumption | 0.4m3 / min |
| 7 | Air pressure | 0.6mpa |
| 8 | Water circulation | 0.3m3 / min |
| 9 | Working temperature | 0-40 ° C |
