PVC Floor Extruder Tile Production Line , SPC Plastic Flooring Making Machine
Price:
NEGOTIATION
MOQ:
1SET
Delivery Time:
45 WORKING DAYS
Brand:
Acemien
Product Description

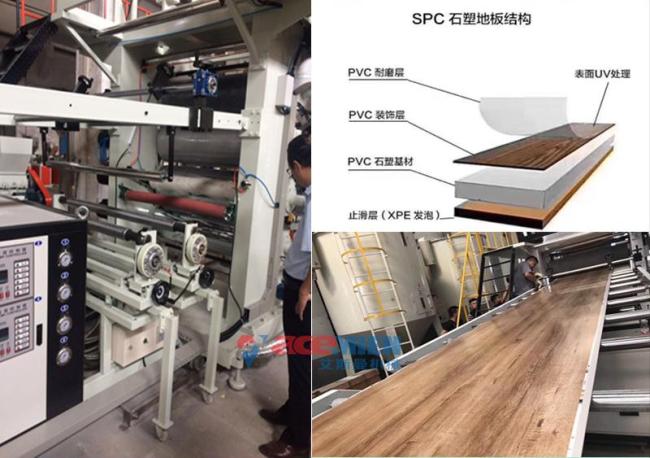

SPC Plastic Flooring Making Machinery PVC Floor Tile Extruder production line
SPC flooring(also called rigid vinyl plank) is very popular among developed countries such as: Europe and the United States. With its excellent stability and durability, SPC flooring not only solves the problem of damp deformation and mildew of solid wood flooring, but also solves the formaldehyde problem of other decoration materials. It is suitable for indoor decoration, hotel, hospital, shopping mall and other public places.
SPC(stone plastic composite) flooring is a new type of environmental protection floor developed based on high technology.
Its raw materials are natural stone powder and PVC resin powder, after extrude the floor base board, wear-resistant layer and color film are laminated to the base board via the 4rollers calendar through heating, no glue is used in the whole process..
It has the characteristics of zero formaldehyde, anti-mold, moisture-proof, fire-proof, anti-insect, simple installation and so on.
finished floor width:970mm or 1220mm,thikness:2-8mm;
raw material:PVC/CACO3/addtive;
max capacity:800kgs/hour;
average power:120kw
Its raw materials are natural stone powder and PVC resin powder, after extrude the floor base board, wear-resistant layer and color film are laminated to the base board via the 4rollers calendar through heating, no glue is used in the whole process..
It has the characteristics of zero formaldehyde, anti-mold, moisture-proof, fire-proof, anti-insect, simple installation and so on.
finished floor width:970mm or 1220mm,thikness:2-8mm;
raw material:PVC/CACO3/addtive;
max capacity:800kgs/hour;
average power:120kw
SPC floor tile extrusion machine
| NO. | Machine Name | Qty. |
| 1 | SJSZ92/188 Conical twin screw extruder | 1 set |
| 2 | Hanger plate mold | 1 set |
| 3 | Four-roll calender | 1 set |
| 4 | Cooling bracket + trimming device | 1 set |
| 5 | Four-site coating + correction device | 1 set |
| 6 | Traction machine | 1 set |
| 7 | Precision cutting plate machine | 1 set |
| 8 | Feeding device | 1 set |
Specifications for SPC floor machines
| 1 | Use raw materials | PVC plus accessories |
| 2 | Production line speed | 0-6m / min |
| 3 | Maximum yield | 700-800kg / h |
| 4 | Total installed power | 278kw |
| 5 | Actual energy consumption | 140kw |
| 6 | Air consumption | 0.4m3 / min |
| 7 | Air pressure | 0.6mpa |
| 8 | Water circulation | 0.3m3 / min |
| 9 | Working temperature | 0-40 ° C |
FAQ
1. Q: Are you an industry manufacture factory or a foreign trade company?
A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China.
A: Loading Port: Shanghai by sea or by train.
2. Q: Payment term:
T/T, L/C, West Union, or Cash, etc.
3. Q: Do you have any other services for your products?
A: We have rich experience in manufacturing plastic machinery, so we can manufacture various machines according to customers' requirement.
4. Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
1. Q: Are you an industry manufacture factory or a foreign trade company?
A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China.
A: Loading Port: Shanghai by sea or by train.
2. Q: Payment term:
T/T, L/C, West Union, or Cash, etc.
3. Q: Do you have any other services for your products?
A: We have rich experience in manufacturing plastic machinery, so we can manufacture various machines according to customers' requirement.
4. Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
