Plastic Floor Sheet SPC Flooring Machine Rigid Vinyl Plank Double Screw
Price:
NEGOTIATION
MOQ:
1SET
Delivery Time:
45 WORKING DAYS
Brand:
Acemien
Product Description
Plastic Floor Sheet Machinery SPC flooring machine Rigid Vinyl Plank Machine
The latest gerneration SJSZ92/188 SPC one step flooring extrusion line/rigid vinyl plank production line/making machine:

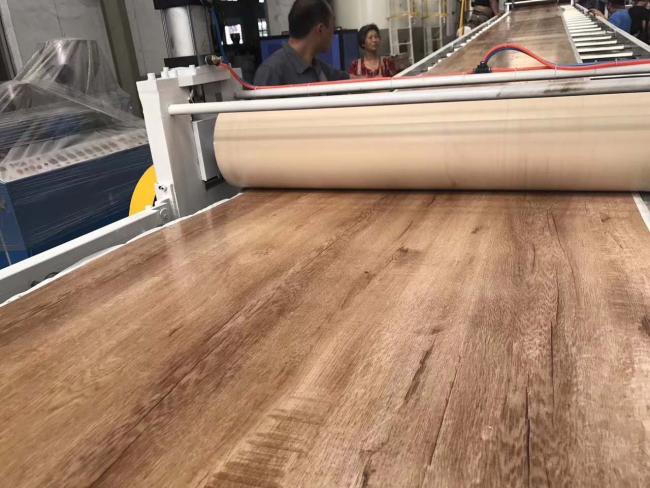

One step extrusion with online decoration film laminate,wear-resisting layer at top and bottom with sound insulation cushion layer.
a. surface can be laminatedwith different design decoration film;
b. laminate wear-resisting layer at top surface;
c. emboss with different design;
d. sound insulation cushion layer(optional)can be laminated at bottom side.

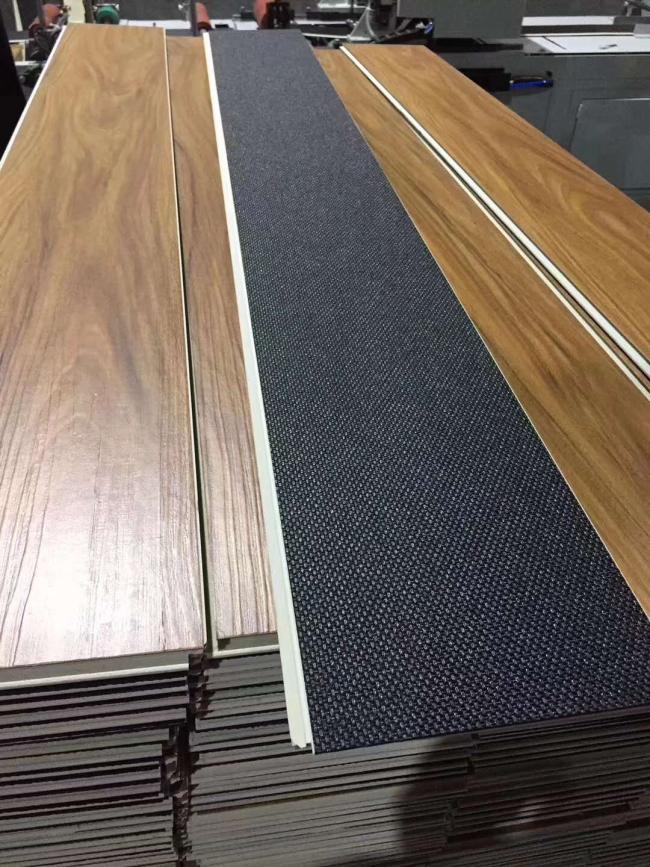

The SPC vinyl flooring plank/SPC flooring board/pvc flooring tile/pvc flooring plank/luxury vinyl plank flooring /waterproof vinyl plank flooring/interlockng pvc floor tile covering produced by SPC flooring vinyl plank extruder SPC floor board making machine is widely used in many different lines for various application including:Department Store,Hotel,Hospital,Restaurant,Bank,Office,Residence
It has the characteristics of zero formaldehyde, anti-mold, moisture-proof, fire-proof, anti-insect, simple installation and so on.
finished floor width:970mm or 1220mm,thikness:2-8mm;
raw material:PVC/CACO3/addtive;
max capacity:800kgs/hour;
average power:120kw
SPC floor tile extrusion machine
| NO. | Machine Name | Qty. |
| 1 | SJSZ92/188 Conical twin screw extruder | 1 set |
| 2 | Hanger plate mold | 1 set |
| 3 | Four-roll calender | 1 set |
| 4 | Cooling bracket + trimming device | 1 set |
| 5 | Four-site coating + correction device | 1 set |
| 6 | Traction machine | 1 set |
| 7 | Precision cutting plate machine | 1 set |
| 8 | Feeding device | 1 set |
Specifications for SPC floor machines
| 1 | Use raw materials | PVC plus accessories |
| 2 | Production line speed | 0-6m / min |
| 3 | Maximum yield | 700-800kg / h |
| 4 | Total installed power | 278kw |
| 5 | Actual energy consumption | 140kw |
| 6 | Air consumption | 0.4m3 / min |
| 7 | Air pressure | 0.6mpa |
| 8 | Water circulation | 0.3m3 / min |
| 9 | Working temperature | 0-40 ° C |
