Double Screw Corrugated Sheet Roll Forming Machine 20mX3mX3m Customized Color
Roof Tile Forming Machine For Plastic Corrugated Roof Tile Product

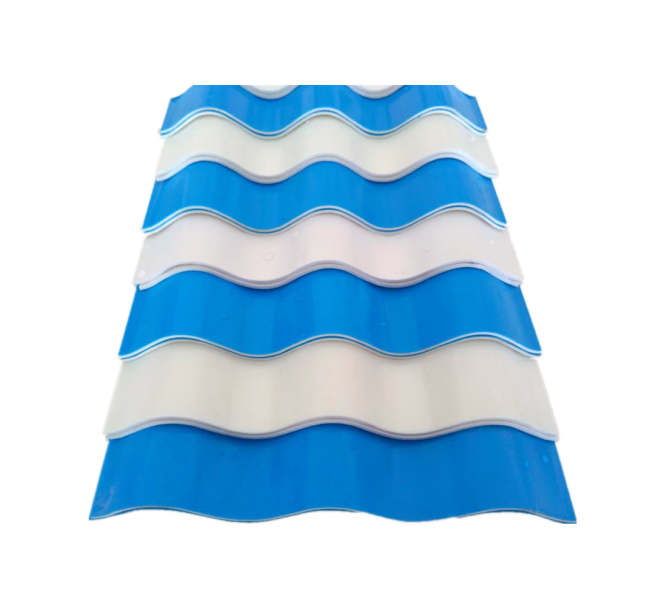

Plastic Corrugated tile are used for Roofing, can be used for factories, warehouses, sheds, farmers market, hoardings, walls, temporary shops, sheds and other very suitable insulation
PVC+ASA glazed/corrugated composite resin tile should be the IDEAL REPLACEMENT of conventional asbestos and metal G.I. sheets which are not resistant to corrosion and weather under the high cost and short service life.
This new PVC composite roof tile production adopted advanced multilayer CO-EXTRUSION technology which well combine the different functions of raw materials(PVC+ASA) so that the tile can be anti-corrosive, fire retardant, eco-friendly, more durable, tenacious, easy to install and move, light weight as well as cost effective in installation (as less steel and less overlap), as per the efficiency and benefits it provides. It can save construction cost up to 50%. It has captured many international certifications for its genius properties.

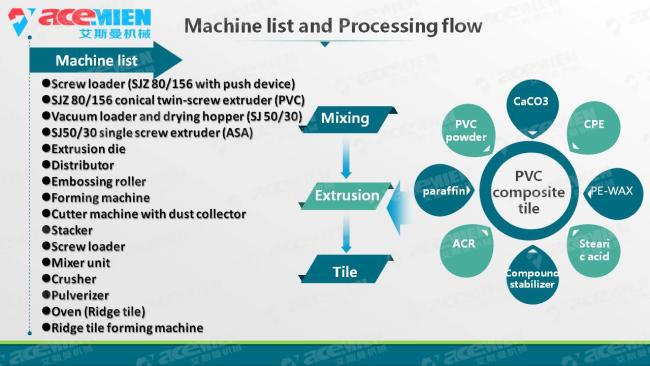

Advantages and photos of machine
| No |
Machine |
Technical specifications |
| 1 | SJZ80/156 conical twin-screw extruder |
Extruder with double screw feed Screw vacuum with double vacuum Five-zone heating Joint venture brand instrumentation Bimetallic treatment screw |
| 2 | SJ50/30 single screw co-extruder | Bimetallic treatment screw |
| 3 | Extrusion mould |
Clothes hanger runner Mirror polishing Cr plating Three dimensional flow simulation software design |
| 4 | Embossing roller |
Hard chromium plating on surface Design of spiral flow passage in roller Motor separately drive to ensure consistent speed |
| 5 | Forming machine |
The module is a one-time die-casting molding Module material LY12 high quality aluminum Advanced machining center,one-time clamping of the module Four cylinder lift more stable |
| 6 | Cutter |
Special positioning device to ensure the cutting accuracy Downside the knife cutting mode running smoothly PLC HMI operation |
| 7 | Oven |
Double door double control, upside and downside at the same time operation Flat open the door, the insulation effect is good and to prevent burns Accurate temperature control is in 1 degree |
