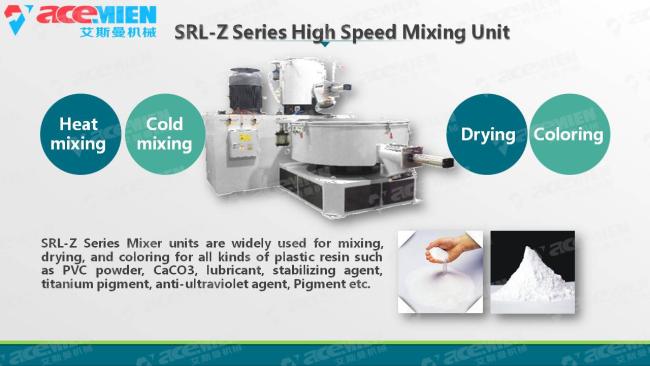

Raw Materials Production Plastic Mixing Machine , PVC High Speed Mixer
Plastic Mixing Machine For Plastic Raw Materials Production
It is used in mixing , drying , coloring and other processing. It is the most ideal equipment for producing shaped plastic material and plastic pipes.
The technology of the mainshaft sealed apparatus has got the state patent and it has two functions of electric and steam.
Two layers of sealing technology is adopted in the pot cover. The opening of the heating mixed cover adopted the airopening device and the opening of the cooling mixed cover adopted pneumatic start.
The electric control section with the programmable logic control adopted well-known imported meters and control components .
| Model |
Capacity for one pot (kg) |
Capacity (kg/hr) |
Hot mixing motor (kw) |
| SRL-Z200/500 | 70 | 350-450 | 30/42 |
| SRL-Z300/600 | 105 | 550-650 | 40/55 |
| SRL-Z500/1000 | 150 | 750-1000 | 55/75 |
| Electrical parts | |
| Temperature control sheet | Omron |
| Air switch | LS |
| breaker | LS |
| relay | Schneider |
| button | Schneider |
