PP PE HDPE Film Plastic Recycling Washing Line 55M*8M*5M Full Automatic
PP PE HDPE FILM Plastic recycling machine Washing line
1. This mineral water bottle recycling mainly used for dealing with waste PET bottle, barrel etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.
3. This PET bottle washing machine is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate,Full automatic.
Working flow of plastic pet bottle recycling machine/plastic recycling plant/pet bottle washing line
Conveying PET bottle→lable remover→ manual sorting table → wet crusher→screw loader →Hot washer→screw loader→high speed friction washer→screw loader→floating washer→screw loader→spray washer → dewater machine → pipe line dryer → label seperator → blower → hopper
Basic specification of plastic pet bottle recycling machine/plastic recycling plant/pet bottle washing line
| Product capacity | 300kg/h | 500kg/h | 1000kg/h | 1500kg/h |
| Workshop(L*W*H) | 40m*7.5m*6m | 42m*10m*6m | 70m*12m*6m | 75m*15m*6m |
| Needed worker | 3-4 persons | 5-6persons | 7-8persons | 10-12persons |
|
Water supply (recycle use) |
2-3ton/h | 3-5ton/h | 7-10ton/h | 10-15ton/h |
|
Final product |
Moisture: max 3% Bulk density: 0.3G/CM3 Particle size: 10-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm |
|||
common configuration of pet bottle plastic recycling machine/plastic washing machine/waste plastic bottle recycling plant
| No. | Equipment Name | Quantity | Comments |
| 1 | Belt conveyor | 1 set | |
| 2 | Bag opener | 1 set | Optional |
| 3 | Belt conveyor | 1 set | |
| 4 | Trommel | 1 set | Optional |
| 5 | Belt conveyor | 1 set | |
| 6 | Manual sorting conveyor | 1 set | Optional |
| 7 | Belt conveyor | 1 set | |
| 8 | Crusher | 1-2 sets | |

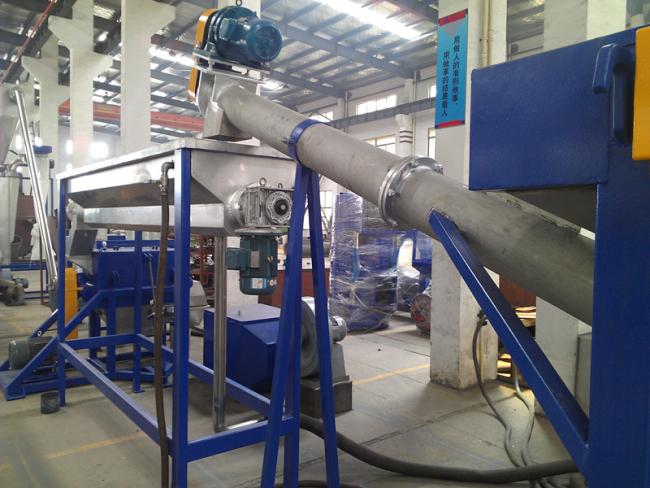

| 9 | Screw conveyor | 1 set | |
| 10 | Washing tank | 1 set | |
| 11 | Screw conveyor | 1 set | |
| 12 | Cooking boiler or Horizontal Hot washer | 1-2 sets | |
| 13 | Screw conveyor | 1 set | |
| 14 | High-speed washer | 1 set | |
| 15 | Washing tank | 1 set | |
| 16 | Screw conveyor | 1 set | |
| 17 | Horizontal Dewatering Machine | 1 set | |
| 18 | Cyclone separator | 1 set | |
| 19 | Drying system | 1 set | |
| 20 | Label separator | 1-2 sets | We can equipped with two label separators in the whole line, one at the beginning, another at the end |
| 21 | Final product silo | 1 set | |
| 22 | Control System | 1 set |
