60000pcs / Day Disposable Surgical Mask Making Machine
Price:
40000USD/set
MOQ:
1set
Delivery Time:
15 working day
Brand:
ACEMIEN
Product Description

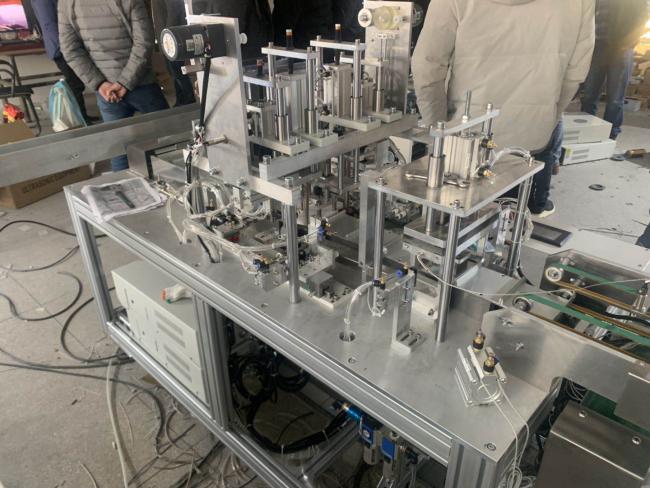

This machine is mainly used for the automatic formation of flat masks: the entire roll of fabric is driven by rollers after

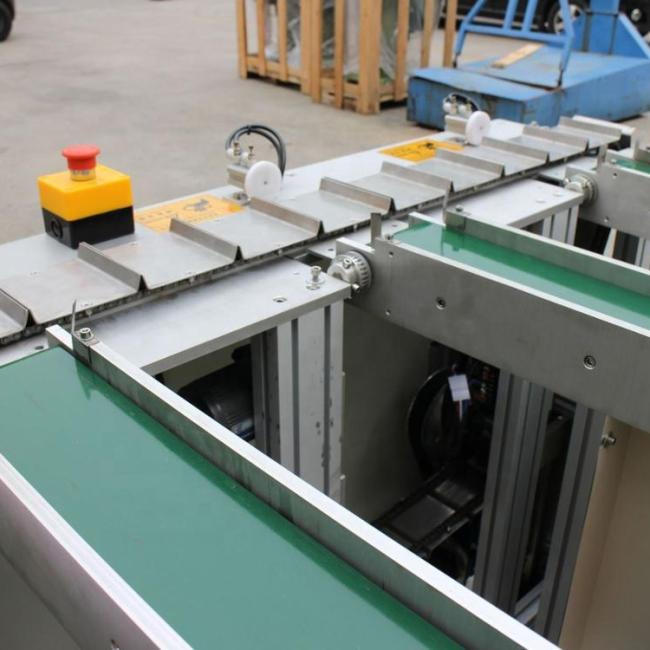

unwinding,and the fabric is automatically folded and hemmed; the entire length of the nose bridge is pulled and unrolled, cut to length and imported into the hemmed fabric, bilaterally Ultrasonic welding to the seal, then ultrasonic side sealing, cutting with a cutter:the mask is conveyed to the two mask earband welding stations through an assembly line, and the final mask is formed by ultrasonic welding. When the mask is made, it passes the assembly line. Conveyed to flat belt line for collection.
| Main Technical Specifications | |
| Main Technical Specifications | 6800*4800*1860mm |
| Voltage | 220V 50HZ |
| Power | Around 8.8KW |
| Air Compressor | 0.5-0.8MPa, Around 305L/Min |
| Working Condition | Working Temperture: 0-40 ℃, Wetness: 5-38%HR,No combustible gas, corrosive gas,Dust-free |
| Capacity | 90-110pcs/min |
