3 Ply N95 Medical Nonwoven Mask Making Machine

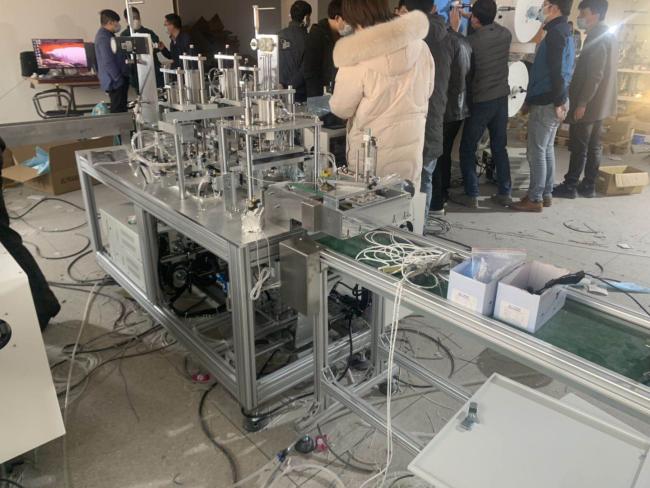

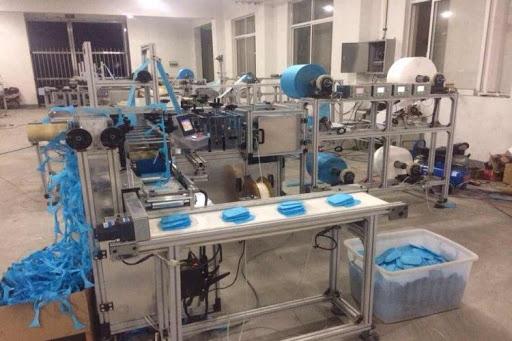

This machine is mainly used for the automatic formation of flat masks: the entire roll of fabric is driven by rollers after
unwinding,and the fabric is automatically folded and hemmed; the entire length of the nose bridge is pulled and unrolled, cut to length and imported into the hemmed fabric, bilaterally Ultrasonic welding to the seal, then ultrasonic side sealing, cutting with a cutter:the mask is conveyed to the two mask earband welding stations through an assembly line, and the final mask is formed by ultrasonic welding. When the mask is made, it passes the assembly line. Conveyed to flat belt line for collection.
The main structure of the equipment:
| No. | Equipment name | Qty | Remark |
|
1
|
Material frame |
1set
|
SS outer layer non woven fabrics Filter non woven fabrics SS inner layer non woven fabrics |
| 2 | Nose wire feeding system | 1set | |
| 3 | Nose bridge strip device,cutter mechanism | 1set | |
| 4 | Mask edge fold mechanism | 1set | Mask pleating system |
| 5 | Mask fan fold mechanism | 2sets | Mask pleating system |
| 6 | Roll welding side seam | 1set | |
| 7 | Roll sealing mechanism | 1set | |
| 8 | Full automatic Ear loop welding machine | 1set | Output :60000pcs/day |
