110KW 350kgs/H 160mm PPR HDPE Pipe Extrusion Line
The Principle of Plastic Pipe Shapping
The main function of the plastic pipe vacuum tank is to calibrate and cool the pipe. With automatic control of water level and water temperature, the sizing sleeve is installed on the vacuum calibration tank and equipped with a pre-cooling chamber. The inlet is "wet inlet type", which means, cold water directly contacts the plastic pipe through the annular channel and the specially designed water distribution plate. The box and water pipes of the plastic tube vacuum setting box are made of stainless steel. The plastic pipe vacuum setting box is mainly matched with plastic extruder, forming, setting die, tractor, cutting machine, and turning stacking device. The main function of the plastic pipe vacuum calibration tank is to shape the molten pipe blank extruded from the die into a pipe under the conditions of vacuum and spray, and then cool it. The plastic pipe vacuum calibration tank is divided into two sections: the front section is a vacuum and spray cooling section, and the rear section is a spray cooling section. The three-dimensional adjustment system ensures consistency with the extruder center.

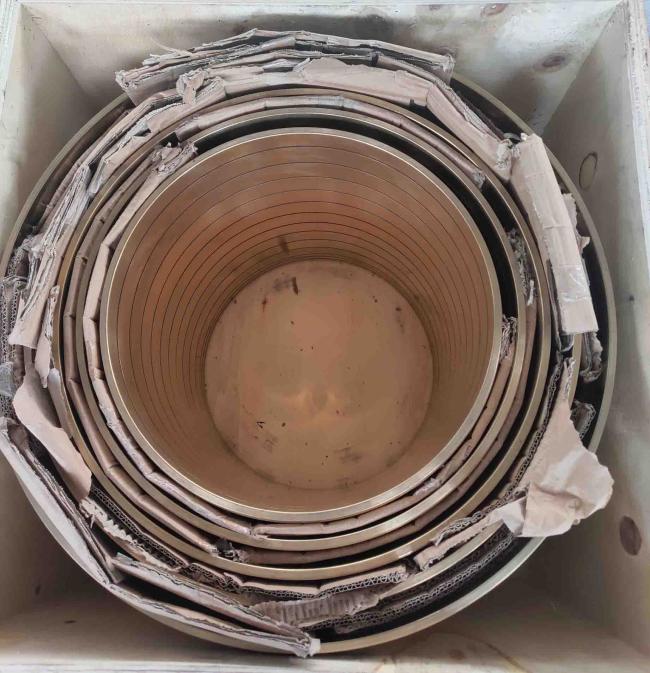

Sizing Sleeve
40-160mm Plastic PE Pipe Machine Equipment Details
| NO. | Items | Quantities | Remarks |
| 1 | Vacuum Feeder and Hopper with dryer | 1 set | 10KW heater for hopper, 3kw motor for feeder |
| 2 | SJ65/33 110KW single screw extruder | 1 set | 350kg/hr, barrel heating power 5 zones totally 20KW |
| 3 | SJ25/28 4KW | 1 set | as coextruder for color strip on pipe 10kgs/hr |
| 4 | Pipe die head 40-160mm | 1 set |
portable framework, heating coil power 22.6KW |
| 5 | Vacuum calibration chamber | 1 set | 4 vacuum pumps, 2 water tanks,rail and moving system, sus304 water pipe 4 rows inside tank |
| 6 | Spray cooling tank | 1 set | 2 vacuum pumps, 2 water tanks ,4 rows water pipe inside tank |
| 7 | Haul off Unit | 1 set | 4 claws tractor with length meter |
| 8 | Planetary cutter | 1 set | PLC control for cut of fixed length of pipe |
| 9 | Stacker | 1 set | 5meters or customized |
FAQ
Q1:What's your warranty policy?
A1:We will guarantee the machine for 12 months since the date of shipment(which means leaving from Seller's factory) or the Seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.
Q2:What's your minimum order quantity?
A2: Min order quantity:1 set or by negotiate with each other.
Q3:What package do you use for the product?
A3: covered with plastic film, then packed in wooden box.
Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.
Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technician will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.
Q7:What are your terms of payment?
A7:We accept T/T, L/C.
Q8:What's your contact way?
A8:Kevin +86 138 6226 3862
Q9:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A9:Please click the "send" at the bottom of this page or contact our sales on Trade Manage online.
