3MM PVC ASA Plastic 75kw Corrugated Roof Sheet Making Machine

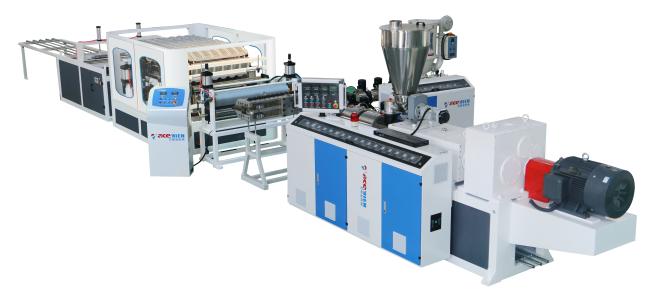

High efficiency PVC+ASA plastic Corrugated roof sheet making machine
Machine name:
High efficiency PVC+ASA plastic Corrugated roof sheet making machine
Finshed product:
Plastic roofing making machine,Plastic corrugated roofing,1mm-3mm thickness,customized length
Product application:

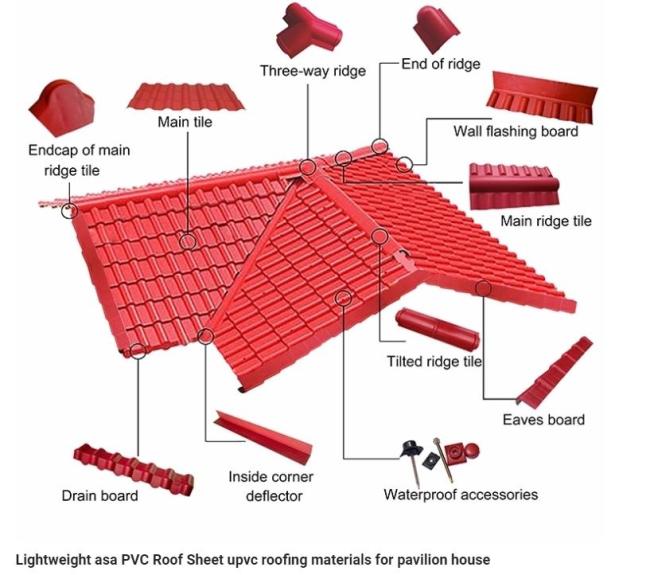

Plastic PVC roof making machine used for Roofing, can be used for factories, warehouses, sheds, farmers market, hoardings, walls, temporary shops, sheds and other very suitable insulation.
Roof tile making machine is manufactured based on 2 or 3 or 4 layer co-extrusion technology by one-time processing,which well combine the different functions of raw materials(PVC+ASA) so that the tile can be anti-corrosive, fire retardant, eco-friendly, more durable, tenacious, easy to install and move, light weight as well as cost effective in installation (as less steel and less overlap), as per the efficiency and benefits it provides
Product info:
| Material |
Surface layer:ASA (Granule) Bottom layer:PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin |
| Cost |
Surface layer:USD 3400/T, Need 100g/㎡ Bottom layer:USD 300-USD 500/T |
| Weight | 3-5kg/square meter |
| Thickness | 1.5mm,2mm,2.5mm,3mm(adjustable) |
| Profit |
Product cost USD 1.7-USD 3/㎡ Normally in market sell at USD 2.7-5 / ㎡ even more Profit:at least USD1-2/㎡ |
| Main Machine List | |||
| No. | Name | Qty. | Remark |
| 1 | Screw loader for SJZ 80/156 extruder | 1 | |
| 2 | SJZ 80/156 conical twin-screw extruder | 1 | For the PVC layer |
| 3 | Vacuum loader for SJ65 extruder | 1 | |
| 4 | drying hopper for SJ65 extruder | 1 | |
| 5 | SJ65/30 single screw extruder | 1 | |
| 6 | SJ50/30 single screw extruder(ASA) | ||
| 7 | 1300mm Mould unit | 1 | Product width:1050mm |
| 8 | Distributor | 1 | |
| 9 | Cutter | 1 | |
| 10 | Stacker | 1 | |
Function:make roof tile.
Type 1: make corrugated tile forming machine with a length counter.
type 2: make glazed tile forming machine witha wave counter.
