Ice Cream Cone Maker Equipment , Complete Production Line 3.37 Kw 380V

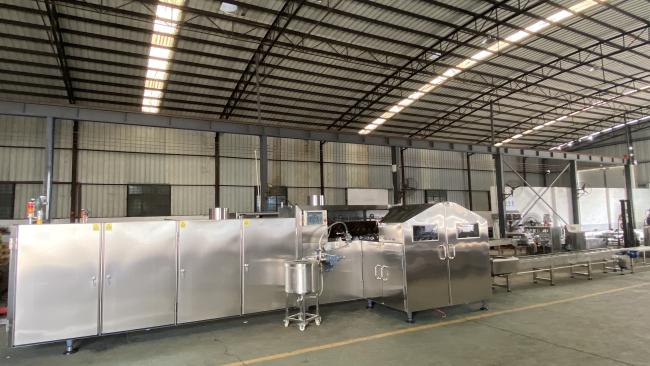

SD80 series tunnel type automatic sugar cone making machine is a kind of PLC control, high degree of automation, high production efficiency, stable performance of the production machinery

Features of  Ice Cream Cone Making Machine

1. The Factory Price Full Automatic Roll Sugar Cone Baking Machine Ice Cream Cone Making Machine is suitable for making flat mouth sugar cone length less than 135mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

2. The Full Automatic Ice Cream Cone Making Machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric  ignition, oven temperature electronic display. The Ice Cream Cone Supplier producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.

Model:SD80-45x2

Voltage: 380V

Total Power: 3.37 kw

LPG consumption: 8-10kg/h

Capacity: 4000-5000 pcs/h

Dimension: L8.7xW2.1xH1.8m

Net weight: 5000kg

Description of the Electrical accessories

Electrical accessories: Schneider

Controller: Schneider

Working principle:

Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.

Working Process of biscuit cone machine
Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
The size of the finished cones is within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.
