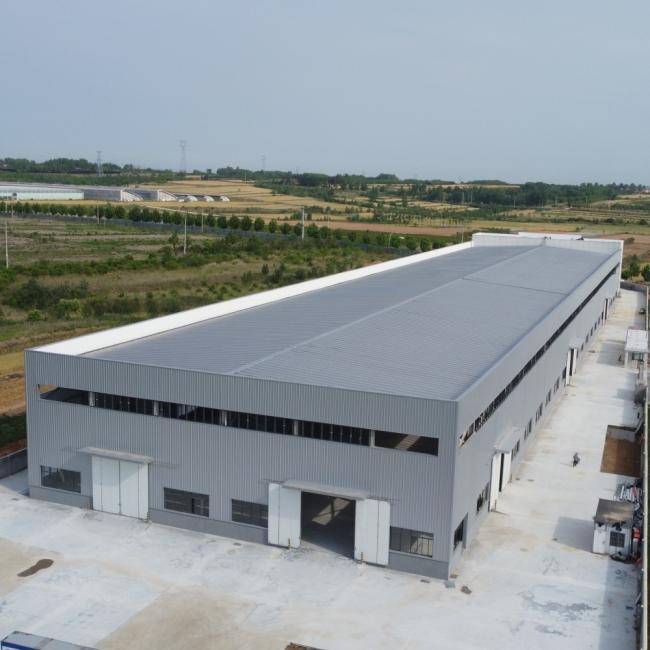

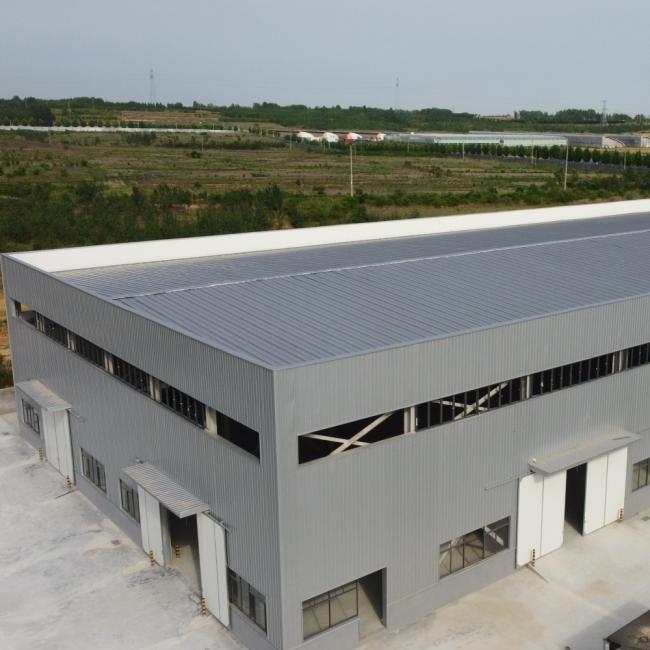

Steel Structure Warehouse Prefabricated with Customized Overhead Crane
The Steel Structure Warehouse Prefabricated with Customized Overhead Crane is a high-performance industrial building solution designed for manufacturing plants, fabrication workshops, logistics centers, and heavy-duty storage facilities. By integrating a customized overhead crane system into the steel structure design, the building provides efficient material handling, increased productivity, and optimized workflow for industrial operations.
Constructed with high-strength structural steel and precision-fabricated components, the warehouse offers exceptional load-bearing capacity, long-term durability, and rapid installation. Compared with conventional concrete buildings, prefabricated steel warehouses require less construction time, reduce foundation costs, and provide greater flexibility for future expansion or layout modifications.
The building features a large clear-span portal frame that minimizes interior columns, creating an open workspace suitable for material storage, equipment installation, and crane operation. Depending on production requirements, the overhead crane system can be customized for different lifting capacities, crane spans, runway beam configurations, and operating heights. The structural frame is specifically engineered to accommodate the additional loads generated by crane operation while ensuring safety, stability, and reliable long-term performance.
Building dimensions, eave height, bay spacing, crane rail elevation, and door locations can all be tailored to suit individual production processes and equipment layouts. The warehouse can also incorporate office areas, mezzanine floors, maintenance rooms, or storage spaces to create a comprehensive industrial facility that combines manufacturing, administration, and logistics under one roof.
Each project is engineered according to local wind loads, snow loads, and seismic requirements, ensuring compliance with applicable design standards and site conditions. Structural calculations are optimized to achieve an economical steel consumption while maintaining excellent structural integrity and operational safety.
| Name | Heavy Duty Steel Structure Warehouse for Cement Plant Storage |
| Structure Type | portal frame structure, truss frame, flat frame structure |
| Length | 20m~200m |
| Width | 20m~50m |
| Eave Height | 4m~30m |
| Roof Slope | Recommend 5~15% according to site |
| Steel beam & Column | H-section steel, truss steel, steel tube, latticed steel, cross-section steel |
| Roof & Wall cladding | Galvanized steel cladding sheet, sandwich panel (view different panel cores below) |
| Door | Sliding door, folding door, roller shutter door, etc. |
| Window | Aluminum alloy frame window, louvers, etc. |
| Anti-corrosion for steel structure | Alkyd painting, Epoxy painting or Hot-dip galvanized |
To meet different environmental and operational requirements, various roof and wall systems are available, including single-layer steel sheets, EPS sandwich panels, rock wool sandwich panels, PU/PIR insulated panels, and glass wool insulation systems. Customers may also choose skylights, ridge ventilators, wall louvers, smoke vents, canopies, and translucent roof panels to improve natural lighting, ventilation, and indoor working conditions.
For long-term durability, the steel structure can be protected with alkyd paint, epoxy coating, or hot-dip galvanizing depending on the project location and service environment. These surface treatment options provide reliable corrosion resistance while minimizing maintenance costs throughout the building's service life.
Our experienced engineering team provides comprehensive project support, including structural design, shop drawings, fabrication, quality inspection, packaging, shipping, and installation guidance. Whether used as a logistics warehouse with office space, a manufacturing facility with a customer showroom, or a commercial storage center with administrative offices, the Steel Structure Warehouse Prefabricated with Customized Overhead Crane offers an efficient, flexible, and cost-effective solution for modern industrial and commercial developments.
| Service | Description |
|---|---|
| Steel Structure Fabrication | Cutting, welding, painting, hot-dip galvanizing, and pre-assembly of structural steel components. |
| Design & Engineering | Design, engineering, fabrication, and installation support for prefabricated steel buildings. |
| Shop Drawing Services | Detailed fabrication drawings and shop drawings based on client-provided architectural and structural plans. |
| Engineering Consulting | Structural optimization, technical consultation, and project support from design to construction. |
| Item | Steel Sheet | EPS Panel | Rock Wool Panel | PU/PIR Panel | Glass Fiber + PVC/Aluminum Foil |
|---|---|---|---|---|---|
| Initial Cost | Low | Low-Medium | Medium | High | Low |
| Thermal Performance | Limited | Good | Good | Excellent | Good |
| Fire Resistance | Non-combustible | Limited | Non-combustible | Good (PIR) / Moderate (PU) | Non-combustible(Glass Fiber Only) |
| Sound Absorption | Limited | Moderate | Good | Good | Moderate |
| Moisture Resistance | Excellent | Good | Moderate | Excellent | Moderate |
| Recommended Application | Warehouses, sheds, equipment shelters in mild climates | Industrial buildings requiring economical insulation | Factories, warehouses, workshops with high fire protection requirements | Cold storage, food processing plants, energy-efficient industrial buildings | Large-span steel buildings requiring economical thermal insulation |
| Inspection Item | Purpose | Details |
|---|---|---|
| Material | Verify raw material quality |
|
| Welding | Ensure weld integrity |
|
| Coating | Check paint thickness |
|
Magnetic Particle Testing
All steel components are bundled and secured on steel pallets for safe handling and transportation.
The pallets are loaded into containers using gantry cranes and forklifts, ensuring efficient and damage-free loading.
