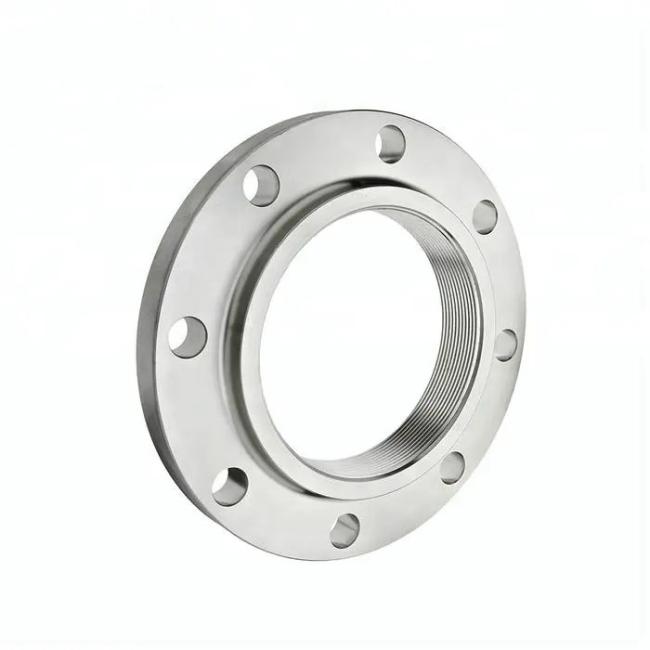

ANSI B16.5 Class 150/300/600/900/1500/2500 Threaded Flange Alloy Steel Zinc Plating Flange
ANSI B16.5 Class 150/300/600/900/1500/2500 Threaded Flange Alloy Steel Zinc Plating Flange
| Product Name | Threaded Flange | |
| Face Finish | RF,FF,RTJ,TF,GF | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN 2631 2573 2527 2565 2641 | |
| GOST | GOST 12820-80,GOST 12821-80,Gost Blind | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210 | |
| BS | BS4504,BS10 Table D/E | |
| UNI | UNI 2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67 | |
| SABS | SABS 1123 | |
| Material | ANSI | CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | CS SS400,SF440,SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| UNI | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| SABS | CSRST37.2;S235JR;Q235;SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| UNI | PN6,PN10,PN16,PN25,PN40 | |
| SABS | 600KPA,1000,1600,2500,4000 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN10-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| UNI | DN10-DN2000 | |
| SABS | DN10-DN600 | |
| Coating | varnish, yellow paint, anti-rust oil, galvanizing etc | |
| Usage | Used for the connection of all kinds of pipeline, to convey the water, steam, air, gas and oil | |
1. 20 + years of production experience at your service.
2. The fastest delivery
3. The lowest price
4. Most comprehensive standards and materials for your choice.
5. 100% export.
6. Our products export to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
Packaging Details: Pallet/Wooden Case or as per your Specification
Delivery Detail: Shipped in 30 days after payment
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
