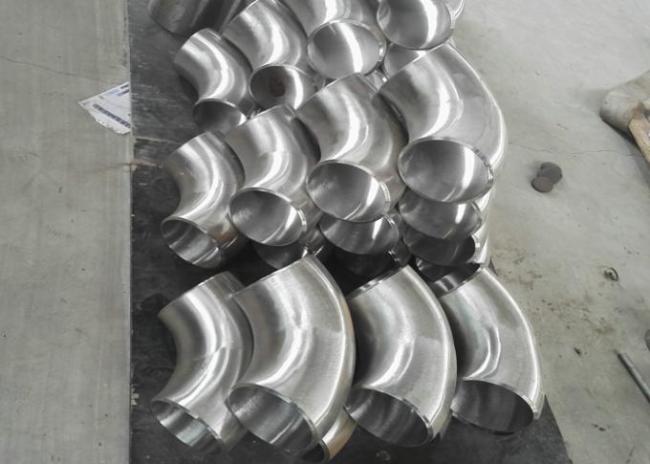

ASME B16.9 Customized Nickel Alloy Pipe Fittings Round Shape 90 Degree Elbow
This is a nickel-molybdenum alloy that is particularly suited to handling reducing acids at high concentrations and temperatures.
It may be used in the as-welded condition since it is not susceptible to grain-boundary carbide precipitation following welding.
The alloy should not be used in the presence of oxidizing media.
| Product Name | 90° Seamless Elbow |
| Size | 1/2’’~10’’(Seamless);12’’~72’’(Welded) |
| Thickness | Sch5S~Sch160XXS |
| Manufacture Standard: |
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90, GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
| Material |
Alloy B-2 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Chemical Properties
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N |
| Alloy B-2 | 0.02 | 0.10 | 1.00 | 0.04 | 0.03 | 1.00 | 26.0-30.0 | Bal | Bal |
Mechanical Properties
| Density | Melting Point |
| 9.22 g/cm3 | 1330-1380℃ |
Application
This alloy finds its main uses in the chemical manufacturing industries, particularly in the production of acetic acid, herbicides, insecticides, ethylene glycol and ethyl benzene. It is also used in the production of high-octane gasoline.
WELDABILITY
This alloy may be welded by the gas-metal-arc, gas-tungsten-arc and shielded-metal-arc processes. Parts may normally be used in the as-welded condition, but a post-weld anneal will result in optimum corrosion resistance.
Other products
we can provide steel butt weld pipe fittings such as elbow, tee, reducer,cap,bend and so on. Good quality,
competitive price and excellence service are your best choice.
Delivery& Packing:
Packaging: In wooded cases , pallets or according to clients' requirements
Shipping: Tianjin port, Shanghai port and the other main ports in China
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
