Alloy 600 ASTM/UNSP N06600 Barred Tee OD 8 " WT 3mm Environmental
Alloy 600 ASTM/UNSP N06600 Barred Tee OD 8 " WT 3mm
| Fence Tee PIPE FITTINGS DETAILS | ||
| MATERIAL | Carbon Steel : | |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, | ||
| DIN St37, St45.8, St52.4,St.35.8,St.35.8. | ||
| Stainless Steel: | ||
| 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti | ||
| 00Cr17Ni14Mo2 304 304L 316 316L | ||
| Alloy Steel: | ||
| 16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, | ||
| A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 | ||
| STANDARD | ASTM / JIS / DIN / BS / GB/GOST | |
| MODEL | 1.Tee(Straight ) | |
| 2.Tee(Reducing) | ||
| TYPE | Seam Or Seamless | |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize | |
| WALL THICKNESS | SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, | |
| SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM | ||
| SIZE | 1/2"-48"(Dn15-Dn1200) | |
| CONNECTION | Welding | |
| SHAPE | Equal, Reducing | |
| CERTIFICATE | ISO9001 SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| APPLICATION | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc | |
| RELATED PRODUCTS | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Malleable iron pipe fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Sanitary fittings, etc,. | 12. Grooved fittings | |
| Customers’ drawings or designs are available. | ||
| PACKAGE | 1> 1/2" - 2" in cartons. | |
| 2>Above 2" in wooden cases. | ||
| Big size is workable by pallets. | ||
| DELIVERY DETAILS | According to the quantities and specifications of each order. | |
| Normal delivery time is from 15 to 30working days after receiving the deposit. | ||
hollow tube or shel

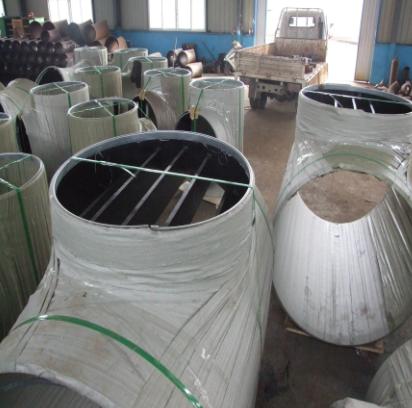

Barred Tee
A barred tee is a tee or any fitting with a branch used in pipelines that is pigged and has a restriction bar welded internally preventing the pig from traveling down a branch connection.
Barred tee is a pipe fitting that is used in a pig launcher or receiver system in a piping system to ensure the pig could pass the branch ely
UNS n06600 alloy has corrosion resistance to various corrosive media. The composition of chromium makes the alloy have better corrosion resistance than nickel 99.2 (alloy 200) and nickel 99.2 (alloy 201, low carbon) under oxidation conditions. At the same time, the high nickel content makes the alloy have good corrosion resistance under reducing conditions and alkaline solution, and can effectively prevent chloride iron stress corrosion cracking. Alloy 600 has good corrosion resistance in organic acids such as acetic acid, acetic acid, formic acid and stearic acid, and medium corrosion resistance in inorganic acids. High purity water used in primary and secondary recycling in nuclear reactors has excellent corrosion resistance. The outstanding performance of 600 is that it can resist the corrosion of dry chlorine and hydrogen chloride, and the application temperature is 650 ℃. At high temperature, the alloys as annealed and solution treated have good anti-oxidation spalling properties and high strength in air
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
