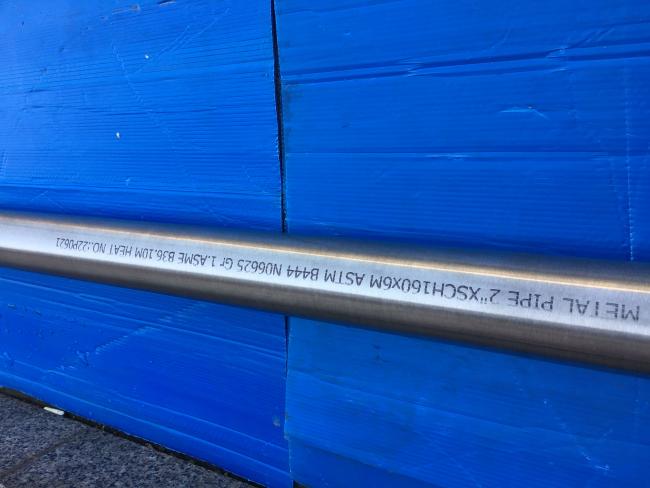

Hastelloy ASTM B444 N06625 Gr1 Seamless Pipe 2 Inch Sch40s Alloy 825 C276 C22 Nickel Alloy Pipe
Hastelloy ASTM B444 N06625 Gr.1 SMLS Pipe 2'' Sch40s Alloy 825 C276 C22 nickel alloy pipe
Features
than that of other solid solution strengthened alloys. Inconel 625 has good oxidation resistance at temperatures up to 980℃ and shows good resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion resistant alloys.
|
Chemical Position(%)
|
|||||||
|
Model
|
Ni
|
Cr
|
AI
|
C
|
Mn
|
Si
|
Fe
|
|
inconel 600
|
≥72
|
14–17
|
|
≤0.15
|
≤1.0
|
≤0.50
|
6–10
|
|
inconel 617
|
44.2–61
|
20–24
|
0.8–1.5
|
0.05–0.15
|
≤0.50
|
≤0.50
|
≤3.0
|
|
inconel 625
|
≥58
|
20–23
|
≤0.4
|
≤0.1
|
≤0.50
|
≤0.50
|
≤5.0
|
|
inconel 690
|
≥58
|
27–31
|
|
≤0.05
|
≤0.50
|
≤0.50
|
7–11
|
|
Nuclear grade 690
|
≥58
|
28–31
|
|
≤0.04
|
≤0.50
|
≤0.35
|
7–11
|
|
inconel 718
|
50–55
|
17–21
|
0.2–0.8
|
≤0.08
|
≤0.35
|
≤0.35
|
–
|
|
inconel X-750
|
≥70
|
14–17
|
0.4–1.0
|
≤0.08
|
≤1.0
|
≤0.50
|
5.0–9.0
|
ASTM/ASME Standards
ASTM A 213/A 213M ASME SA213/SA213M Specification for Seamless Ferric and Austenitic Alloy-Steel Boiler, Su[perheater, and Heat-Exchanger Tubes
ASTM A 249/A 249M Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser tubes
ASTM A268/A268M, ASME SA268/SA268M Specification Seamless and welded ferritic and martensitic stainless steel tubing for general service
ASTM A269/A269M, ASME SA269/SA269M Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A 270 Specification for Seamless and Welded Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing
Application
Nickel alloy pipe/plate/bar is used in Chemical processing, Liquid fuel rocket motor components, Pollution-control equipment , Cryogenic storage tanks, Valves, fasteners, springs, mandrels, tubing hangers,Well head completion equipment and blow out preventers (BOP’s) and Gas turbine engine parts
The softened and annealed low-carbon alloy 625 is widely used in the chemical process industry. Its good corrosion resistance and high strength enable it to be used as a thinner structural part. Alloy 625 can be used in situations where it is exposed to seawater and subjected to high mechanical stress. Typical application areas:
* Components of organic chemical processes containing chlorides, especially where acid chloride catalysts are used
* Used in the manufacture of digesters and bleaching tanks in the pulp and paper industry
* Absorption tower, reheater, flue gas inlet baffle, fan (wet), stirrer, baffle and flue in the flue gas desulfurization system
* Used to manufacture equipment and components used in acid gas environments
* Acetic acid and acetic anhydride reaction generator
* Sulfuric acid condenser
