Hydraulic Oil Cold Press Machine For Sesame Olive High Pressure Oil Pressers
Hydraulic Oil Cold Press Machine For Sesame Olive High Pressure Oil Pressers
Company Profile:
1. Henan Lewin Industrial Development Co., Ltd. is a comprehensive production and operation enterprise that integrates production, research and development, sales, and export.
2. The main products are hydraulic oil presses, spiral oil presses, oil press related supporting equipment, and other grain and oil machinery.
3. The company is committed to the research and development and sales of grain and oil equipment for more than 20 years, backed by scientific research institutes and universities, guided by the idea of innovation and breakthrough leading the trend, introducing and absorbing advanced technologies from both domestic and foreign countries, and wholeheartedly developing.
4. It has a complete production capacity of oil presses, independent intellectual property rights, multiple qualification certificates, and agricultural machinery promotion and appraisal products from the Ministry of Agriculture
5. The enterprise has also passed the "ISOO9001 Quality System Certification", with products covering the world, excellent product quality, and a comprehensive after-sales service system, and has received unanimous praise from users from various countries
Workshop Display:
Parameters of Hydraulic Oil Presser:
(different capacity models for your choice)
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
| cylinder diameter(mm) | 185 | 230 | 230 | 250 | 270 | 300 | 335 | 355 |
| Hydraulic cylinder diameter | 150mm | 190mm | 190mm | 200mm | 220mm | 250mm | 270mm | 300mm |
| Height of hopper | 270mm | 370mm | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm |
| Work pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Column Diameter | 80mm | 90mm | 90mm | 100mm | 105mm | 120mm | 150mm | 150mm |
| Cake Diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Single Phase(Kw) | 2.2 | 2.2 | 2.2 | 2.2 | 4 | / | / | / |
| Three phases(Kw) | 1.1 | 1.1 | 1.1 | 1.1 | 2 .2 | 2.2 | 2.2 | 2.2 |
|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Batch working time (minutes) | 8--10 | 8--10 | 8--10 | 8--10 | 8--10 | 8--15 | 8--15 | 8--15 |
| Weight(Kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
| Dimension(mm) | 600*800*1150 | 670*950*1460 | 670*950*1560 | 710*950*1560 | 750*1010*1640 | 1000*1100*1660 | 1100*1240*1730 | 1160*1200*1810 |
| Cylinder Volume | 7.2L | 15.3L | 18.2L | 21.6L | 25.1L | 31L | 38.7L | 43.5L |
Details of Hydraulic Oil Press Machine:
1. The pressure of our hydraulic oil pressers are 60 MPA, higher than other machines (the normal is 45Mpa to 55Mpa), provides higher oil yield.
2. Internal temperature control parts to solve the problem of low oil yield in winter(the normal machine's oil yield will be lower in winter).
3. The precision instrument panel monitors the temperature and pressure at any time, and operate simply.
4. The steel used for manufacturing machines is aerospace steel, which is hard enough to support high working pressure and provide a safe working environment.

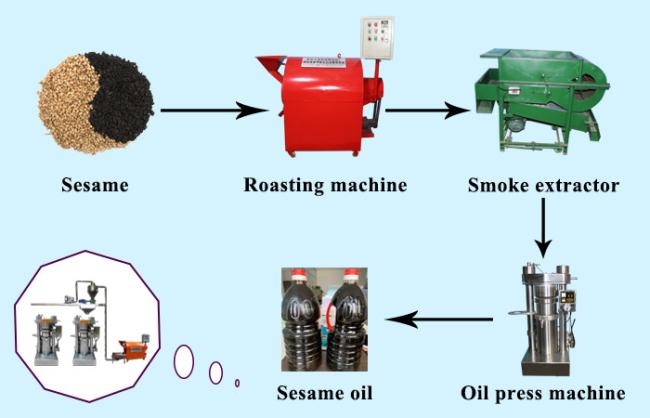

Production Line Design:
We not only provide oil presses, but also can be equipped with production lines, such as the following production lines:
Any interest about our oil press machine, please contact us direcly!
