I. Production description of 380V cooking oil making machine

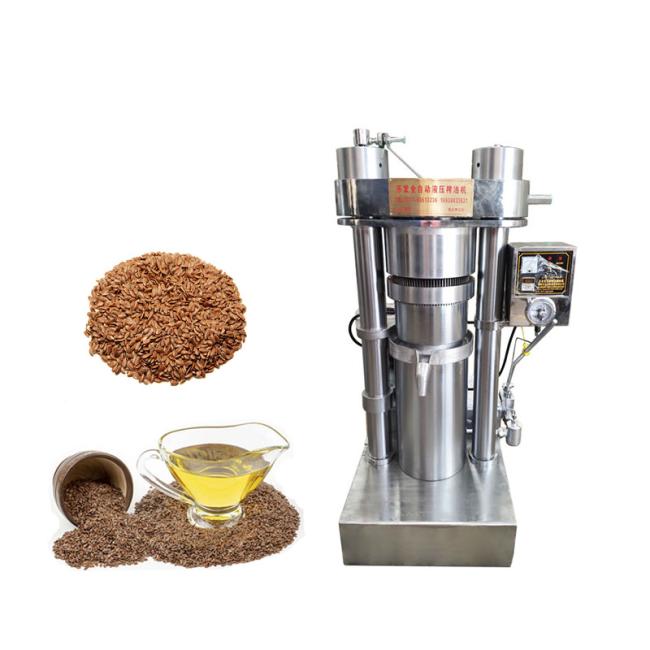

Our 6YY-230A cooking oil making machine:
1. This 380v hydraulic cooking oil machine adopts automatic control system, hydaulic pressure control system and temperature control system to achive automatic operation.
2. This 380v hydraulic cooking oil making machine can work with many kinds of oil seeds well.
3. This 380v hydraulic cooking oil making machine can work continuously for 24 hours, long time use life.
4. The max working pressure of hydraulic cooking oil making machine is 60Mpa, this pressure is higher compared with other machines, so it can make sure high oil yield by lewin hydraulic cooking oil making machine.
Appliction range of 380v hydraulic cooking oil making machine
This 380v hydraulic cooking oil making machine can press sesame, walnut, almond, sesame, coconut, avocado, walnut and etc material.
The oil rate of different material by lewin hydraulic cooking oil making machine:
| Oil seeds | Oil rate |
| Sesame | 35%-50% |
| Avocado | 15%-22% |
| Walnut | 35%-45% |
| Almond | 35%-45% |
Parameter of hydraulic cooking oil making machine:
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|---|---|---|---|---|---|---|---|
|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
|
Power (3 /single phase) |
1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
|
Package Size(m) |
0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
|
Capacity (Kg/24h) |
190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
II. Advantage of 380v cooking oil making machine
1. 60Mpa hydraulic system, this cooking oil making machine use 60Mpa max working pressure, Get as much oil as possible while maintaining safe pressure.
2. Key parts- Hydraulic system, 380v cooking oil making machine use 2 pump to make sure high work efficiency.
3. Oil line of lewin Hydraulic 380v Cooking Oil Making machine is thinner, only 0.36mm, to help you get pure oil directly.
4. Lewin Hydraulic cooking oil making machine adopts pure physical pressing method, if you have request for low temperature, you can keep heating switch off, pressing temperature will be same as room temperature.
III. Packing & Delivery Of Lewin Hydraulic cooking oil making machine
Packing of hydrualic cooking oil making machine:
1. Plastic film for cooking oil making machine.
2. Wooden case package for cooking oil making machine.
Delivery of hydraulic cooking oil making machine:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
