High Efficiency Olive Oil Press Machine / Cold Press Oil Extraction Machine
olive oil hydraulic press extraction with free CE certification
Describe
Advantage:

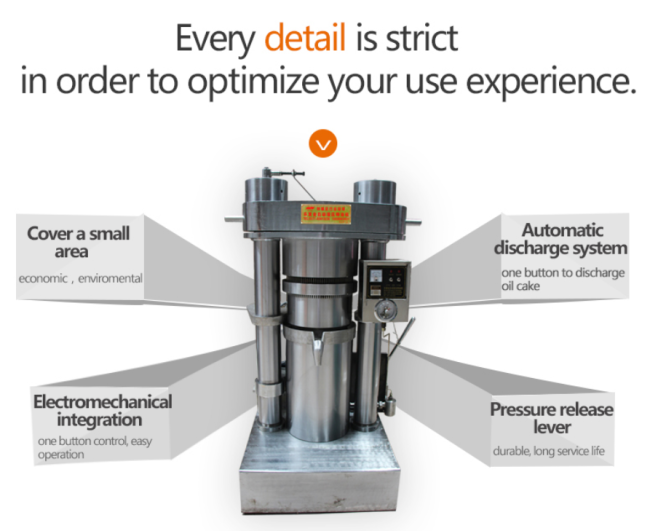

1.It can make sure your safety:
1). Motor cover: It can protect the motor service life.
2). Internal temperature control parts: It can release the pressure automatically when the working pressure higher than 60Mpa.
3). Large screw: This part can protect the user and machine safety.
4). Pressure release valve: It will release the pressure when over the working pressure.
2. High oil yield reason:
1). Internal temperature control parts can solve the problem of low oil yield in winter.
2). The oil line is precise, it will filter the residue so can get more oil.
3). Working pressure is 60Mpa is higher than others, it can press raw material cleaner .
4). Solid piston can provide stronger power to press raw material.
This machine is reasonable in design, advanced in performance and beautiful in appearance. It can press a variety of raw kinds, including peanut, rapeseed , sunflower, soybean, flax, walnut and other oil craps.
Production Details:
1. This hydraulic oil press machine is the most advanced equipment and takes up less area. Its material mainly electroplate.
2. It is economic and environmental protection, stable and durable. This machine adopts automatic control system, hydraulic pressure control system and temperature control system.
3. It has high pressure, high yield oil and easy to operate. This machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 8-15 minutes. The oil is pure and fragrant.
4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
| Model | Pressure | Power(3phases) | Weight(kg) | Capacity(kg/batch) | Dimension(mm) |
| 6YY-185 | 60mpa | 1.1kw | 590 | 4 | 600*880*1150 |
| 6YY-230A | 60mpa | 1.1kw | 924 | 8.5 | 670*950*1460 |
| 6YY-230B | 60mpa | 1.1kw | 950 | 9.5 | 670*950*1560 |
| 6YY-250 | 60mpa | 1.1kw | 1070 | 11 | 710*950*1560 |
| 6YY-270 | 60mpa | 2.2kw | 1230 | 13.5 | 750*1010*1640 |
| 6YY-300 | 60mpa | 2.2kw | 1600 | 16 | 1000*1100*1660 |
| 6YY-335 | 60mpa | 2.2kw | 1750 | 20 | 1100*1240*1730 |
| 6YY-355 | 60mpa | 3.0kw | 2350 | 23 | 1160*1200*1810 |
The following picture show the referenced oil yield:
Our service
Service before sale
1.Professionally and patiently introduction, details pictures and working video to show machine.
2.Enter our factory to visit the machine and teach the machine operation method face to face.
3.Accept the raw materials sent by the customer for machine testing
Service on sale
1.Installation:quality and quantity guaranteed;completion of hand over.
2.Acceptance: acceptance test;accepted deliverables.
3.Technical training:on-site installation and products training;operation skills training;maintenance training;centralized technical training.
Service after sale
1.Technical service:long time technical service.
2.Accessories supplying:supplying spare parts with cost price.
3.24 hours online to solve any problem.
