60 Mpa Working Pressure Industrial Oil Press Machine Cold / Hot Pressing
60 Mpa working pressure cooking sesame mustard oil making machine
1. The 6YY-230A is our smaller machine, the production capacity is 8kg per time, the process time is 8-15 minutes.
2. The 6YY-230A model has a small footprint, it can be used in home and industry.
3. This machine is simple operation, one person can operate it, save time and labor.
4. Our 6YY-230A has widely used. It can cold and hot press sesame, sunflower, peanut, avocado, camellia, walnut, almond, cashew nut and so on.
5. This machine can cold press sesame to get more healthy and more delicious oil.
|
Model |
Working pressure |
Weight |
Power |
Voltage |
Oil cake diameter |
Oil rate |
|
6YY-230A |
60MPA |
924(kg) |
2.2(KW) |
380V |
230mm
|
98% |
The oil yiled reference of the oil press machine:
Our machine pressed oil:
Parameter of other model:
| Model | 6YY-185 | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|---|---|---|---|---|---|---|
|
Capacity (kg/batch) |
4 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
|
Power (3 /single phase) |
1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
|
Package Size(m) |
0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
|
Capacity (Kg/24h) |
190-260 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |

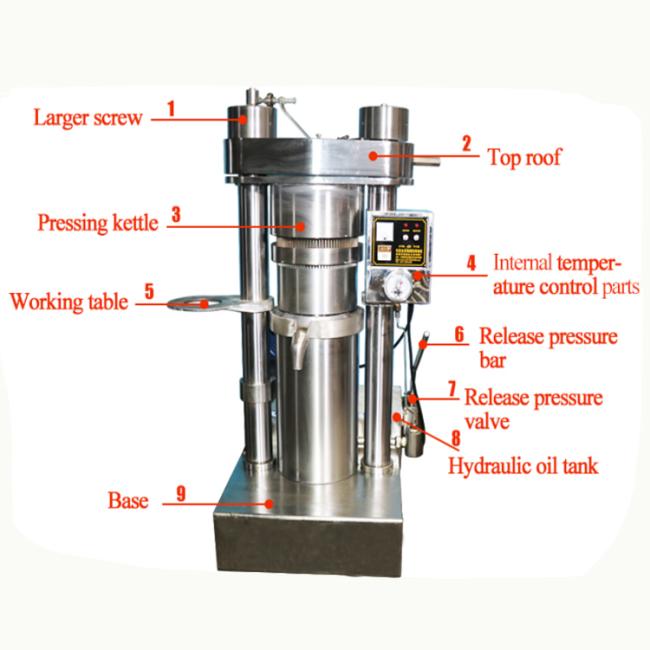

Structure of our machine:
Operation step:
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
1. Pre-sale service:
We offer different solution for different request and material.
Factory view accepted.
Test machine accepted.
7x24 hours online service.
2. After sale service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
