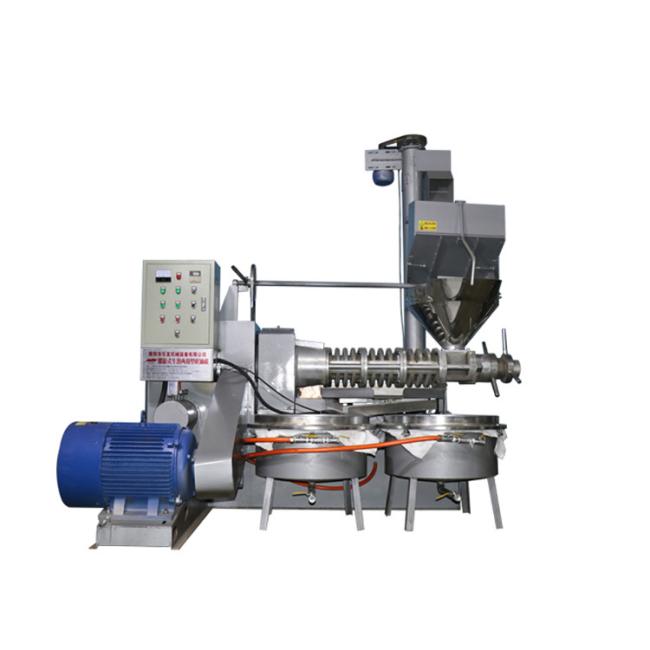

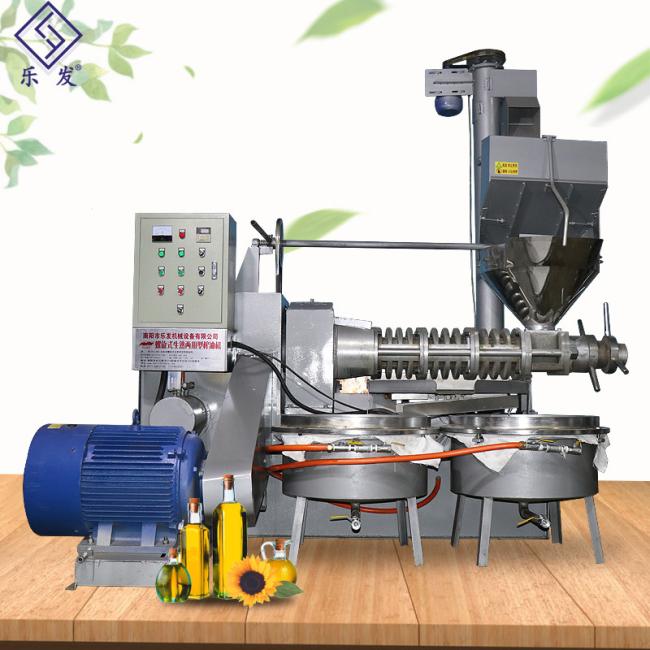

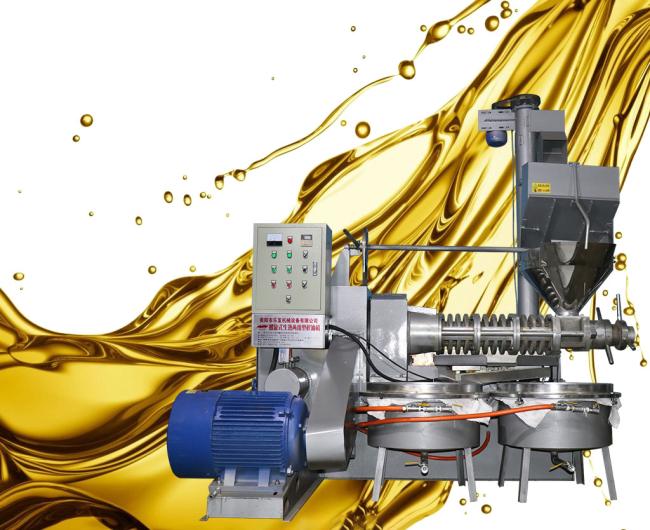

6YL-180 Sprail Screw Oil Press Machine Mini Oil Production Line For Peanut
6YL-180 Sprail oil pressing machine mini oil production line for peanut
Production description
working principle:
When oil press is operating, prepared material enters the chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed. Under the high pressure condition in the chamber, friction between material and screw, between material and chamber will be created, which also creates friction and relative movement among material particles.
On the other hand, root diameter of the pressing screw varies larger from one end to the other. Hence, when rotating, it not only pushes particlesmoving forwards but turns them outwards as well.
Meanwhile, particles adjacent the screw will rotate along with screw's rotating, causing every particle inside the chamber to posses different speed.
Therefore, relative movement among particles creates heat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil's elasticity, resulting in high oil productivity.
1.the machine is YL-180, this is the main information.
2. According to your requirements, we can also customize for you
| Model | 6YL-180 |
| Weight | 1980kg |
| Vacuum Power | 2.2KW |
| Main Power | 37KW |
| Squeezer speed | 60-100 |
| Capacity (Kg/h) | 400-750 |
|
Dimension (mm) |
2700*2000*2700 |
This spiral oil making machine is suitble for the different oil seeds, peanut, soybean, rapeseed, sunflower seeds and other.

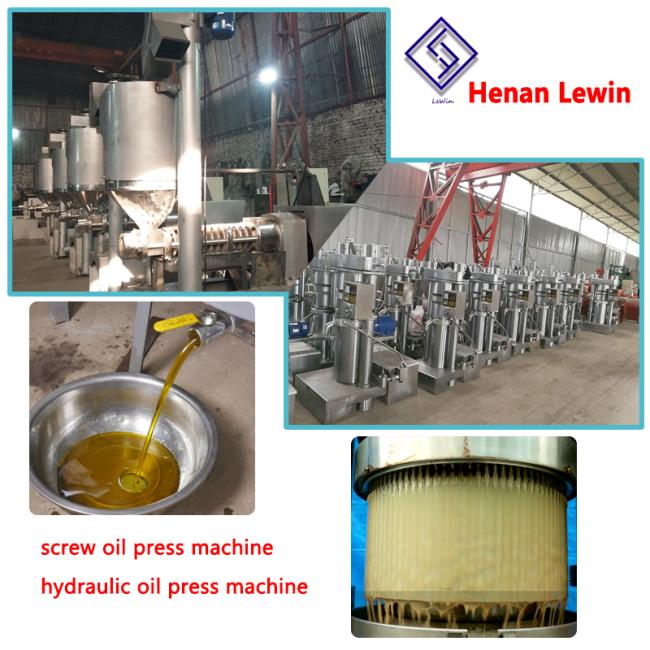

Warehouse dispaly
Henan Lewin Industrial Development Co.,Ltd, Focus on production and research and development of oil press equipment, with 20 years of production and sales experience, we have multiple warehouses, and factories, fully meet your needs for oil presses, if you are interested, please contact us
Packing & Delivery
Packing .
1.All the machine will be packed up with plastic film first.
2.Later,according to the machine's size and weight to make wooden or iron box, ,put machine in and fixed the box after loading(The box material can be made as your requirements).
3.The machine parts need to be put in a fixed container, must be fixed well ,lest collision or lost
Delivery :
Supplier can arrange the delivery by ship, truck, airplane .
If cutomer has own agent for delivery . so he can arrange the delivery by himself .
FAQ
1. What should I do, if I do not know how to use the model?
We have machine operation video and paper manual for you study before putting into usage.
2. Do I need assemble the machine when it reach to my place?
No need, the machine is installed before shipment.
3. How to choose the suitable model for my business?
Tell us your requirement for machine and our sales team will work with engineer to outline the best model for you.
5. Does your factory accept customization?
As a professional manufacturer, we can do almost any kind of customization.
