Full Automatic Oil Mill Machine Small Capacity Electric Oil Press Machine For Oil Seeds
Product Description
Full automatic oil mill machinery oil seeds samll capacity oil process machine
Hydraulci Oil Press Machine Main Features
Main Paramater:
1.we have different model for you reference.
2.We also can customized according to your requirments.
| Model |
Capacity (kg/batch) |
Weight(kg) |
Working pressure |
power(kw) |
Dimension (mm) |
oil cake diameter |
| YY-185 | 4 | 590 | 60MPa | 2.2/1.1 | 600*880*1150 | 180mm |
| YY230(A) | 8.5 | 924 | 60MPa | 2.2/1.1 | 670*950*1460 | 230mm |
| YY-230(B) | 9.5 | 950 | 60MPa | 2.2/1.1 | 670*950*1560 | 230mm |
| YY-250 | 11 | 1070 | 60MPa | 2.2/1.1 | 710*950*1560 | 250mm |
| YY-270 | 13.5 | 1230 | 60MPa | 4.0/2.2 | 750*1010*1640 | 270mm |
| YY-300 | 16 | 1600 | 60MPa | 4.0/2.2 | 1000*1100*1660 | 300mm |
| YY-335 | 20 | 1750 | 60MPa | 4.0/2.2 | 1100*1240*1730 | 355mm |
| YY-355 | 23 | 2350 | 60MPa | 5.0/3.0 | 1160*1200*1810 | 355mm |

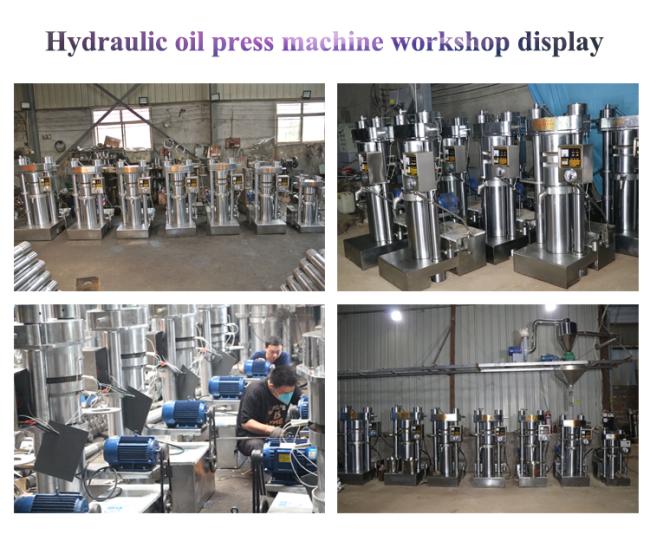

Detailed Images
Our Company:
Since 1998. Henan Lewin Industrial Development Co Ltd was found offcially registered under Henan companies.It is a firm which has the ability for manufacture,Research& Development.Our main products are hydraulic oil press machine,spiral oil press machine,the accessory equipment for the oil press machine and other machines
Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
Generally 7-10 working days after receipt the deposit
After-service:
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
