1230kg Weight Hydraulic Oil Making Machine For Oil Seeds Easy Operation
Price:
Negotiation
MOQ:
1 set
Delivery Time:
5-8 working day
Brand:
Lewin
Product Description
inca peanut high oil rate hydraulic oil making machine for oil seeds easy operation
Hydraulci Oil Press Machine Main Features
(1) It is very easy operation, no need more larbors
(2) The oil is squeezed once, the speed is fast, and the labor intensity is small(3) Electromechanical integrated design, small footprint and easy operation
Product Description
Main Paramater:
1.we have different model for you reference.
2.We also can customized according to your requirments.
| Model |
Capacity (kg/batch) |
Weight(kg) |
Working pressure |
power(kw) |
Dimension (mm) |
oil cake diameter |
| YY-185 | 4 | 590 | 60MPa | 2.2/1.1 | 600*880*1150 | 180mm |
| YY230(A) | 8.5 | 924 | 60MPa | 2.2/1.1 | 670*950*1460 | 230mm |
| YY-230(B) | 9.5 | 950 | 60MPa | 2.2/1.1 | 670*950*1560 | 230mm |
| YY-250 | 11 | 1070 | 60MPa | 2.2/1.1 | 710*950*1560 | 250mm |
| YY-270 | 13.5 | 1230 | 60MPa | 4.0/2.2 | 750*1010*1640 | 270mm |
| YY-300 | 16 | 1600 | 60MPa | 4.0/2.2 | 1000*1100*1660 | 300mm |
| YY-335 | 20 | 1750 | 60MPa | 4.0/2.2 | 1100*1240*1730 | 355mm |
| YY-355 | 23 | 2350 | 60MPa | 5.0/3.0 | 1160*1200*1810 | 355mm |

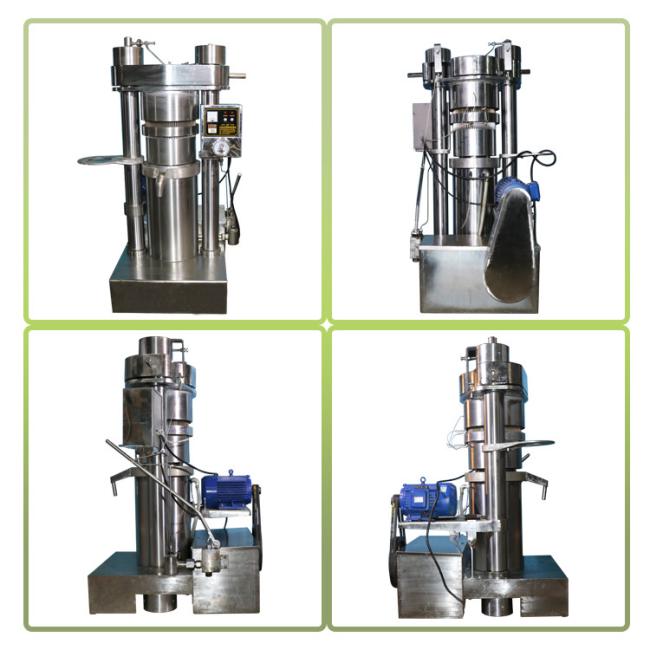

Detailed Images
This machine mainly has three major components:
1, the main part 2, hydraulic system 3, electrical system
It is now described as follows:

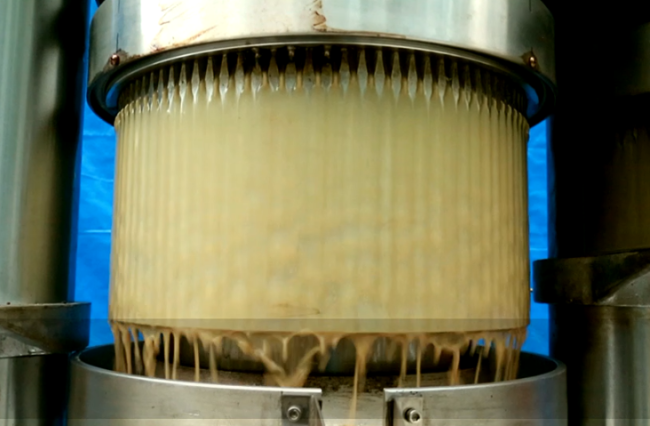

1, the main part:It consists of a base, a cylinder, a piston, an oil pan, a filling barrel, an upper top, a column, a nut and the like. It is the main body of the whole machine, in which the oil crop is placed in the filling barrel, and the force of the cylinder piston assembly is upward. Advance, squeeze the oil crop to make it oil, the oil flows out from the oil-filled joint of the filling barrel, and passes through the oil pan to the oil storage barrel.
2. Hydraulic system:This is the power source for the local press oil crop. It has drive shaft, turbine, worm, low pressure gear pump, high pressure pump, low pressure relief valve, ultra high pressure safety valve, pressure relief valve, precision seamless steel pipe, hydraulic pipe joint, etc. The composition of the parts. This machine adopts the world's advanced hydraulic pumping station. The South Korea three-piston optimized pumping station is faster than the domestic two-piston pump, with high pressure and high oil temperature. No cooling device is installed above the oil temperature of 65 degrees. continue working. This system is a guarantee of high oil yield of the machine.
3. Electrical system:The electrical system is the advanced place of the machine. All of them are controlled by automation, easy to operate, no special requirements for operators, easy to learn, especially suitable for farmers. The system uses advanced electrical appliances, automatic control system, is composed of motor, voltmeter, temperature control adjustment table, pressure gauge, power insurance and other components.

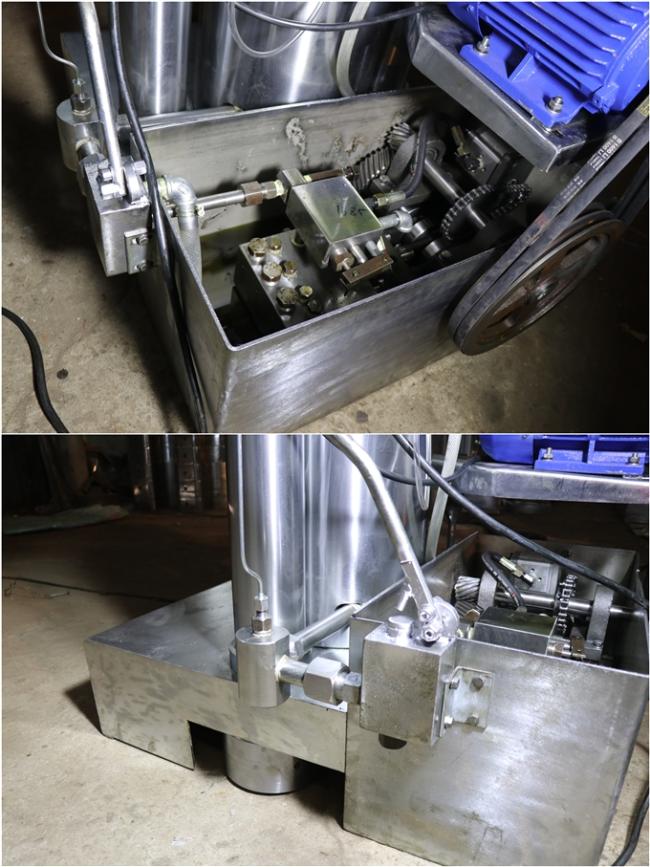

Hydraulic tank:
It is the core of the hydraulic oil press and is also the most important part.
This is a visit from our customers across the country to our company and factory.
Our Company:
Henan Lewin Industrial Development Co.,Ltd has strong processing capabilities and has machining equipment. With high-quality R&D and design personnel, the existing new product development, product design, production, sales, service, project cooperation, and other multi-sectoral institutions are a comprehensive and diversified enterprise.
Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
Generally 7-10 working days after receipt the deposit
After-service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will not provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will not provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
