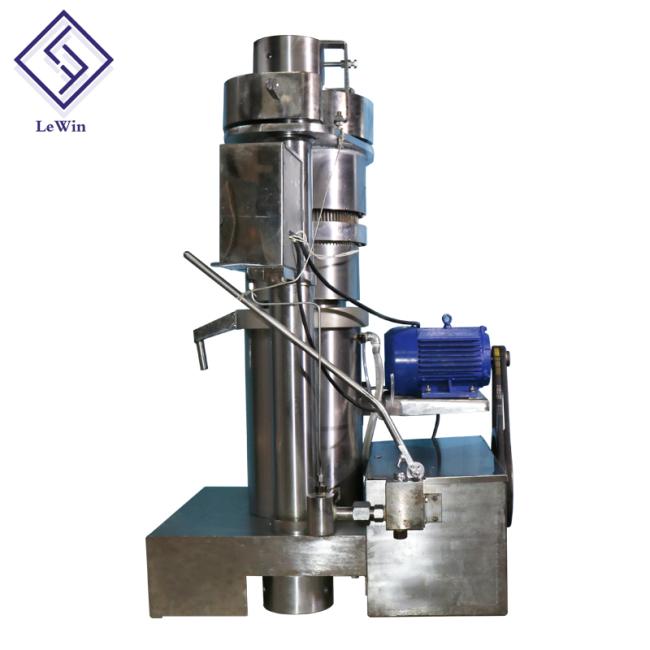

230A Olive Coconut Avocado Oil Extracting Machine With 98% Oil Rate
230A olive coconut avocado oil extracting machine with 98% oil rate
What can our machine do?
Our machine can making kinds of oil, like avocado oil, olive oil, coconut oil, sesame oil, sunflower oil, soybean oil, palm oil, mustard oil and etc.
How do our machines work?
This machine applied the our new supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety. High precision structure hydraulic box can over higher pressure. Separately and more perfect oil line technoloty applied, keep the press kettle strong enough and increase the oil rate.
Pressing oil method:
1. Our machine can hot press, the workflow is :
2. Our machine also can cold press oil, the cold pressed oil is healthier than hot pressed oil and refinery oil:
Where are our machines can be used?

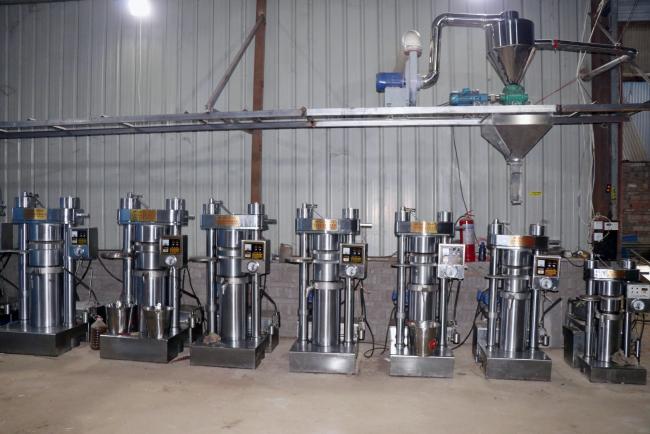

1. Pressing oil line:
If you are the oil manufacturer, you need a pressing oil line, our machine also is suitable for you.( We also can provide a whole line for you.)
2. Portable pressing oil:
Our machine is small, if you need pressing oil and sell it directly, our hydraulic machine also suitable for you. You can take it anywhere you want to go.

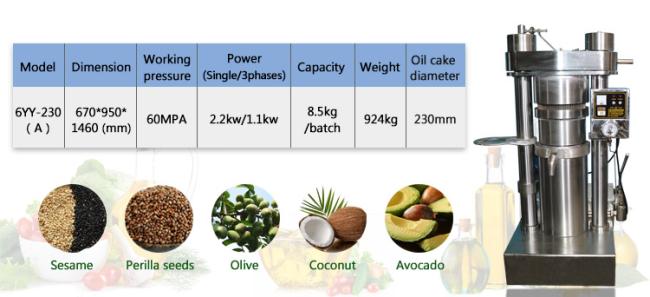

Parameter of our machines:
We also have other models for your choose, if you are interested anyone, please contact us freely.
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|---|---|---|---|---|---|---|---|
|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
|
Power (3 /single phase) |
1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
|
Package Size(m) |
0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
|
Capacity (Kg/24h) |
190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
Detail show
Safety assured of our machines:
Large screw
This part is strong, it can protect the user and machine safety. And our large screw needn't adjust the distance, easy to operate and more safe than other machines.
Pressure gauge with electric contact:
It can release the pressure automatically when the working pressure higher than 60Mpa.
It can protect the motor service life.
Control the suitable working pressure, over pressure will release automaticlly.
We also can provide:
Packing& Delivery
Packing:
1. We usually use the strong wooden case packing to make sure the machine safety on the way.
2. We also accept the customize.
Delivery:
We have our own delivery team to transger your products, it is more quickly and safe.
Delivery time: 7-10 days.
