Flaxseed Mustard Walnut Oil Expeller Machine Hydraulic Cold Pressing
Hydraulic cold pressing flaxseed mustard walnut oil expeller machine

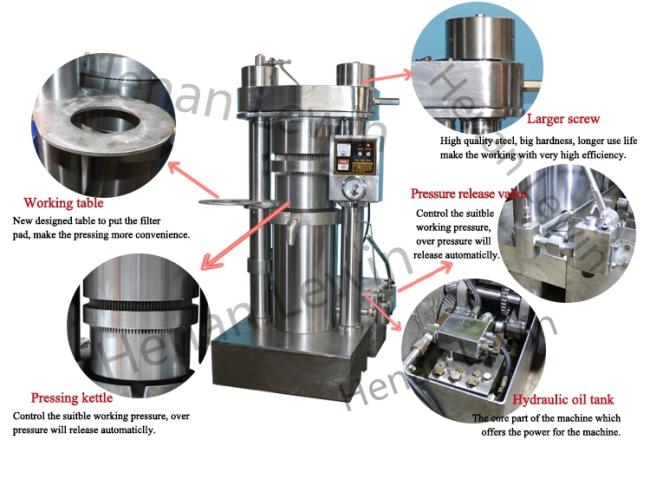

Our hydraulic cold pressing flaxseed mustard walnut oil expeller machine:
1. Our machine use the solid piston is stronger than other similar machines, it can press the oil seeds very clean.
2. Our machine maximum working pressure is 60Mpa, it can provide the high pressure to press the raw material.
3. Our machine use fully automatic technology, one person can operate 4-5 sets machine.
4. Our machine use alloy material, it is stronger than other machines to ensure the safety of this machine.
5. Our hydraulic tank offer the power for the machine.
Parameter:
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|---|---|---|---|---|---|---|---|
|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
|
Power (3 /single phase) |
1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
|
Package Size(m) |
0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
|
Capacity (Kg/24h) |
190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
Where can use our machine?
Our machine can cold and hot press kinds of seeds:
1. Mking oil line:
2. Movable pressing oil:
Working principle
This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.
Workflow( Hot pressing):
Cold press workflow:
Operation step:
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
